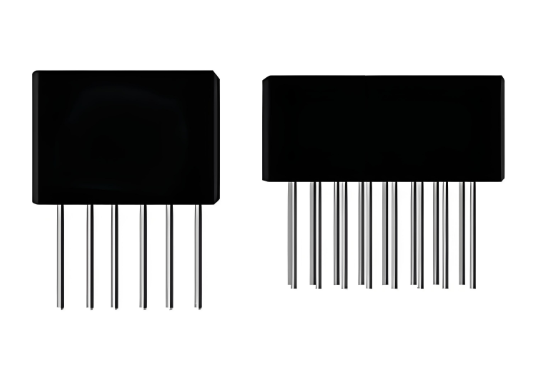

TYUPRN Series Precision Resistor Networks

Characteristics

High precision
Low TCR
Good tracking

Applications

Meters and instrument
Electronic weighing apparatus

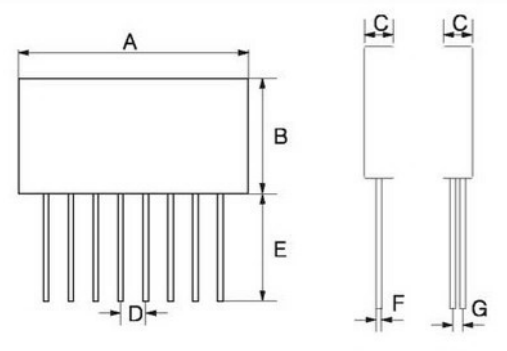

Size Type	A Size Range	B Size Range	C Size	D Size	E Size	F Size	G Size
SIL	10 - 50	9 - 12	4	≥2.54	10	0.60	-
DIL	10 - 50	9 - 12	≥6.5	≥2.54	10	0.60	≥2.54

Type	Power Rating at 70°C	Max Working Voltage (V)	Resistance Range	Absolute Tolerance	Relative Tolerance	TCR (10⁻⁶/K)	Relative TCR (10⁻⁶/K)
SIL	0.125	200	10R - 2MΩ	L(±0.01%), P(±0.02%) W(±0.05%), B(±0.1%) D(±0.5%), F(±1.0%)	L(±0.01%), P(±0.02%) W(±0.05%), B(±0.1%)	C7(±5), C6(±10) C5(±15), C4(±20) C3(±25), C2(±50)	C10(±2), C7(±5) C6(±10), C5(±15) C4(±20), C3(±25)
DIL	0.125	200	10R - 2MΩ	L(±0.01%), P(±0.02%) W(±0.05%), B(±0.1%) C(±0.25%), D(±0.5%) F(±1.0%)	L(±0.01%), P(±0.02%) W(±0.05%), B(±0.1%)	C7(±5), C6(±10) C5(±15), C4(±20) C3(±25), C2(±50)	C10(±2), C7(±5) C6(±10), C5(±15) C4(±20), C3(±25)

Test Item	Standards	Test Method
Short Time Overload	≤ ±(0.1% R + 0.01Ω)	2.5 - times rated voltage, maximum voltage not exceeding 2 - times limit voltage, 5s
Temperature Shock	≤ ±(0.1% R + 0.01Ω)	-55°C - 155°C, 5 cycles, 0.5h
Dielectric Strength	≤ ±(0.1% R + 0.01Ω)	450V, 1min, 100v/s
Resistance to Solder	≤ ±(0.1% R + 0.01Ω)	260°C, 10s
Load Life	≤ ±(0.5% R + 0.05Ω)	70°C, Pe, 1000h
Vibration	≤ ±(0.1% R + 0.01Ω)	0 - 500Hz, 0.75mm, 98/s²
