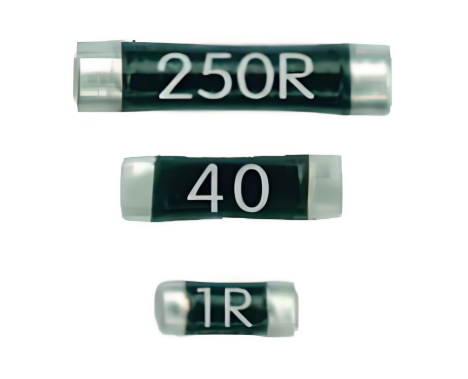

MELF3215 series high - precision metal - film surface - mount resistors

Characteristics

Temperature range: - 65°C - 150°C
Stability: ±0.5% at 125°C for 1000h
High stability
Low TCR (Temperature Coefficient of Resistance)
Coated style
SMD (Surface - Mount Device, lead - free surface - mount)

Application Area

MELF3215 series products are widely used in hybrid circuits, digital multimeters, communication equipment, industrial control instruments, and aerospace electronic equipment. They can adopt surface - mount technology (SMT), which is convenient and fast for installation. The company's product technology is in a leading position in China. With the development and popularization of surface - mount technology (SMT) for whole - machine assembly, the application areas will become wider and wider.

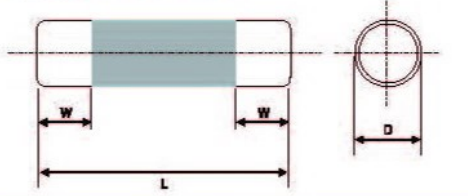

Dimensions (mm)

Type	L±0.3	D±0.3	W±0.1
MELF3215	3.5	1.5	0.8
MELF5918	5.8	1.8	1.14
MELF8820	8.0	2.0	1.35

Technical Specifications

Type	MELF3215	MELF5918	MELF8820
TYPE OF GJB1929 - 1994	RJ521	RJ531△	RJ541△
Power Rating at 70°C (W)	0.15	0.25	0.5
Power Rating at 125°C (W)	0.05	0.10	0.125
Limiting Element Voltage (V)	200	200	250
Resistance Range (Ω) (Military - standard Certification Range)	10R - 500K	10R - 796K	10R - 2M
Tolerance Range (Military - standard Certification Range)	B(±0.1%), C(±0.25%), D(±0.5%), F(±1.0%)
TC - Range (10⁻⁶/K) (Military - standard Certification Range)	C3(±25), C2(±50), C1(±100)
Resistance Range (Ω) (Available Range)	10R - 1M5	0R1 - 5M	0R1 - 10M
Tolerance Range (Available Range)	P(±0.02%), W(±0.05%), B(±0.1%), C(±0.25%), D(±0.5%), F(±1.0%)
TC - Range (10⁻⁶/K) (Available Range)	C7(±5), C6(±10), C5(±15), C4(±20), C3(±25), C2(±50), C1(±100)

Performance Characteristics

Test Item	Standards	Test Method
Short Time Overload	≤ ±(0.25%R + 0.05Ω)	2.5 - fold rated voltage, maximum voltage not exceeding 2 - fold limiting voltage, 5s
Temperature shock	≤ ±(0.25%R + 0.05Ω)	- 65°C - 150°C, 5 cycles, 0.5h
Low temp. Operation	≤ ±(0.25%R + 0.05Ω)	- 65°C, 1h, rated voltage not exceeding 200V, 45min
Dielectric Strength	≤ ±(0.25%R + 0.05Ω)	450V, 1min, 100v/s
Resistance to Solder	≤ ±(0.25%R + 0.05Ω)	260°C, 10s
Resistance to moisture	≤ ±(0.50%R + 0.05Ω)	- 10°C - 65°C, RH80 - 98%, 240h
Load life	≤ ±(0.50%R + 0.05Ω)	125°C, Pe, 1000h
Shock	≤ ±(0.25%R + 0.05Ω)	980m/s², 6ms
Vibration	≤ ±(0.25%R + 0.05Ω)	10 - 2000Hz, 0.75mm, 150m/s²
