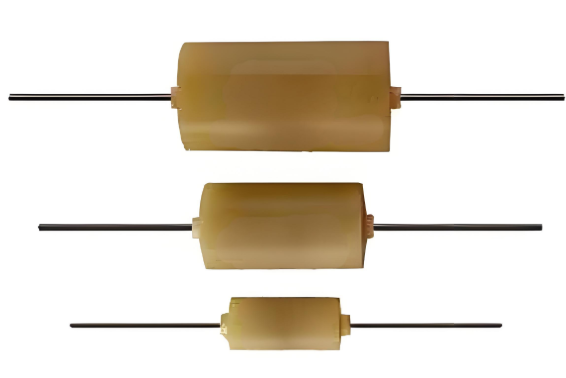

TYRX70 series high - precision wire - wound resistors

Features

Meets IEC (International Electrotechnical Commission) standards
Resistance value series according to the E series of IEC63
Excellent insulation and humidity - proof properties
High stability and reliability, up to 0.1% and 1×10⁻⁵/hour
High precision and low temperature coefficient

Applications

Used in meters and instruments
Other electrical equipment

Technical Specifications

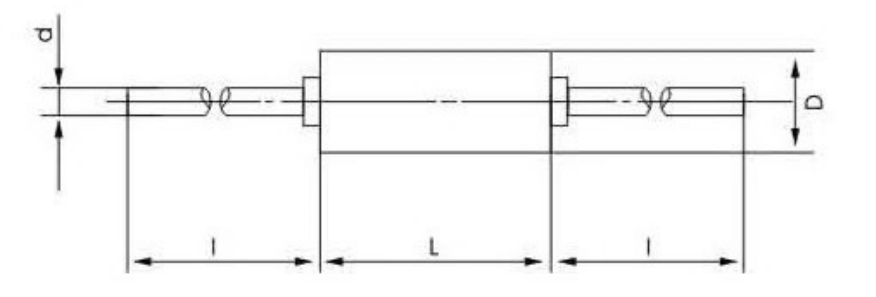

Type	Power (W)	Resistance Range (Ω)	Tolerance (%)	T.C.R (10⁻⁶/K)	Size (mm)		Limiting Voltage (DC or AC RMS)	Insulation Voltage (DC or AC Peak)
					Body (Dmax)	Terminal (Lmax±0.3)
Rx70 (RX11)	0.25	1 - 500K	±0.01(L) ±0.025(P) ±0.05(W) ±0.1(B) ±0.25(C) ±0.5(D) ±1(F)	±10 ±20 ±25	8	15.5	250	350
	0.5	1 - 1M			12	22	500	700
	0.75	1 - 2M			12	27
	1	1 - 4M			15	27.5
	2	1 - 5M			18	38	1000	1400
	3	1 - 10M			24	56
