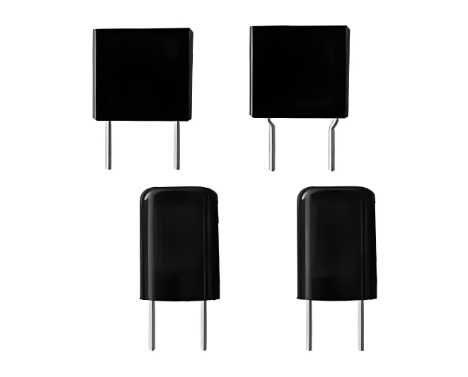

TYUPR Series Ultra - Precision Metal Film Resistors

Characteristics

Low TCR
Radial lead
High Stability: ±0.5%, 70°C, 1000h

Applications

Meters and instruments
Electronic weighing apparatus

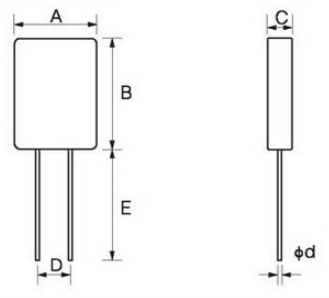

Specification Type	A ± 0.5	B ± 0.5	C ± 0.5	D	E ± 2	d ± 0.05
TYUPR1/10	10.5	9.5	4	2.54 - 7.6	10	0.60
TYUPR1/8	7.5	9.5	2.5	3.81	10	0.60
TYUPR1/4	9	12	4	2.54 - 5.08	10	0.60
TYUPR1/2	14	12	4	2.54 - 7.62	10	0.60
TYUPR1/2	9	12	4	2.54 - 5.08	10	0.60
TYUPR3/4	9.5	16.5	5	5.08	10	0.80

Type	TYUPR1/10	TYUPR1/8	TYUPR1/4	TYUPR1/2	TYUPR3/4

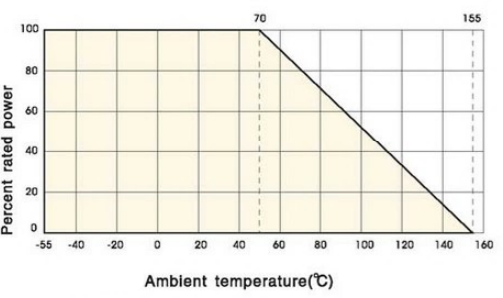

Power Rating at Tu70°C (W)	0.1	0.125	0.25	0.5	0.75
Limiting Element voltage (V)	200	200	250	300	350
Resistance Range (Ω)	colspan="5"	10R - 2MΩ
Absolute Tolerance	colspan="5"	L(±0.01%), P(±0.02%), W(±0.05%), B(±0.1%)
TC - Range (10⁻⁶/K)	colspan="5"	C10(±2), C7(±5), C6(±10), C5(±15), C4(±20)

Test Item	Specifications	Test Method
Short time overload	≤ ±(0.1%R + 0.01Ω)	2.5VR, 5s
Thermal shock	≤ ±(0.1%R + 0.01Ω)	-55°C/155°C, 5 cycles
Dielectric strength	≤ ±(0.1%R + 0.01Ω)	VAC, 1min ± 5s
Leaching	≤ ±(0.1%R + 0.01Ω)	260°C, 10s
Load life	≤ ±(0.5%R + 0.05Ω)	70°C, Pn, 1000h
Shock	≤ ±(0.1%R + 0.01Ω)	1000m/s², 6ms
Vibration	≤ ±(0.1%R + 0.01Ω)	0 - 500Hz, 0.75mm, 98m/s²
