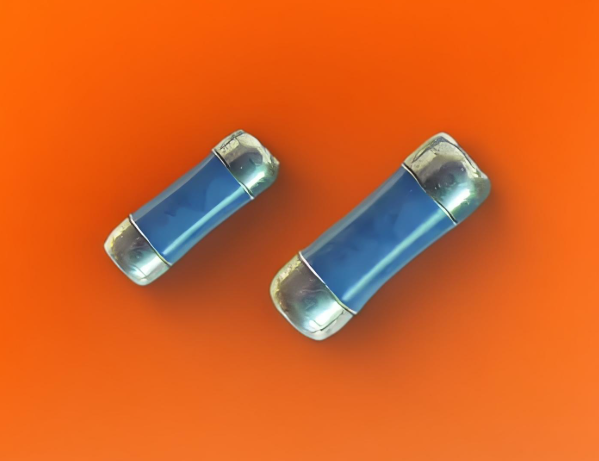

Jumper Resistor

Jumper Resistors: Versatile Tools for Electronic Design

Often equated with zero-ohm resistors, jumper resistors are specialized precision resistors that serve multiple critical functions in electronic design. While their resistance value is not truly zero, their unique properties make them indispensable tools for engineers.

Primary Functions of Jumper Resistors:

• Flexible Connections: Jumper resistors provide a flexible means of connecting circuit elements. In complex circuit layouts, engineers can easily modify circuit behavior by inserting or removing these resistors without the need for extensive PCB redesign. This flexibility is invaluable during prototyping and testing phases.

• Debugging Aid: During the development process, jumper resistors serve as temporary connection points, aiding in rapid fault isolation and circuit optimization. As debugging progresses, these resistors can be removed to streamline the final circuit.

• PCB Layout Optimization: Jumper resistors can be strategically placed to enhance signal integrity, optimize circuit layout, and meet specific electrical performance requirements. This is particularly useful when routing constraints or component placement limitations exist.

Key Features and Considerations:

• Current Ratings: Our jumper resistors are available in various current ratings, such as 2A, 3A, 4A, and 5A, to accommodate a wide range of circuit requirements.

• Selection Criteria: When selecting a jumper resistor, engineers should consider factors such as circuit complexity, power requirements, and desired level of flexibility.

Jumper resistors are versatile components that offer significant advantages in electronic design. Their ability to provide flexible connections, aid in debugging, and optimize PCB layouts makes them essential tools for engineers. By understanding the principles and applications of jumper resistors, designers can enhance their circuit designs and improve overall product reliability.
