Medium Voltage Resistor

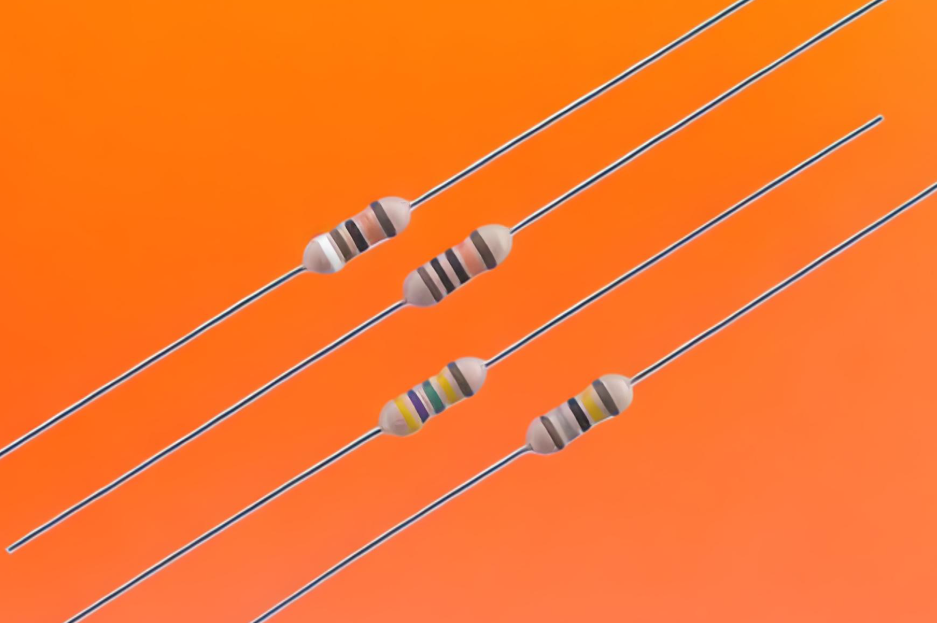

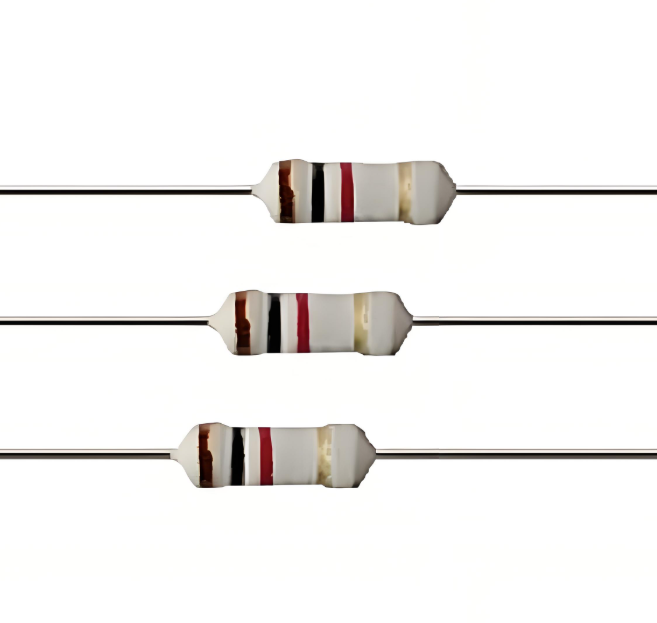

The Medium Voltage Resistor employs a through-hole technology (THT) design and boasts power ratings between 0.25W and 2W. Its resistance values span from 47 ohms to 100 million ohms, with tolerances varying from ±0.1% to ±5%. Furthermore, its maximum operating voltage can reach from 400V(RMS) up to 5KV(RMS). This series offers a cost-effective alternative to metal glazed resistors and is ideally suited for use in SMPS and lighting equipment.

Type	Body Length (L, mm)	Body Diameter (D, mm)	Lead Wire Length (H, mm)	Lead Wire Diameter (d, mm)	Net Weight Per 1000 Pcs
1/4W	3.20 ± 1.0	1.9 ± 0.2	28 ± 3.0	0.45 ± 0.03	145 Grams
1/4W	6.50 ± 1.0	2.4 ± 0.2	26 ± 3.0	0.55 ± 0.03	220 Grams
1/2W	9.00 ± 1.0	3.2 ± 0.2	26 ± 3.0	0.60 ± 0.03	340 Grams
1W	11.0 ± 1.0	4.5 ± 0.5	26 ± 3.0	0.70 ± 0.03	600 Grams
2W	15.5 ± 1.0	5.5 ± 0.5	30 ± 3.0	0.80 ± 0.03	1200 Grams

Power Rating (at 70°C)	Maximum Working Voltage	Maximum Overload Voltage	Minimum Resistance	Maximum Resistance	Resistance Tolerance	Available Resistance Values
1/4W	550V DC (400V RMS)	1.1kV DC (800V RMS)	47KΩ	33MΩ	±0.1%~±5%	E-192/E-24
1/4W	1.1kV DC (800V RMS)	2.2kV DC (1.6kV RMS)	47KΩ	33MΩ	±0.1%~±5%	E-192/E-24
1/2W	2.3kV DC (1.6kV RMS)	4.6kV DC (3.2kV RMS)	47KΩ	68MΩ	±0.1%~±5%	E-192/E-24
1W	4kV DC (2.8kV RMS)	8kV DC (5.6kV RMS)	47KΩ	100MΩ	±0.1%~±5%	E-192/E-24
2W	7kV DC (5kV RMS)	14kV DC (10kV RMS)	47KΩ	100MΩ	±0.1%~±5%	E-192/E-24

Characteristics	Limits
Temperature Coefficient, PPM / °C*	±100, ±200, ±400, ±800
Operating Temperature Range, °C	-55 ~ +155
Insulation Resistance, MΩ	>10⁴

Not applicable to all resistance values. Please check with us regarding the PPM of specific resistance value(s).
