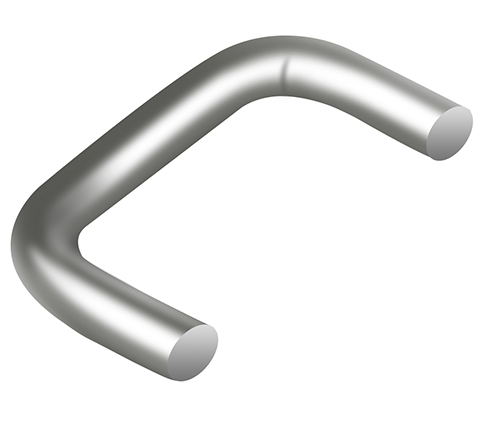

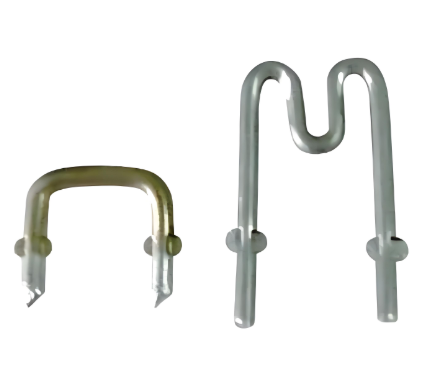

Jumper sampling resistor

Features	Applications
Low Inductance	Low-Precision Current Sampling
RoHS Compliant	Feedback Circuit
Excellent Solderability	Low Inductance Circuit
	High Current Pulse Circuit

Jumper Type Sampling Resistor Specifications

W/R/L	3	5	8	10	12	15	18	20	25	30	40	50
3.0	1	1.1	1.3	1.5	1.6	1.9	2.3	2.9	3.5
2.5	1.1	1.3	1.3	1.9	2.1	2.6	3.1	4.0	5.0
2.3	1.1	1.4	1.6	1.9	2.3	2.5	3.1	3.6	4.8	5.9
2.0	1.5	1.8	2.1	2.5	3.0	3.3	4.0	4.7	6.2	7.7
1.8	1.3	1.8	2.2	2.6	3.1	3.7	4.1	5.0	5.9	7.8	9.6
1.6	1.6	2.3	2.8	3.3	4.0	4.7	5.1	6.3	7.5	9.8	12.2
1.5	1.3	1.9	2.7	3.2	3.7	4.5	5.3	5.9	7.2	8.5	11.2	13.8
1.4	1.5	2.1	3.1	3.7	4.3	5.2	6.1	6.7	8.2	9.8	12.9	15.9
1.3	1.8	2.5	3.5	4.3	5.0	6.0	7.1	7.8	9.3	11.3	14.9	18.4
1.2	2.1	2.9	4.2	5.0	5.8	7.1	8.3	9.1	11.2	13.3	17.5	21.6
1.1	2.5	3.5	4.9	5.9	6.9	8.4	9.9	10.9	13.4	15.8	20.8	25.7
1.0	2.9	4.2	6.0	7.2	8.4	10.2	12.0	13.2	16.2	19.2	25.1	31.1
0.9	3.2	4.5	7.0	8.4	9.9	12.1	14.3	15.8	19.5	23.2	30.6	38
0.8	3.7	5.6	8.4	10.3	12.2	15.0	17.8	19.6	24.3	29.0	39.4	47.7
0.7	4.9	7.3	11.0	13.4	15.9	19.6	23.2	25.7	31.8	37.9	50.1	62.3
0.6	6.7	10.0	15.0	18.3	21.6	26.6	31.6	34.9	43.2	51.6	68.2	84.8
0.5	7.9	11.9	17.8	21.8	25.7	31.7	37.6	41.6	51.5	61.3	81.1	101

Material Resistivity

Material	Resistance Rate
Constantan	48 μΩ.cm
Manganin	44 μΩ.cm
Tinned Copper	-

Endurance Test

Items	Limits	Additional Requirements
Temperature Cycling	±1%	-55°C to +125°C, 1000 cycles, No mechanical damage
Biased Humidity	±1%	1000hrs 85°C/85% RH, 10% of Operating Power
Load Life	±1%	70±2°C, 1000h, Rated voltage (90 min ON, 30 min OFF)
