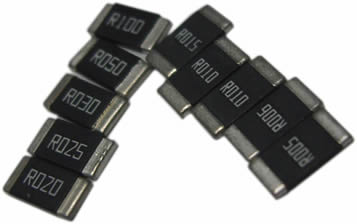

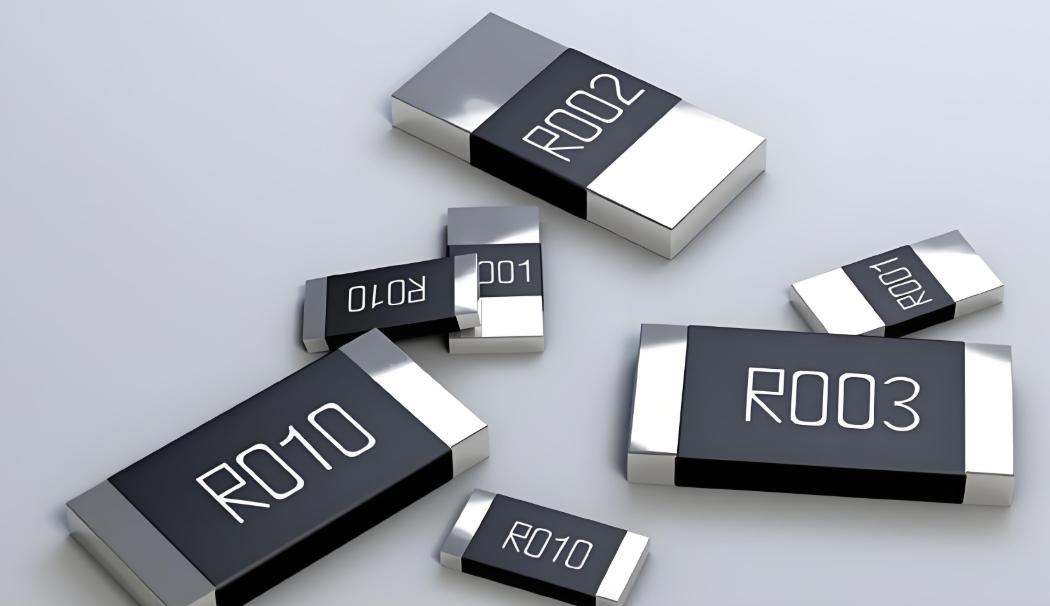

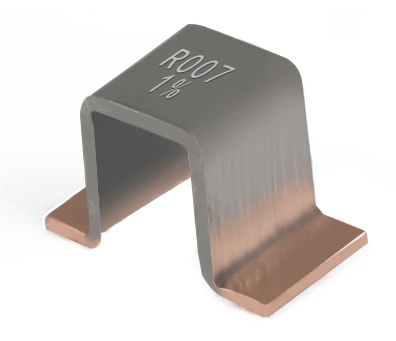

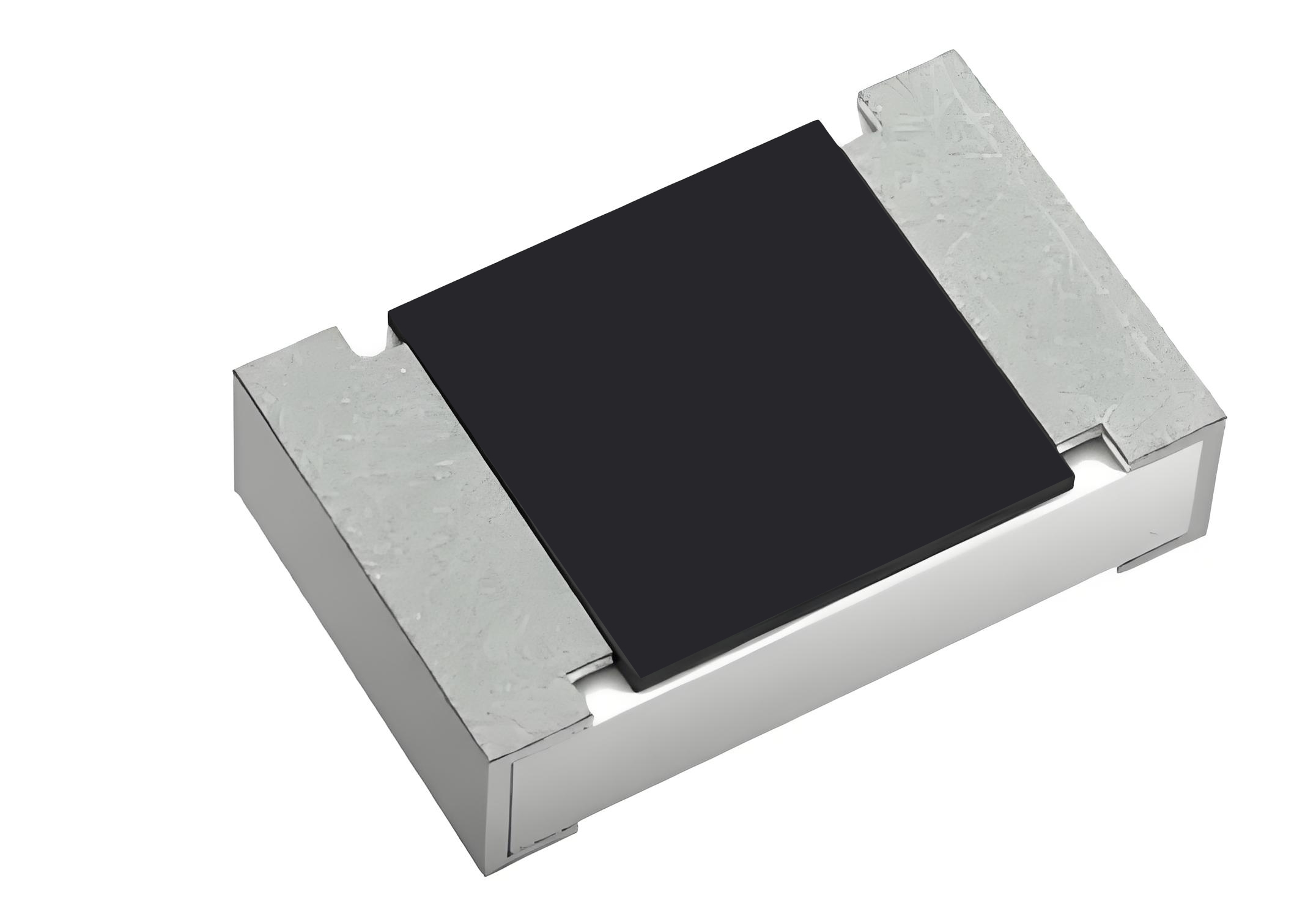

Alloy Resistor

Summary: Alloy Current Sensing Resistors

• Supplier: First-level authorized distributor with large quantities in stock.

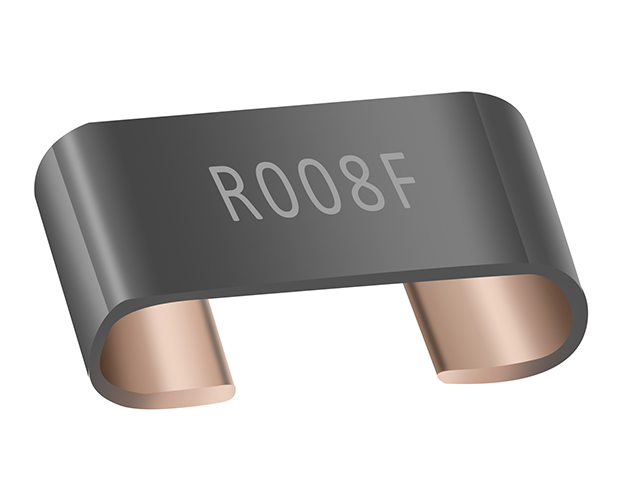

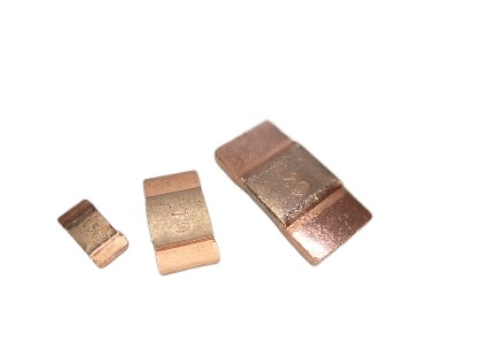

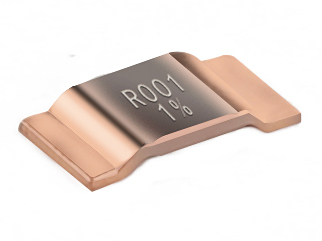

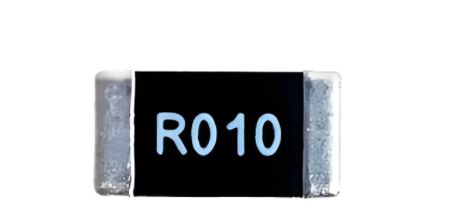

• Product: Alloy Current Sensing Resistors (also referred to as Alloy Ultra-Low Resistance Resistors).

• Pricing: Transparent price list available, but not fully displayed here. Please inquire by phone for parameters not shown.

• Key Features:

• Ultra-low resistance

• Low temperature drift (TCR)

• High power rating

• High precision

• Surge resistant

• High temperature resistant

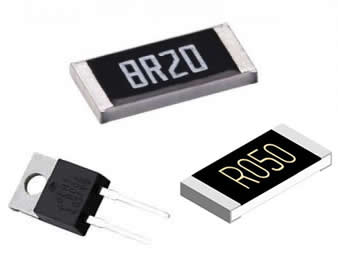

• Low inductance

• Etc.

• Available Specifications:

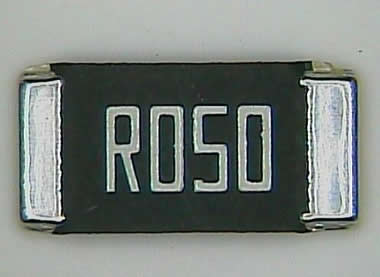

• Resistance Range: 0.5 mΩ to 910 mΩ

• Tolerance: 1%, 2%, 5%

• Temperature Coefficient (TCR): 50 PPM/℃, 75 PPM/℃, 100 PPM/℃, 150 PPM/℃, 200 PPM/℃

• Package Sizes: 1206, 0612,2010, 2512,1225,4527

• Power Ratings: 1W, 1.5W, 2W, 2.5W, 3W,4W,5W,6W

• Provided Table Examples: Lists specific combinations available in packages like 2512 (2W, 1% & 5% tolerance) and 1206 (1W), covering various low resistance values within the stated ranges.

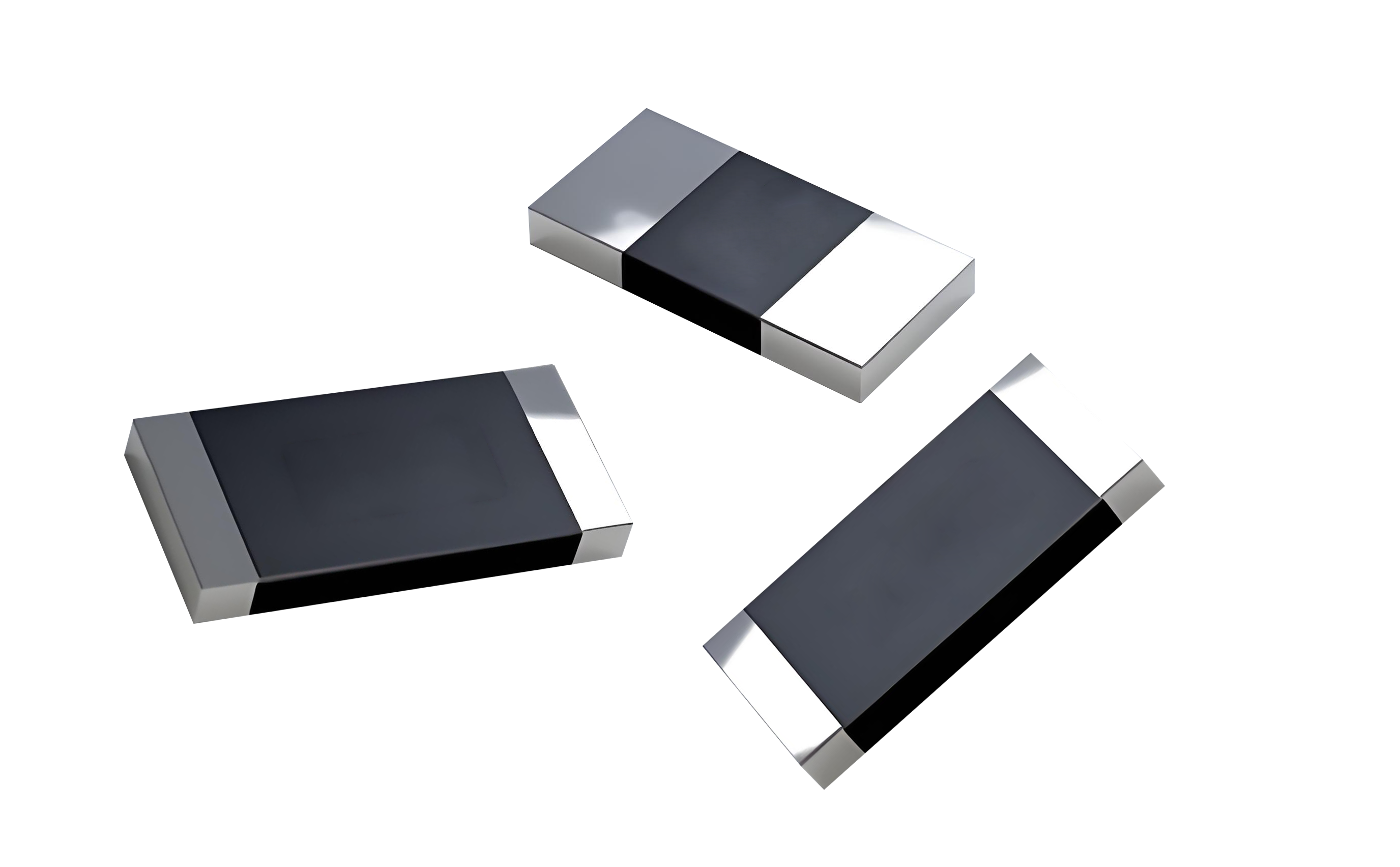

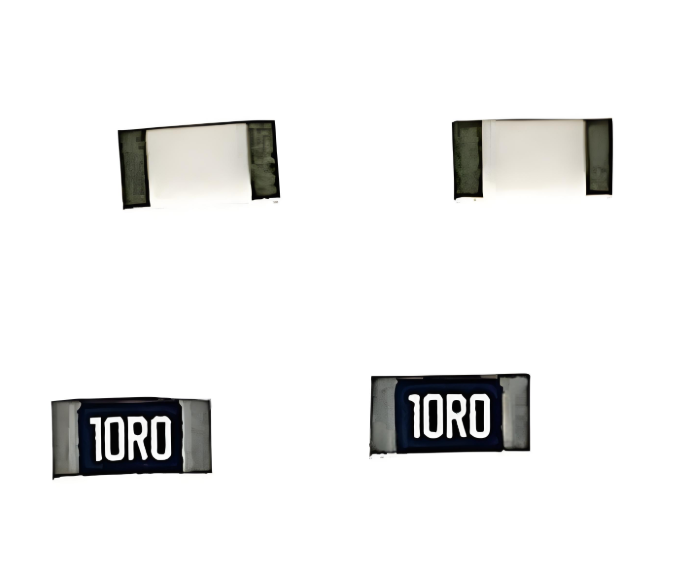

Precision Automotive-Grade Resistors Technical Overview
Core Specifications & Industry Applications

1. Key Performance Parameters

• Resistance Range: 0.25mΩ–100mΩ (current sensing) to 10MΩ (signal conditioning)

• Tolerance: ±0.01% (ultra-precision) to ±5% (general purpose)

• Temperature Coefficient (TCR):

• Standard: ±50ppm/℃

• High Precision: ±5ppm/℃ (alloy-based sensors)

• Extreme Environments: ±1ppm/℃ (tantalum nitride films)

• Power Handling:

• SMD Packages: 0.1W–3W (2512 size)

• High-Power Modules: Up to 100W (TO-247 packages)

• Certifications: AEC-Q200 Grade 0 (-55℃–170℃), RoHS, ISO 9001

2. Material Innovations

• Resistive Elements:

• Manganin/NiCr Alloys: Low TCR (±15ppm/℃), high stability under pulsed loads

• Tantalum Nitride (TaN): Halogen-free, sulfur-resistant coatings for 1000h @105℃ corrosive environments

• Ceramic Composite Substrates: Thermal conductivity >24W/m·K, reducing hotspot formation

• Termination Structures:

• Au/Ni/Cu Triple-Layer Plating: Contact resistance <5mΩ, withstands 50g vibration

• Laser-Trimmed Electrodes: ±0.002% precision adjustment capability

3. Automotive Application Scenarios

Critical Safety Systems:

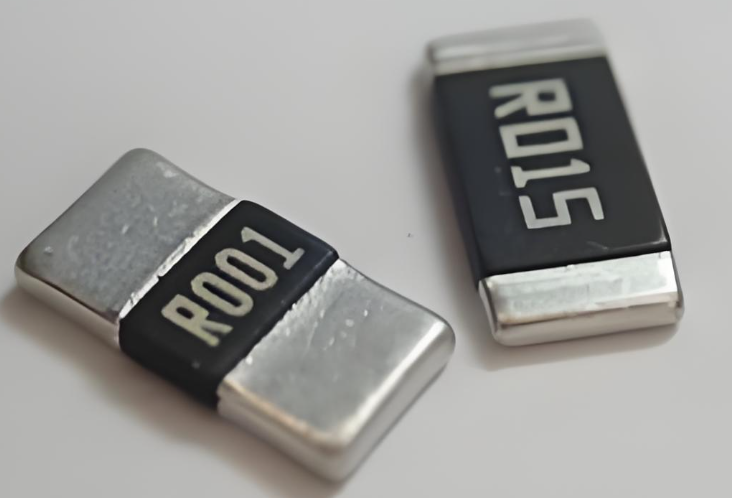

• Battery Management (BMS): 0.5mΩ–5mΩ 4-terminal Kelvin resistors for ±0.5% current monitoring accuracy

• Motor Controllers: 50mΩ–100mΩ anti-surge resistors with 100A/1ms pulse withstand

• ADAS Sensors: 1Ω–10kΩ thin-film networks with ±0.1% matching for LiDAR signal conditioning

Environmental Resilience:

• Underhood Components: Thick-film resistors with ASTM-B-809-95 compliance (750h sulfur resistance)

• Wheel-Speed Sensors: Hermetically sealed 0805 packages surviving 3000 thermal cycles (-40℃↔125℃)

4. Manufacturing & Quality Control

• Process Technologies:

• E-Beam Welding: <0.05% long-term drift after 2000h @70℃ full load

• Multi-Layer Passivation: 85℃/85%RH 1000h moisture resistance

• Testing Protocols:

• Load Life: ΔR <0.2% after 1000h @125℃

• Thermal Shock: 500 cycles (-55℃↔150℃ liquid-to-liquid)

• Mechanical Stress: 100g shock & 50Hz–2000Hz random vibration

5. Industry Trends & Innovations

• Miniaturization: 0201 packages (0.6×0.3mm) achieving 200ppm TCR with 50mΩ resistance

• Smart Integration: Embedded temperature sensors in 1206 resistors for real-time thermal compensation

• High-Frequency Performance: <1nH inductance designs for EV fast-charging systems (300kHz+ switching)

Compliance Documentation:

• Full traceability with laser-marked date codes

• MIL-STD-202G & ESCC 4000/008 protocols for aerospace-grade variants

• IATF 16949-certified production lines with 100% AOI inspection
