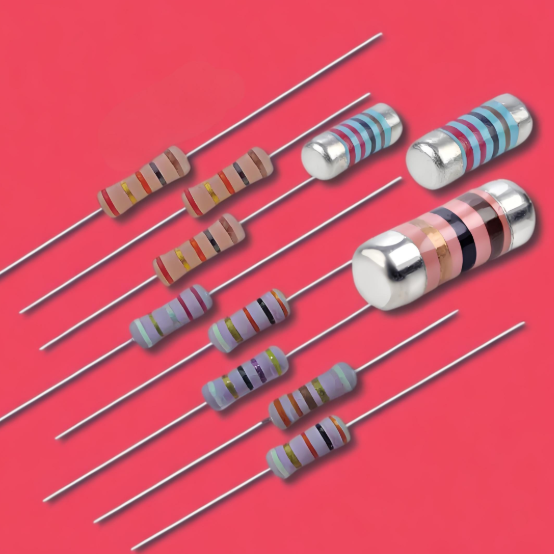

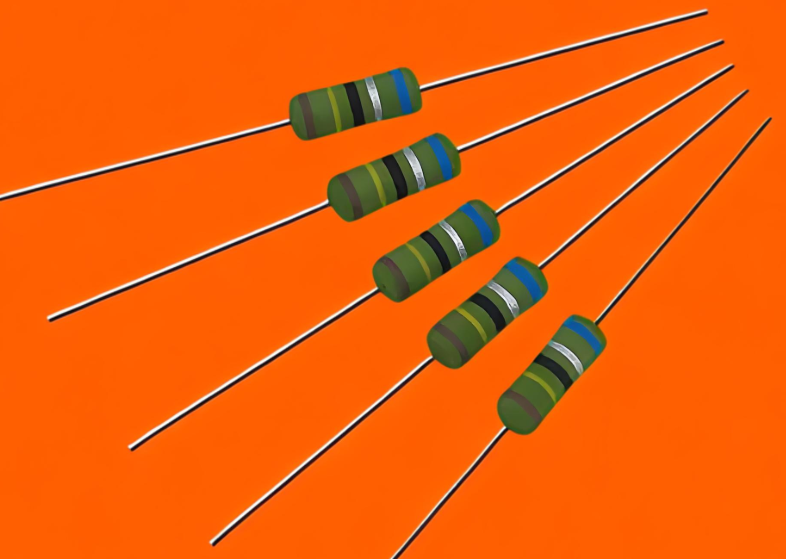

Anti-Surge Resistor

Design & Construction

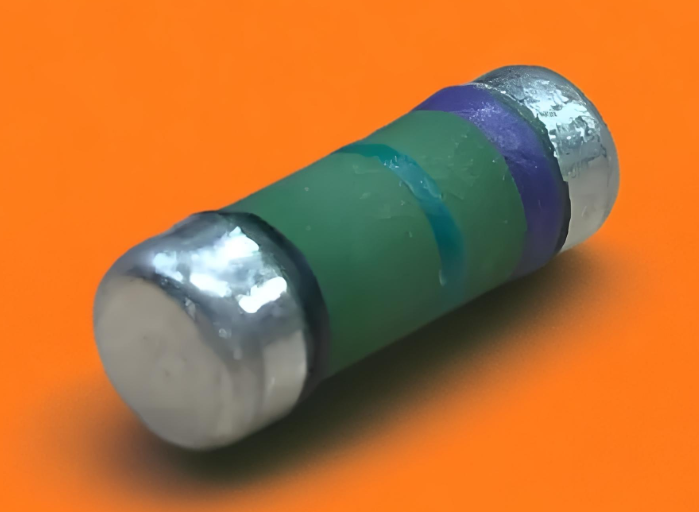

These components utilize cylindrical ceramic cores with specialized glazed coatings for enhanced thermal stability. The structural design provides 20-30% greater surface area compared to flat chip resistors, enabling efficient heat dissipation during high-energy pulse events. Advanced flame-retardant materials equivalent to UL94 V-0 standards ensure operational safety in demanding environments.

Core Technologies

Performance Advantages

• Pulse Withstanding: Single surge handling up to 7W for 0.1ms (0402 size)

• Temperature Range: Operational stability from -55°C to +155°C

• Environmental Resistance: Passes 2,000-hour humidity tests at 85°C/85% RH

• ESD Protection: Withstands 4kV human-body model discharges

Key Applications

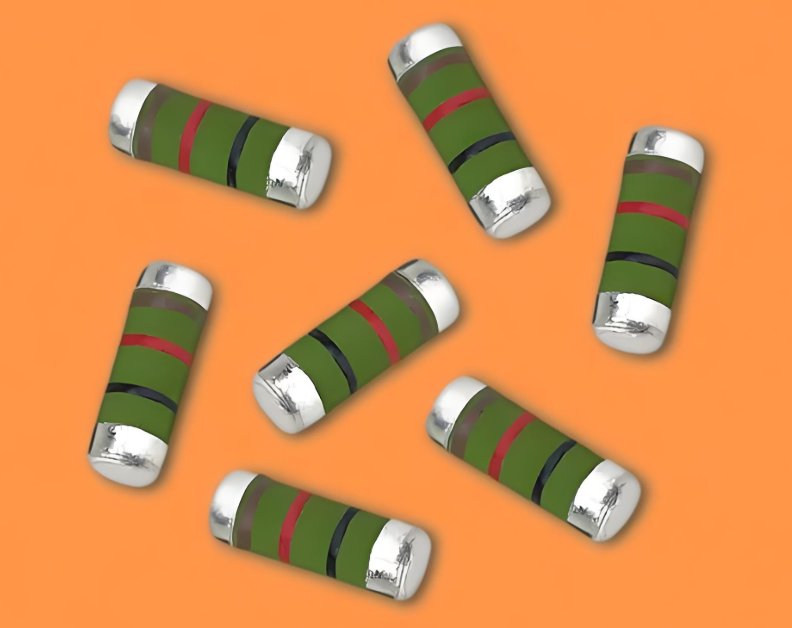

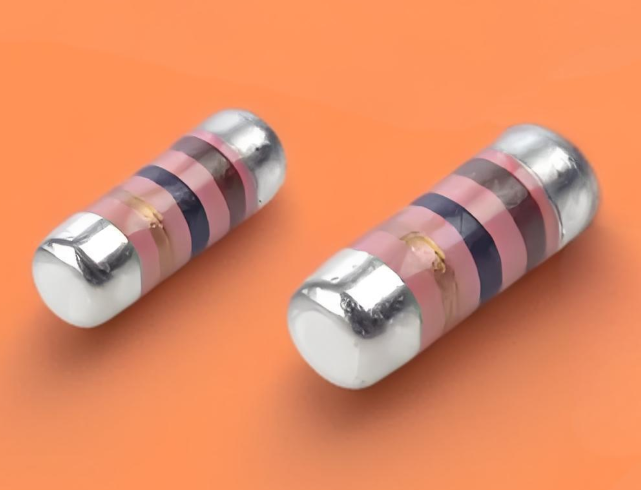

1. Automotive Electronics: Battery management systems and motor controllers

2. Power Conversion: Inrush current limitation for 50W+ AC/DC converters

3. Industrial Systems: High-voltage transformers and robotics power modules

Selection Criteria

Critical parameters include pulse duration matching (derating curves for 1-100ms events), mounting configuration for thermal management (vertical vs horizontal orientation), and compliance with industry-specific standards for automotive or industrial environments.
