Current Sense Resistor

Current sense resistors, as a vital member of electronic components, are widely favored for their high power ratings and low resistance values. These resistors play a crucial role in monitoring current within circuits, with their precise resistance values ensuring stable current flow and protecting other circuit components from excessive current damage.

However, due to their high power and low resistance characteristics, current sense resistors can generate significant power dissipation during operation. If this heat is not effectively dissipated, it can lead to an increase in resistor temperature, ultimately impacting its lifespan and performance stability. Therefore, the quality of heat dissipation directly determines the longevity of current sense resistors.

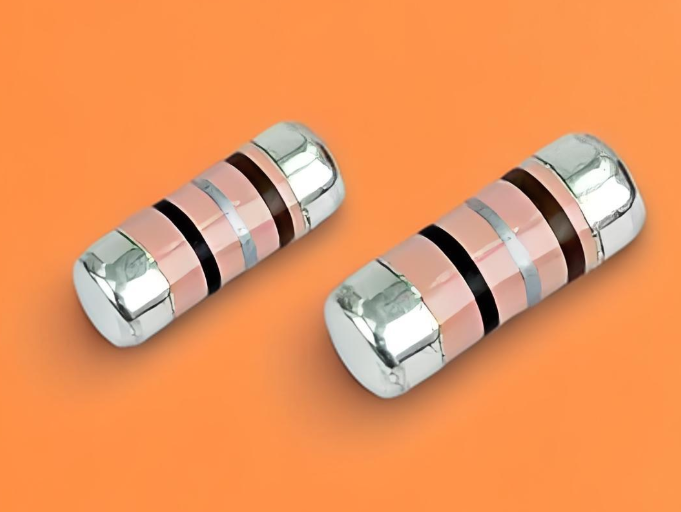

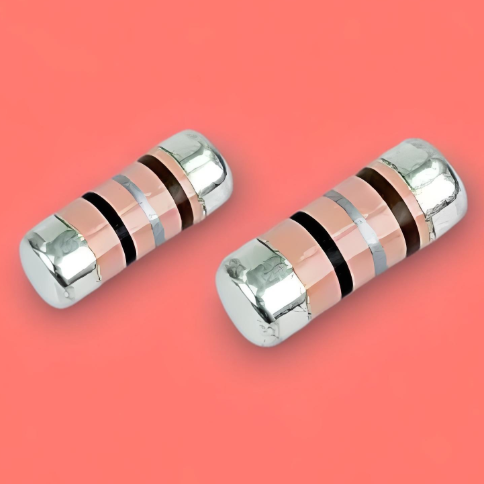

To address this challenge, we utilize two solutions with superior heat dissipation capabilities: cylindrical axial lead resistors and MELF packaging. The unique structure and materials of cylindrical axial lead resistors enable more uniform heat distribution across the resistor body and efficient heat conduction to the external environment through the leads. Meanwhile, MELF packaging enhances heat dissipation efficiency by optimizing packaging structure and material selection.

Thanks to these advanced thermal management technologies, our current sense resistors are widely used in various fields, including chargers, switching power supplies, LED lighting drivers, and battery management systems. In chargers, current sense resistors monitor charging current in real-time, ensuring safe battery charging. In switching power supplies, they stabilize output voltage and protect circuits from overcurrent impact. In LED lighting drivers, these resistors precisely control LED brightness, extending the lifespan of the lights. In battery management systems, they play a critical role in monitoring battery status and ensuring battery safety.
