Safety Resistor

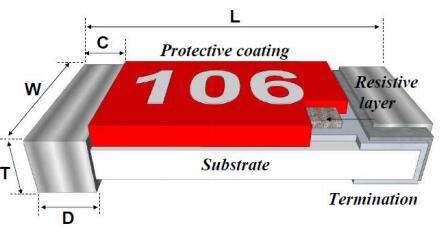

Product Introduction: High Voltage Thick Film Chip Resistors

We offer a series of high-performance high voltage thick film chip resistors, specifically designed for applications requiring the ability to withstand high operating voltages. These resistors utilize special materials and construction to ensure reliability and stability under high voltage conditions, while complying with numerous international safety and industry standards.

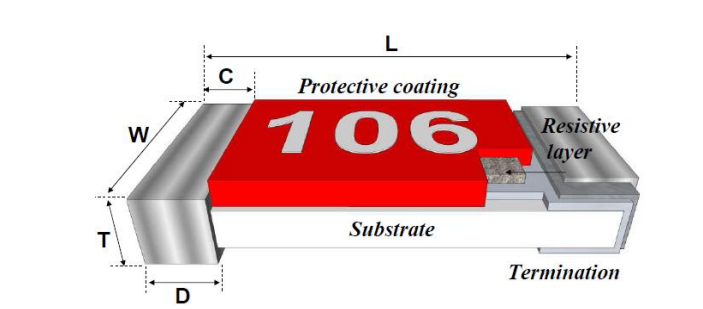

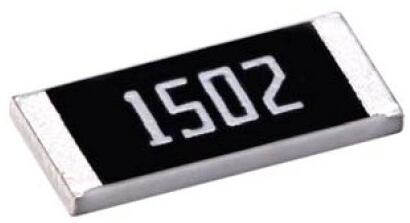

High Voltage Thick Film Chip Resistor (Standard)

• Nominal Voltage: Up to 3000V

• Features:

• Special materials and design required for high operating voltage.

• Compatible with wave soldering and reflow soldering, facilitating integration into various PCB designs.

• Suitable for lead-free soldering, meeting environmental requirements.

• Voltage Coefficient of Resistance (VCR) typically below 100ppm, maximum below 300ppm, ensuring resistance stability under voltage changes.

• Complies with AEC-Q200 automotive standard, RoHS standard, and is halogen-free.

• Meets multiple safety certifications, including UL/IEC 62368 resistor requirements certification, UL/IEC 60950-1 certification, and UL/IEC 60065, UL 1676 qualified.

• Precision: ±1%, ±5%

• Package Sizes: 0603 to 2512

High Voltage Thick Film Chip Resistor (Optional Standard, Higher Voltage)

• Nominal Voltage: Up to 10KV (10000V)

• Features:

• High reliability multi-layer electrode structure provides excellent electrical performance.

• Effectively enhances overall component and equipment reliability.

• Demonstrates superior performance stability under high voltage.

• Contributes to the miniaturization of end devices.

• Possesses UL Demo IEC 62368-1 safety certificate and UL Demo IEC 60950-1 safety certificate.

• Precision: ±1%, ±5%

• Package Sizes: 0402, 0603, 0805, 1206, 2010, 2512
