100W TO-247 Planar Thick Film, Non-inductive Power Resistor

The TO-247 package features a direct exposure structure of ceramic substrate, and utilizes specialized mounting spring clips for use in conjunction with heat sinks. It boasts high rated power and pulse electrical load capabilities.

Technical Features

1. The center temperature of the base plate is ≤25°C, and the rated power is 100W.

2. Standard TO - 247 molded package with exposed ceramic substrates.

3. It is installed with M3 screws and matched with special - purpose mounting spring plates, enhancing the thermal conductivity of the resistor.

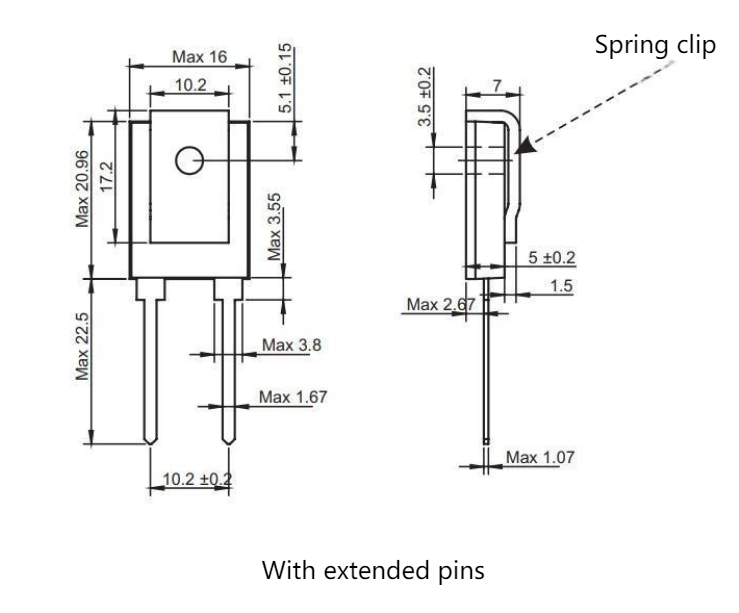

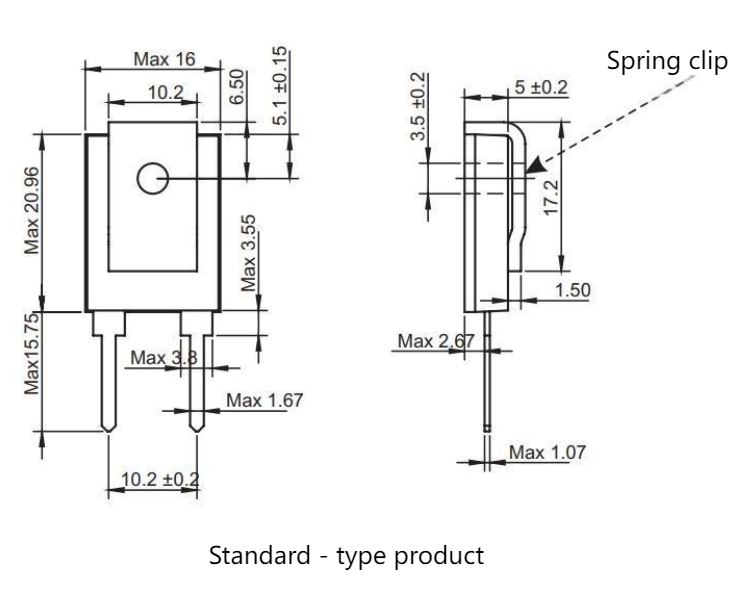

4. There are two specifications of pin lengths, see the specific size table:

• Standard




• With extended pins.



Specifications

1. Resistance range: 0.2Ω~1MΩ

2. Resistance accuracy: ±1%~±10% (±0.5% can be produced according to requirements)

3. Temperature coefficient: Can achieve up to ±50ppm/°C (25°C~105°C)

4. Rated power: Rated power is 100W at 25°C, maximum operating voltage is 700VDC.

5. Dielectric withstand voltage: 1,800VAC

6. Insulation resistance: Minimum 10GΩ

7. Instantaneous overload: Twice the rated power, but not exceeding 1.5 times the maximum continuous operating voltage, for 5 consecutive seconds, ΔR≤±(0.3%R + 0.001Ω)

8. Power durability: Rated power for 2,000 hours, MIL - R - 39009, ΔR≤±(1.0%R + 0.001Ω)

9. Moisture resistance: MIL - Std - 202, method 106, ΔR≤±(0.5%R + 0.001Ω)

10. Thermal shock: MIL - Std - 202, method 107, condition F, ΔR≤±(0.3%R + 0.001Ω)

11. Terminal strength: MIL - Std - 202, method 211, condition A, tensile test 2.4 Newtons, ΔR≤±(0.2%R + 0.001Ω)

12. High - frequency vibration: MIL - Std - 202, method 204, condition D, ΔR≤±(0.2%R + 0.001Ω)

13. Operating temperature range: -55°C~+175°C

14. Lead material: Anti - oxidation tinned copper wire

15. Maximum torque for M3 screws: 0.9Nm
