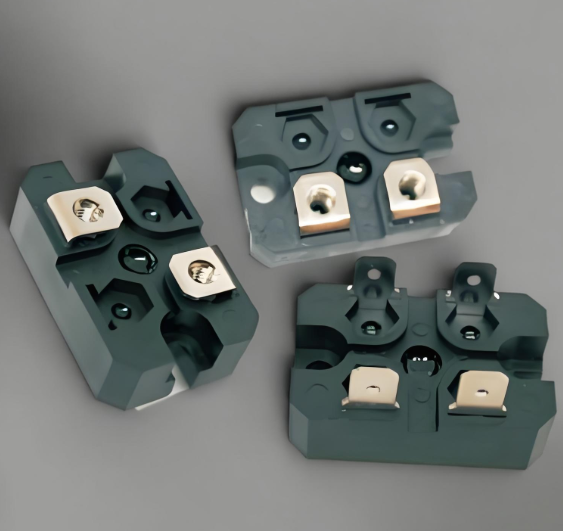

120W Planar Thick Film, Non-inductive Power Resistor

Technical Features

1. The center temperature of the base plate is ≤70°C, and the rated power is 120W.

2. Standard SOT227 exterior structure design. The lead - out terminals can be led out by insulated terminal leads, welding of insert terminals, or installation of standard M4 screws on the lead - out terminals.

3. It has good mechanical reliability.

4. Five kinds of resistance structures are provided.

Specifications

1. Resistance range: 0.5Ω~1MΩ (Values outside the range can be negotiated and ordered)

2. Resistance accuracy: ±1%~±10%

3. Temperature coefficient: ±50ppm/°C~±250ppm/°C (25°C~105°C)

4. Maximum working voltage: 1500VDC.

5. Rated power: 70°C, 120W (Single resistance value, see the packaging diagram for other packaging structures)

6. Distributed capacitance (Mass): 36pF

7. Distributed capacitance (Parallel): 12pF

8. Parasitic inductance: ≤50nH

9. Air gap / creepage distance: Three lead - out methods, see the figure below

10. Power durability: Rated power for 1,000 hours, base plate temperature 70°C, ΔR≤±(1.0%R + 0.001Ω)

11. Moisture resistance: 56 days / 40°C, RH≥95%, ΔR≤±(0.25%R + 0.001Ω)

12. Thermal shock: -40°C~+125°C 5 cycles, ΔR≤±(0.25%R + 0.001Ω)

13. High - frequency vibration: MIL - Std - 202, method 204, condition D, ΔR≤±(0.2%R + 0.001Ω)

14. Insulation layer withstand voltage: 5kVDC, 3kVAC, higher requirements can be negotiated for supply.

15. Resistance installation: M4 screws, maximum torque 1.3Nm (uniform symmetrical installation)

16. Lead - out terminal installation: M4 screws, maximum torque 1.0Nm

17. Working temperature range: -55°C~+155°C
