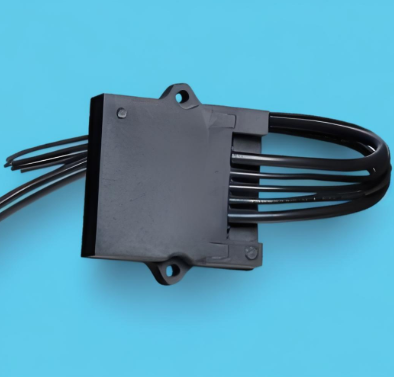

2000W Wiring Harness Planar Thick Film, Non-inductive High-power Resistor

Technical Specifications

• Resistance value: ≥0.1 Ω to ≤6 kΩ

• Resistance tolerance: ±5% to ±10%

• Temperature coefficient: ±250 ppm/°C standard, lower TCR available for special low - ohmic values on request

• Power rating: Up to 2000 W at 125°C bottom case temperature (see configurations)

• Short - time overload: 2400 W at 70°C for 10 sec., ΔR = 0.4% max. (see configurations)

• Maximum working voltage: 5000 V DC = 3500 V AC RMS (50 Hz) higher voltage on request, not exceeding max. power

• Maximum continuous current: Depends on the cable (ask for details)

• Electric strength voltage: 7 kVrms/50 Hz/500 VA, test 1 min. between terminal and case (up to 12 kVrms on request voltages above 10 kVrms are tested at DC equivalent to avoid pre - damage of the component during time)

• Partial discharge: 4 kVrms < 10 pC (up to 7 kVrms < 10 pC on request, acc. to IEC 60270)

• Peak current: Up to 1500 A depending on pulse length and frequency (ask for details)

• Insulation resistance: >10 G at 1000 V

• Single shot voltage: Up to 12 kV norm (1/50 μs)

• Inductance: ≤80 nH (typical), measuring frequency 10 kHz

• Capacity/mass: ≤140 pF (typical), measuring frequency 10 kHz

• Capacity/parallel: ≤40 pF (typical), measuring frequency 10 kHz

• Operating temperature: Res. body: - 55°C to +155°C, std. cables: - 40°C to +120°C (other cables on request)

• Mounting + torque: 1.6 Nm to 1.8 Nm M4 screws

• Standard cable length: 250 mm (other cable lengths on special request)

• Standard cable type: H&S Radox 9 GKW AX 1.5 mm² (other cable types on special request)

• General Pulse Load information: Contact local EBG representative or contact us directly

• Weight: ~92 g depending on cable

General Specifications

• Electric support: High - purity ceramic metallized with Miba Resistors ALTOX film on the bottom for better heat transfer and optimum discharge

• Encapsulation: Resin - filled epoxy casing. High insulation resistance (CTI 600), high dielectric strength and partial discharge capability

• Resistance Element: Special design for low inductance and capacitance values. The element employs our special METOXFILM, which demonstrates stability while covering high wattage and pulse loading

• Housing: Housings are made without color additives. The color definition is natural and can vary in different pigmentation

Features

• Multiple resistors in 1 package

• Non - Inductive design

• ROHS compliant

• High insulation & partial discharge performance

• Materials in accordance with UL 94 V - 0

• Resistor is also available with pre - applied PCM (Phase Change Material) (ask for details)

Application Fields

For variable speed drives, power supplies, control devices, robotics, motor control and other power designs.
