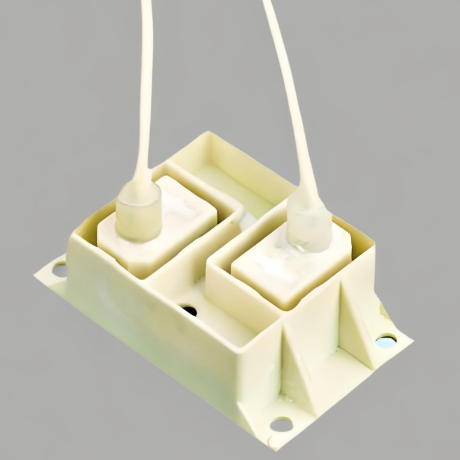

400W Wiring Harness Planar Thick Film, Non-inductive High-power Resistor

The lead-out terminals employ extended high-voltage-resistant insulated wires, significantly enhancing the creepage distance and spatial distance between the lead-out terminals, the baseplate, the resistor mounting terminals, and among the lead-out terminals themselves. It is applied in the fields of electrical equipment such as power generation, electric power transmission, and variable-speed drives.

● Filled with special resin material and utilizing high-voltage-resistant insulated wires for the lead-out terminals, the overall creepage distance and spatial distance of the resistor are enhanced.
● Professional design ensures low inductance and capacitance values.
● Special resistor material guarantees the stability of the resistor under high-power and pulsed usage conditions.
● Fixed installation with M4 screws ensures that the attachment pressure on the heatsink is maintained between 120-160 Newtons.
● The raw materials have passed UL94-V0 certification.

• Resistance Value: 0.5Ω ~ 1MΩ

• Tolerance: ±5% ~ ±10%, higher precision available upon request.

• Temperature Coefficient: ±150ppm/°C (25°C ~ 105°C), other temperature coefficients available upon request.

• Rated Power: 400W, maximum operating voltage not exceeding 5,000VDC.

• Short-term Overload: 700W, 70°C, 10 seconds, ΔR ≤ ±(0.4%R + 0.001Ω).

• Insulation Withstand Voltage: 6kVrms, 50Hz, 1 minute, maximum 12kVrms upon request.

• Partial Discharge: 4kVrms, <10pC, maximum 7kVrms upon request.

• Insulation Resistance: 500V, minimum 1GΩ.

• Creepage Distance: Minimum 42mm.

• Clearance: Minimum 14mm.

• Inductance: ≤80nH.

• Distributed Capacitance (Mass): ≤110pF.

• Distributed Capacitance (Parallel): ≤40pF.

• Moisture Resistance: 56 days/40°C, RH ≥ 95%, ΔR ≤ ±(0.25%R + 0.001Ω).

• Temperature Cycle: -55°C/+125°C (each 0.5h), 5 cycles, ΔR ≤ ±(0.2%R + 0.001Ω).

• High-frequency Vibration: MIL-Std-202, method 204, condition D, ΔR ≤ ±(0.2%R + 0.001Ω).

• Power Endurance: Rated power 1,000 hours, base temperature 85°C, ΔR ≤ ±(0.4%R + 0.001Ω).

• Operating Temperature Range: -55°C ~ +155°C.

• Terminal Installation: M4/M5 screw, maximum torque 2Nm.

• Resistor Mounting: M4 screw, maximum torque 1.8Nm.
