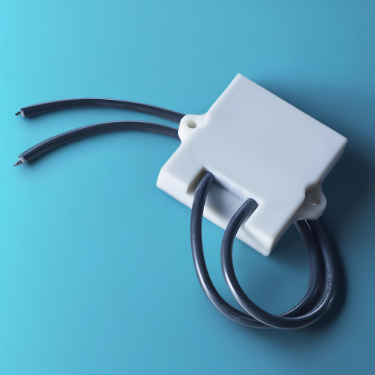

600W Wiring Harness Planar Thick Film, Non-inductive High-power Resistor

Technical Features

• Base Center Temperature: ≤85°C

• Rated Power: 600W

• Special Design: Low-height external structure

• Insulated Leads: Two insulated leads

• Internal Resistance Structure: Provides 6 types of internal resistance structures

• Raw Materials: Passed UL94-V0

Specifications

• Resistance Range: 0.5Ω ~ 1MΩ

• Tolerance: ±5% ~ ±10%

• Temperature Coefficient: ±150ppm/°C (25°C ~ 105°C), other temperature coefficients available upon request

• Rated Power: 85°C rated power, 600W, maximum operating voltage not exceeding 5,000VDC.

• Short-term Overload: 1000W, 70°C, 10 seconds, ΔR ≤ ±(0.4%R + 0.001Ω).

• Peak Current: Under low resistance and narrow pulse conditions, up to 1500Amp.

• Dielectric Withstand Voltage: 6kVrms, 50Hz, 1 minute, maximum 12kVrms or 23KVDC upon request.

• Partial Discharge: 4kVrms, <10pC; maximum 7kVrms upon request.

• Insulation Resistance: 500V, minimum 1GΩ.

• Creepage Distance: Minimum 42mm.

• Clearance: Minimum 14mm.

• Inductance: ≤80nH.

• Distributed Capacitance (Mass): ≤110pF.

• Distributed Capacitance (Parallel): ≤40pF.

• Moisture Resistance: 56 days/40°C, RH ≥ 95%, ΔR ≤ ±(0.25%R + 0.001Ω).

• Temperature Cycle: -55°C/+125°C (each 0.5h), 5 cycles, ΔR ≤ ±(0.2%R + 0.001Ω).

• High-frequency Vibration: MIL-Std-202, method 204, condition D, ΔR ≤ ±(0.2%R + 0.001Ω).

• Power Endurance: Rated power 1,000 hours, base temperature 85°C, ΔR ≤ ±(0.4%R + 0.001Ω).

• Operating Temperature Range: -55°C ~ +155°C.

• Terminal Installation: M4/M5 screw, maximum torque 2Nm.

• Resistor Mounting: M4 screw, maximum torque 1.8Nm.
