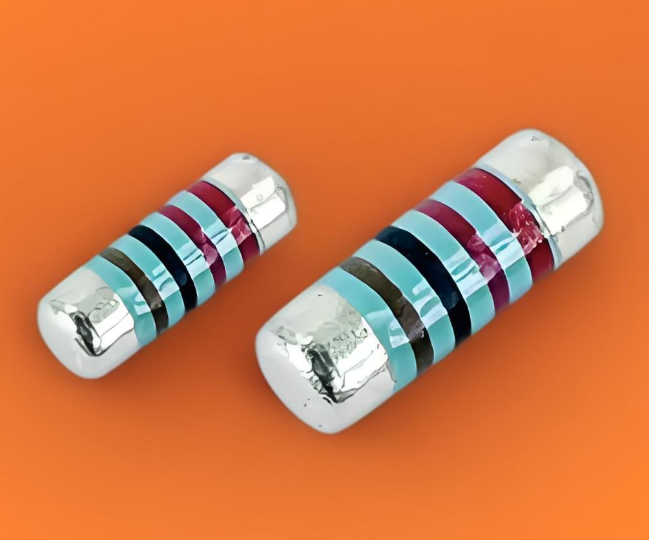

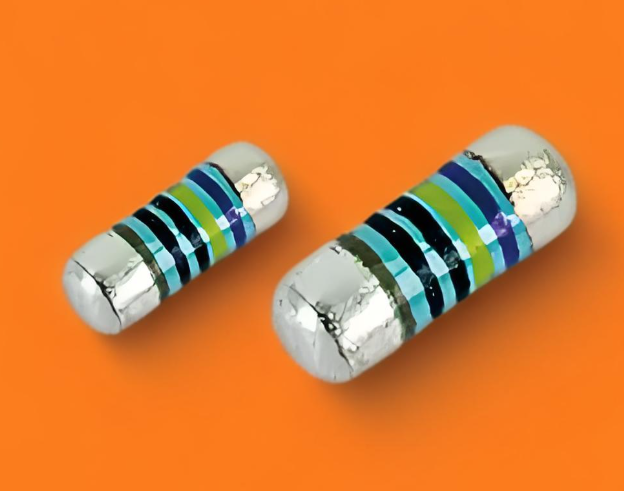

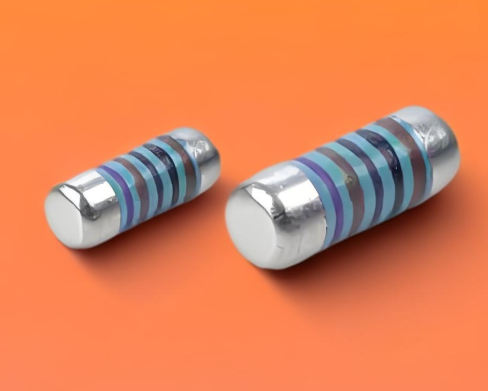

Automotive Grade/Vehicle Grade Metal Film MELF Resistor

The Metal Film MELF (Metal Electrode Leadless Face) resistor features a cylindrical appearance. The 0102 MELF style offers a power rating of 0.2 watts with a resistance range from 0.22 ohms to 2.2 million ohms, while the 0204/0207 MELF style boasts higher power ratings, ranging from 0.25 watts to 0.5 watts, and a broader resistance range, spanning from 0.47 ohms to 10 million ohms. Both types share the same dimensions as flat chip resistors (0805 package) and provide superior reliability, stability, and better heat dissipation compared to chip resistors. Furthermore, they possess a robust mechanical structure capable of enduring vibration and thermal shock. These resistors are AEC-Q200 certified and, due to their enhanced reliability and stability, are particularly suited for use in vehicle designs.

Type	Body Length (L, mm)	Cap Diameter (D1, mm)	Body Diameter (D2, mm)	Soldering Spot (B, mm)	Net Weight Per 1000 pcs
0.2W	2.1 ± 0.1	1.1 ± 0.1	D1 + 0.02/ -0.1	0.5 Min.	7 grams
1/4W	3.52 ± 0.15	1.35 ± 0.1	D1 + 0.02/ -0.15	0.6 Min.	17 grams
1/2W	5.90 ± 0.20	2.20 ± 0.1	D1 + 0.02/ -0.2	1.0 Min.	66 grams

Power Rating (at 70°C)	Maximum Working Voltage	Maximum Overload Voltage	Minimum Resistance	Maximum Resistance	Resistance Tolerance	Available Resistance Values
0.2W	150V	300V	0, 100Ω	22KΩ	±0.5%~±5%	E - 192/E - 24
1/4W	200V	400V	0.47Ω	10MΩ	±1%	E - 96
1/2W	300V	500V	0.47Ω	10MΩ	±2%, ±5%	E - 48/E - 24

Characteristics	Limits
Operating Temperature Range, °C	-55 ~ +125
Insulation Resistance, MΩ	>10⁴
Tin Whisker (JESD201 Temperature Cycling & High Temp. / Humidity Storage), μm	<5
Failure Rate in Time, pcs / 10⁹ device hours	<1

Not applicable to all resistance values. Please check with us regarding the PPM of specific resistance value(s).
