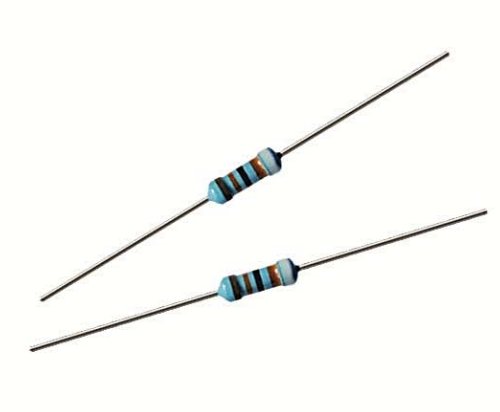

MZ60 metal-film thermistors

Product Features

Linearly positive temperature - coefficient (TCR), with resistance changing linearly with temperature.
Rapid thermal response time.
Blue encapsulation, color - code marking, and available in blister - tape and lead - forming.
Linearly positive TCR.
Rapid thermal response speed.
Blue coating, color code marking, blister - tape and lead forming available.

Applications

Suitable for temperature - compensation thermal protection in various electronic circuits.
Suitable for the temperature compensation thermal protection.

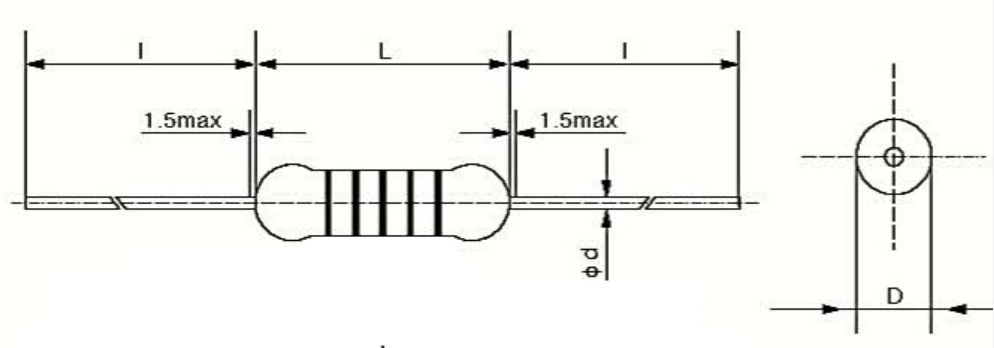

Dimensions (mm)

Type	Lmax	Dmax	d ± 0.05	L ± 3
MZ60 - 1/6W	3.8	2.1	0.5	28.0
MZ60 - 1/4W	7.0	2.5	0.6	28.0

Technical Specifications

Type	Rated Power	Max Working Voltage	Insulate voltage	TCR (ppm/°C)	Tolerances	Resistance Range	Rating AMB. temp	Operating Temp. range
MZ60 - 1/6	1/6W	150V	250V	1000 - 2400	multirow{2}{*}{makecell{± 2%± 5%± 10%}}	4.7Ω - 1KΩ	multirow{2}{*}{70°C}	multirow{2}{*}{-55°C - 125°C}
MZ60 - 1/4	1/4W	250V	350V	500 - 3900		1Ω - 2KΩ

Performance Indicators

Test Item	Specifications	Test Method
Rapid change of temperature	ΔR ≤ ± (1%R + 0.05Ω)	-55°C/125°C, 5 cycles
Leaching	ΔR ≤ ± (1%R + 0.05Ω)	350 ± 10°C, 3.5 ± 0.5S
Climatic category	ΔR ≤ ± (3%R + 0.1Ω)	275°C, 16h/55°C, RH93 ± 3%, 24h/ - 55°C, 2h/8.5kpa, 15 - 35°C, 1h
Endurance at 70°C	ΔR ≤ ± (3%R + 0.1Ω)	70°C, PR, 1000h
