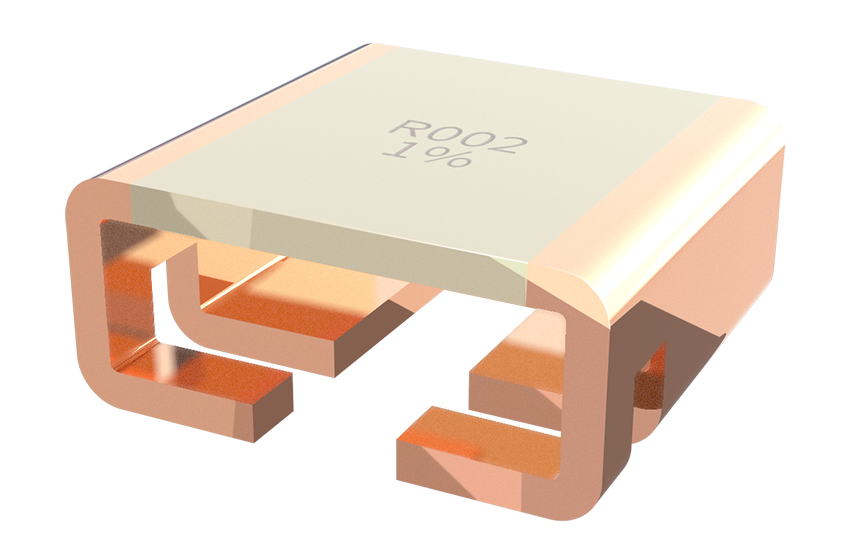

Customizable Automotive-Grade High-Precision Four-Terminal Shunt Resistors (1216)

Feature	Details
Tolerance	±5%, ±2%, ±1%, and ±0.5%
Operating Temperature Range	-65°C to 170°C
Structure	Electron beam welding
Pulse Application	Ideal for pulse application
Inductance	<3 nH
Compliance	RoHS Compliant, AEC-Q200 qualified
Customization	Special specifications can be customized
Applications	Frequency conversion drive, Servo drive system, High current battery management system, Automobile electronic control unit, Automobile oil pump drive, DC/DC, DC/AC power modules, Automatic control system, Industrial instrument and equipment

Size (mm)	W	H	B	D	C	P	T
1216	3.0±0.2	1.8±0.2	0.95±0.3	0.3±0.1	4.0±0.2	0.7±0.1	0.5±0.1

PCB Type	w	b	f	e	p	t
1216	3.6	0.6	1.5	2.95	0.5	0.7

Size	Element Material	Resistance (mΩ)	TCR (ppm/°C)	P130°C (W)
1216	S	0.5	±50	5
	M	1	±50	3

Endurance Test	Additional Requirements	Reference	Limits
Temperature Cycling	1000 Cycles (-55°C to +150°C)	JESD22 Method JA-104	±0.5%
High Temperature Exposure	100 hrs @ T=170°C, Unpowered	MIL-STD-202 Method 108	±0.5%
Biased Humidity	1000 hrs @ 85°C/85% RH, 10% of operating power	MIL-STD-202 Method 103	±0.5%
Operational Life	Condition D Steady State TA=125°C at rated power	MIL-STD-202 Method 108	±0.5%
Solderability	245°C ±5°C, 5s ±0.5s, 95% Coverage Minimum	MIL-STD-202 Method 08H
Resistance to Soldering Heat	260°C ±5°C, 10s ±1s	MIL-STD-202 Method 210	±0.5%
Short Time Overload	5x Rated power for 5s	MIL-STD-202 Method 301	±0.5%
