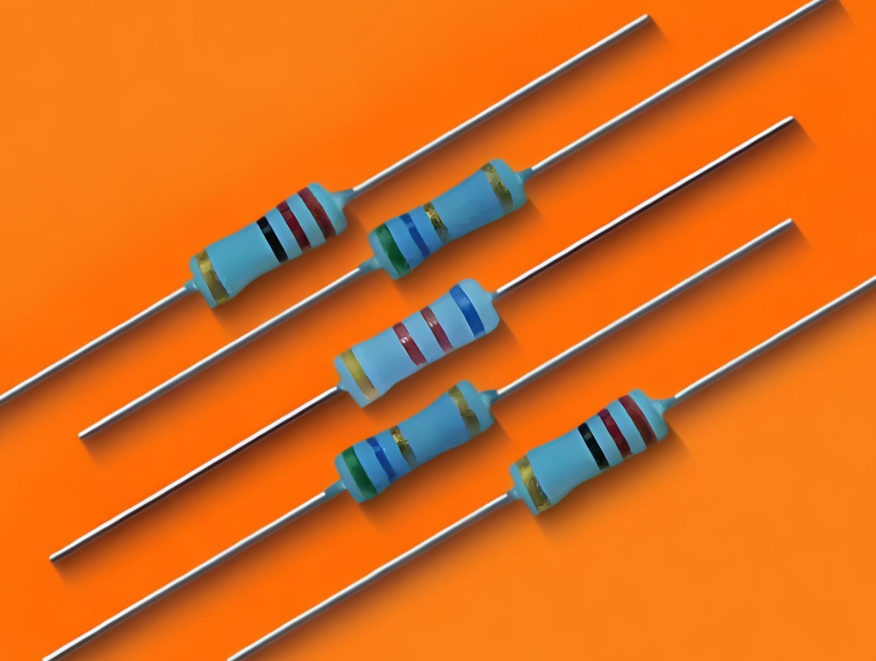

Metal Oxide Film Fixed Resistor

Type	Body Length (L, mm)	Body Diameter (D, mm)	Lead Wire Length (H, mm)	Lead Wire Diameter (d, mm)	Net Weight Per 1000 Pcs
1/2W	9.00 ± 1.0	3.2 ± 0.2	28 ± 3.0	0.6 ± 0.03	340 Grams
1W	11.0 ± 1.0	4.0 ± 0.5	28 ± 3.0	0.7 ± 0.03	500 Grams
2W	13.5 ± 1.0	5.0 ± 0.5	30 ± 3.0	0.8 ± 0.03	1050 Grams
3W	15.5 ± 1.0	5.5 ± 0.5	30 ± 3.0	0.8 ± 0.03	1200 Grams
4W	19.0 ± 1.0	6.0 ± 0.5	30 ± 3.0	0.8 ± 0.03	1620 Grams
5W	19.0 ± 1.0	8.0 ± 0.5	30 ± 3.0	0.8 ± 0.03	3100 Grams
6W	24.0 ± 1.0	8.0 ± 0.5	35 ± 3.0	0.8 ± 0.03	3700 Grams
7W	31.5 ± 1.0	8.0 ± 0.5	35 ± 3.0	0.8 ± 0.03	4000 Grams

Power Rating (at 70°C)	Maximum Voltage Working	Maximum Overload Voltage	Minimum Resistance	Maximum Resistance	Resistance Tolerance	Available Resistance Values
1/2W	350V	600V	0.12Ω	120KΩ	±5%	E - 24
1W	350V	600V	0.12Ω	120KΩ	±5%	E - 24
2W	350V	700V	0.12Ω	150KΩ	±5%	E - 24
3W	350V	700V	0.12Ω	150KΩ	±5%	E - 24
4W	450V	800V	0.12Ω	180KΩ	±5%	E - 24
5W	500V	1000V	0.12Ω	200KΩ	±5%	E - 24
6W	500V	1000V	0.12Ω	220KΩ	±5%	E - 24
7W	600V	1200V	0.22Ω	220KΩ	±5%	E - 24

Characteristics	Limits
Temperature Coefficient, PPM / °C*	Typically ±300
Operating Temperature Range, °C	-55 ~ +200
Insulation Resistance, MΩ	10⁴

Not applicable to all resistance values. Please check with us regarding the PPM of specific resistance value(s).
