Power Metal Film Resistor

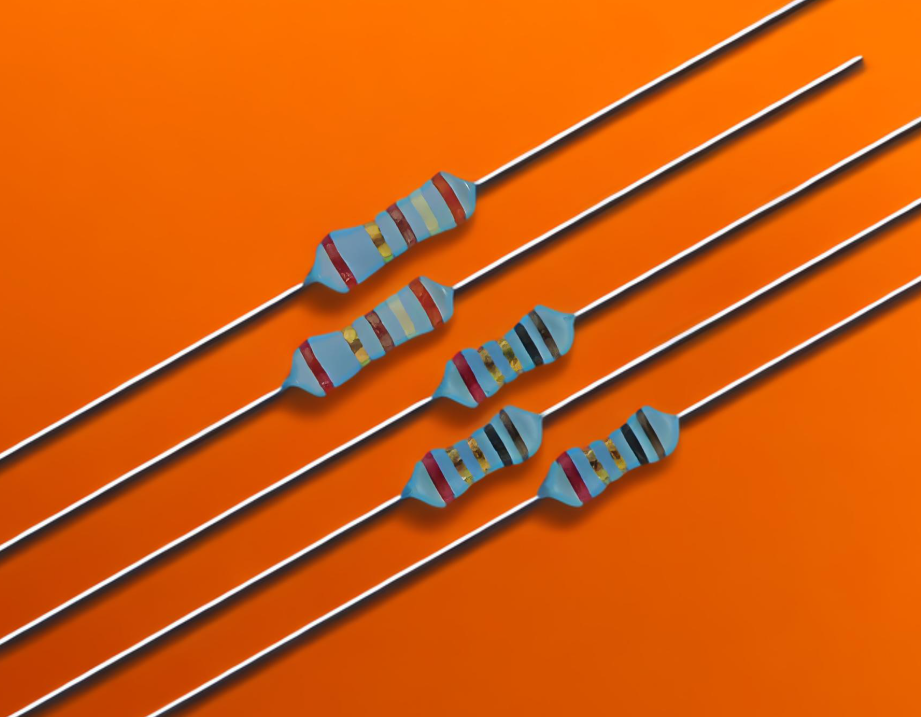

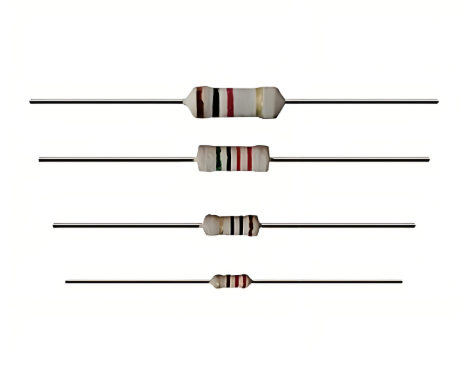

The Power Metal Film Resistor is a versatile component with a power rating that spans from 0.6W to 2W, providing flexibility for a range of applications. Its resistance range, from 0.22Ω to 1MΩ, allows for precise control over electrical circuits. By default, the tolerance is set at ±5%, ensuring high accuracy and reliability in performance. The temperature coefficient of ±250PPM/℃ guarantees stability across a wide temperature range, minimizing drift and maintaining consistent resistance values.

In addition to its technical specifications, the Power Metal Film Resistor complies with RoHS requirements, ensuring that it does not contain harmful substances such as lead, mercury, cadmium, and other substances of very high concern identified by the European Chemicals Agency. This makes it an environmentally friendly choice for electronic designers and manufacturers. With its combination of high performance and eco-friendly attributes, the Power Metal Film Resistor is an excellent choice for a wide range of applications, from consumer electronics to industrial systems.

Type	Body Length (L, mm)	Body Diameter (D, mm)	Lead Wire Length (H, mm)	Lead Wire Diameter (d, mm)	Net Weight Per 1000 Pcs
0.6W-1W	6.00 ± 1.0	2.4 ± 0.2	26 ± 3.0	0.60 ± 0.02	220 Grams
1.2W-2W	11.0 ± 1.0	4.0 ± 0.5	28 ± 3.0	0.80 ± 0.03	220 Grams

Power Rating (at 70°C)	Maximum Working Voltage	Maximum Overload Voltage	Minimum Resistance	Maximum Resistance	Resistance Tolerance	Available Resistance Values
0.6W	350V	500V	0.22Ω	0.912Ω	±6%	E - 24
1W	350V	500V	1Ω	1MΩ	±1%~±5%	E - 96/E - 24
1.2W	500V	700V	0.332Ω	0.912Ω	±5%	E - 24
2W	500V	700V	1Ω	1MΩ	±1%~±5%	E - 96/E - 24

Characteristics	Limits
Dielectric Withstanding Voltage, VAC or DC	500
Temperature Coefficient, PPM / °C*	±250
Operating Temperature Range, °C	-55 ~ +150
Insulation Resistance, MΩ	10⁴

Not applicable to all resistance values. Please check with us regarding the PPM of specific resistance value(s).
