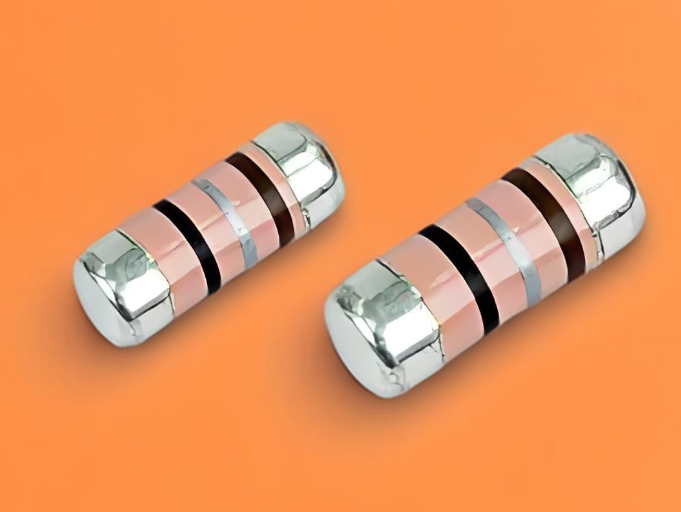

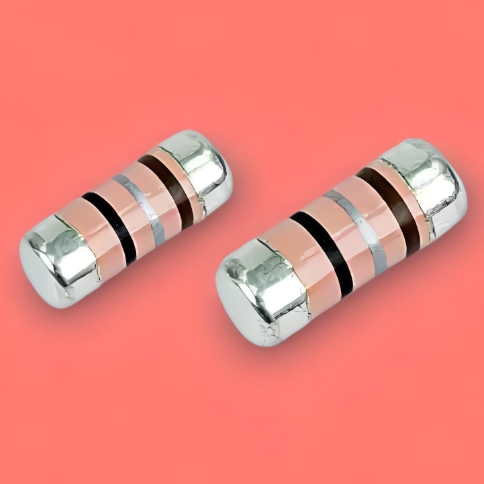

Current Sense MELF Resistor SMD, Low ohmic value

The Current Sense MELF Resistor offers a power rating between 0.5W and 3W and resistance values ranging from 10m ohms to 511m ohms. It features an SMD (surface-mount device) structure that ensures superior solderability. This resistor excels in heat dissipation compared to chip resistors, making it particularly suitable for air cooling applications. Furthermore, its robust mechanical structure enables it to withstand vibrations and thermal shocks.

Type	Body Length (L, mm)	Cap Diameter (D1, mm)	Body Diameter (D2, mm)	Soldering Spot (B, mm)	Net Weight Per 1000 pcs
1/2W	3.52 ± 0.15	1.35 ± 0.1	D1 + 0.02/ -0.15	0.6 Min.	17 grams
1W	5.90 ± 0.20	2.20 ± 0.1	D1 + 0.02/ -0.2	1.0 Min.	66 grams
2W	8.50 ± 0.50	3.00 ± 0.2	D1 + 0.05/ -0.35	1.3 Min.	186 grams
3W	10.50 ± 0.50	4.00 ± 0.5	D1 + 0.05/ -0.45	1.6 Min.	446 grams

Power Rating (at 70°C)	Up Grade Power Rating***	Maximum Working Voltage	Maximum Overload Voltage	Minimum Resistance	Maximum Resistance	Resistance Tolerance	Available Resistance Values
1/2W	0.8W	√PR	2.5√PR	10Ω	510Ω	±1%~±5%	E - 24/E - 96
1W	1.6W	√PR	2.5√PR	10Ω	510Ω	±1%~±5%	E - 24/E - 96
2W	-	√PR	2.5√PR	10Ω	510Ω	±1%~±5%	E - 24/E - 96
3W	-	√PR	2.5√PR	10Ω	510Ω	±1%~±5%	E - 24/E - 96

*Special sizes, values, and specifications not listed available on special order.

Characteristics	Limits
Temperature Coefficient, PPM / °C*	±50, ±100, ±200, ±300, ±600
Operating Temperature Range, °C	-55 ~ +155
Insulation Resistance, MΩ	>10⁴
Failure Rate in Time, pcs / 10⁹ device hours	<1.5
Tin Whisker (JESD201 Temperature Cycling & High Temp. / Humidity Storage), μm	<5

Not applicable to all resistance values. Please check with us regarding the PPM of specific resistance value(s).
