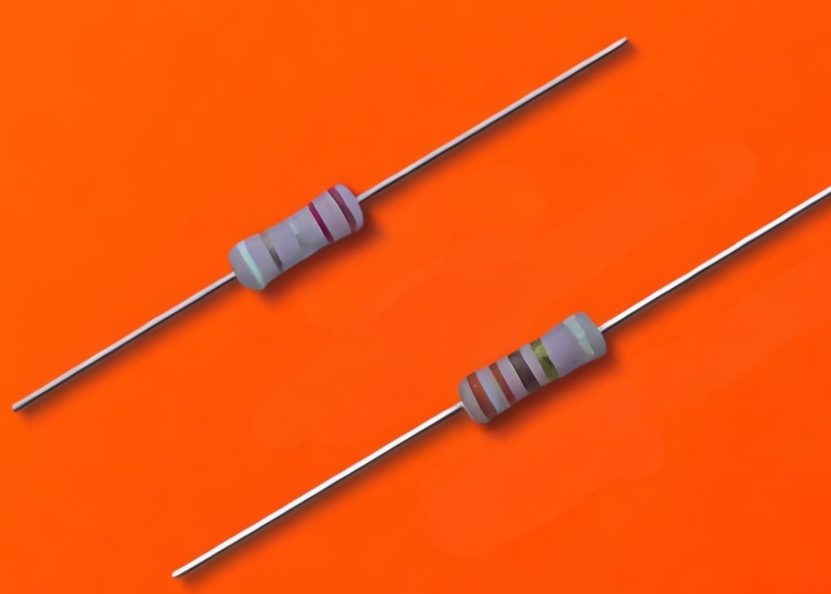

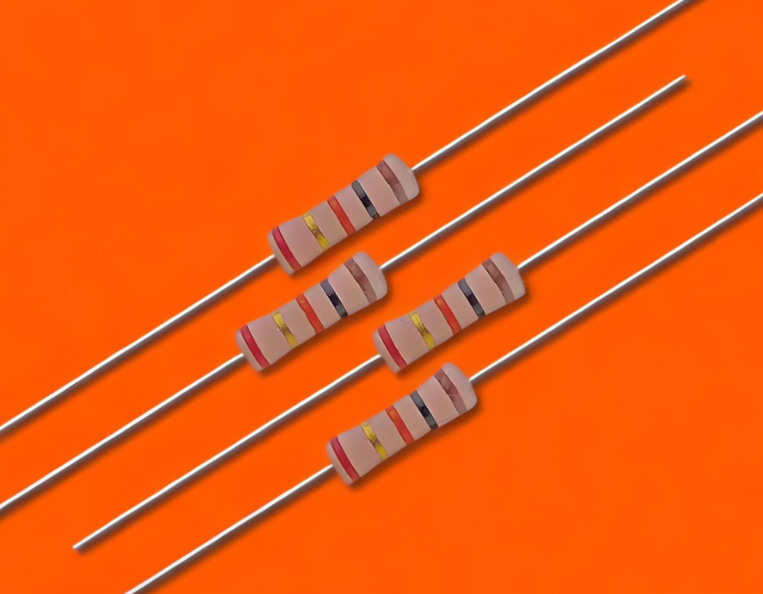

Pulse Safety Resistor

The pulse safety resistor boasts a wide range of rated powers, from 0.25W to 6W, and resistance values precisely spanning from 100mΩ to 1MΩ. This resistor is crafted using an advanced ceramic substrate, coated with a special composite film and further enhanced with explosion-proof multilayer coating that meets UL 94 V-0 standards.

It demonstrates exceptional surge resistance, effectively absorbing pulses directly or inductively cross-coupled in urban power lines, thus providing robust protection for electrical equipment or components from accidental impacts. Notably, the pulse safety resistor also serves as a cost-effective alternative to wirewound resistors, offering users a more economically viable solution.

Characteristics

1. Dielectric Withstanding Voltage, VAC or DC

• 1/2W: 350V

• 1W to 2W: 600V

• 3W to 6W: 1000V

2. Temperature Coefficient, PPM / °C

• Typically ±300

3. Operating Temperature Range, °C

• -55 ~ +200

4. Insulation Resistance, MΩ

• 10⁴

Limits

1. Dielectric Withstanding Voltage, VAC or DC

• 1/2W: 350V

• 1W to 2W: 600V

• 3W to 6W: 1000V

2. Temperature Coefficient, PPM / °C

• Typically ±300

3. Operating Temperature Range, °C

• -55 ~ +200

4. Insulation Resistance, MΩ

• 10⁴

Note:

• This is not applicable to all resistance values. Please check with us regarding the PPM of specific resistance values.
