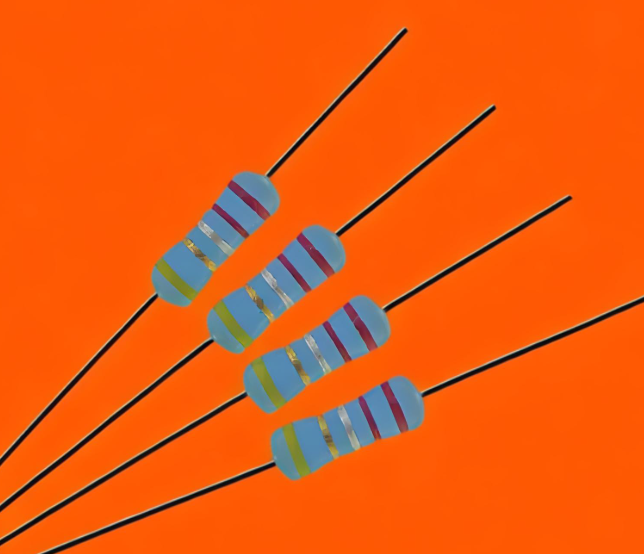

Fusible Fixed Resistor

This axial-lead fusible resistor boasts excellent electrical and thermal performance. With a power rating ranging from 0.25W to 3W and a resistance value extending from 2.2 ohms to 15K ohms, it fully meets the design requirements of various circuits. Notably, this resistor features a flameproof characteristic equivalent to the overload test specified in UL 1412, effectively preventing fire risks under extreme conditions and ensuring the safety of circuit operation. As a special resistor designed specifically for circuit protection, it can quickly fuse and cut off the current when the circuit experiences overload or short-circuit, thereby protecting other components in the circuit from damage.

Type	Body Length (L, mm)	Body Diameter (D, mm)	Lead Wire Length (H, mm)	Lead Wire Diameter (d, mm)	Net Weight Per 1000 Pcs
1/4W	6.5 ± 0.5	2.4 ± 0.2	26 ± 3.0	0.55 ± 0.03	220 Grams
1/3W	6.5 ± 0.5	2.4 ± 0.2	26 ± 3.0	0.55 ± 0.03	220 Grams
1/2W	6.5 ± 0.5	2.4 ± 0.2	26 ± 3.0	0.55 ± 0.03	220 Grams

Power Rating (at 70°C)	Maximum Working Voltage	Minimum Resistance	Maximum Resistance	Resistance Tolerance	Available Resistance Values
1/4W	250V	2.2Ω	15kΩ	±5%	E - 24
1/3W	250V	2.2Ω	15kΩ	±5%	E - 24
1/2W	350V	2.2Ω	10kΩ	±5%	E - 24

Characteristics	Limits
Dielectric Withstanding Voltage, VAC or DC	500
Temperature Coefficient, PPM / °C*	±200
Operating Temperature Range, °C	-55 ~ +155
Insulation Resistance, MΩ	10⁴

Not applicable to all resistance values. Please check with us regarding the PPM of specific resistance value(s).
