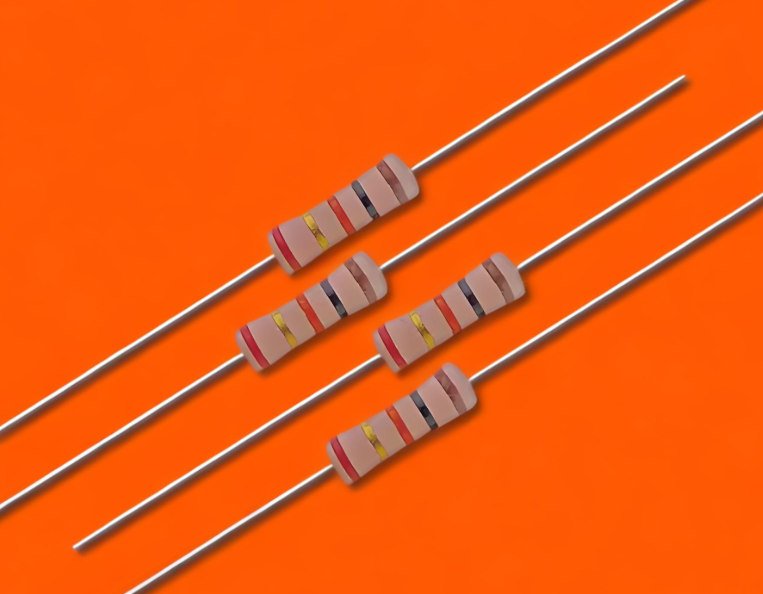

Pulse Protective Resistor

The Pulse Protection Resistor (PPR Series) boasts a rated power range of 0.25W to 2W and a resistance span from 2.2 ohms to 4.7M ohms. It is resistant to the "sintering effect" caused by high surges, which would otherwise drastically reduce its resistance value. Furthermore, it features a shape-retaining, multilayer, non-flammable coating. This offers superior performance in all aspects compared to carbon composition resistors. Consequently, it serves as a viable replacement for carbon composition resistors such as those from KOA/HPC.

Type	Body Length (L, mm)	Body Diameter (D, mm)	Lead Wire Length (H, mm)	Lead Wire Diameter (d, mm)	Net Weight Per 1000 Pcs
1/4W	6.50 ± 1.0	2.6 ± 0.3	26 ± 3.0	0.55 ± 0.02	300 Grams
1/2W	6.50 ± 1.0	2.6 ± 0.3	26 ± 3.0	0.55 ± 0.02	300 Grams
1/2Ws	9.00 ± 1.0	3.2 ± 0.2	26 ± 3.0	0.70 ± 0.03	340 Grams
1W	11.0 ± 1.0	4.0 ± 0.5	28 ± 3.0	0.70 ± 0.03	500 Grams
2W	13.5 ± 1.0	5.0 ± 0.5	30 ± 3.0	0.80 ± 0.03	1050 Grams

Power Rating (at 70°C)	Maximum Working Voltage	Maximum Permissible Surge Voltage	Minimum Resistance	Maximum Resistance	Resistance Tolerance	Available Resistance Values
1/4W	250V	7kV	10Ω	4.7MΩ	±5%	E-24
1/2W	250V	7kV	10Ω	4.7MΩ	±5%	E-24
1/2W(s)	350V	10kV	2.2Ω	4.7MΩ	±5%	E-24
1W	350V	15kV	10Ω	4.7MΩ	±5%	E-24
2W	400V	20kV	10Ω	4.7MΩ	±5%	E-24

Characteristics

Temperature Coefficient, PPM / °C

±750, ±1200

Operating Temperature Range, °C

-55 to +155

Insulation Resistance, MΩ

10⁴

Limits

Not applicable to all resistance values. Please check with us regarding the PPM of specific resistance values.
