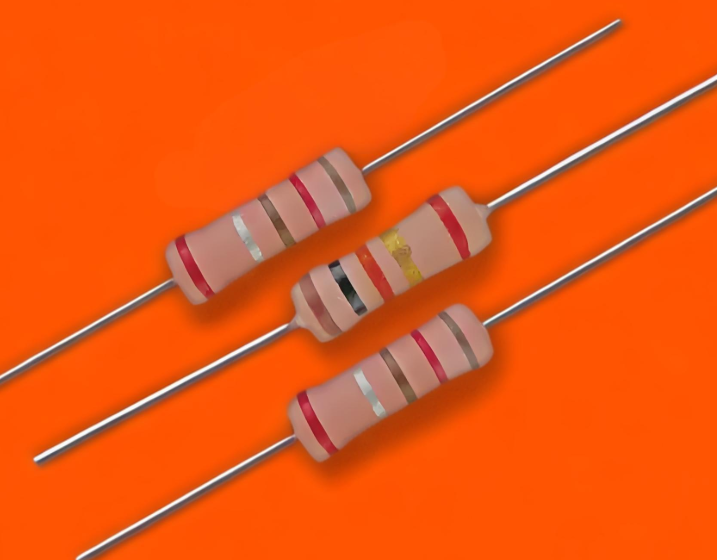

Surge Safety Resistor

The surge protection resistor boasts a rated power range of 0.25W to 5W and a resistance span from 10 ohms to 330K ohms. Designed as a replacement for carbon or ceramic composition resistors, this product is ideal for surge protection applications such as fuel ignition systems, power charging and discharging circuits, and ECG cables. It effectively absorbs harmful surge energy, thereby preventing the risks of fires and circuit damage caused by surge energy. Additionally, it features an explosion-proof coating. The product complies with RoHS requirements and is free of substances identified as "highly concerned" by the European Chemicals Agency.

Type	Body Length (L, mm)	Body Diameter (D, mm)	Lead Wire Length (H, mm)	Lead Wire Diameter (d, mm)	Net Weight Per 1000 Pcs
1/4W	6.50 ± 1.0	2.6 ± 0.3	26 ± 3.0	0.55 ± 0.02	300 Grams
1/2W	9.00 ± 1.0	3.2 ± 0.2	26 ± 3.0	0.60 ± 0.03	340 Grams
1W	11.0 ± 1.0	4.0 ± 0.5	28 ± 3.0	0.70 ± 0.03	500 Grams
2W	15.5 ± 1.0	5.0 ± 0.5	30 ± 3.0	0.80 ± 0.03	1150 Grams
3W	15.5 ± 1.0	5.5 ± 0.5	30 ± 3.0	0.80 ± 0.03	1200 Grams

Power Rating (at 70°C)	Maximum Working Voltage	Maximum Permissible Surge Voltage	Minimum Resistance	Maximum Resistance	Resistance Tolerance	Available Resistance Values
1/4W	250V	10kV	10Ω	180KΩ	±5%	E-24
1/2W	300V	15kV	10Ω	220KΩ	±5%	E-24
1W	350V	20kV	10Ω	220KΩ	±5%	E-24
2W	400V	22.5kV	10Ω	240KΩ	±5%	E-24
3W	400V	25kV	10Ω	240KΩ	±5%	E-24

Operating Temperature Range: -55 to +150 °C
Insulation Resistance: >10⁴ MΩ
Note: Not applicable to all resistance values. Please check with us regarding the PPM of specific resistance values.
