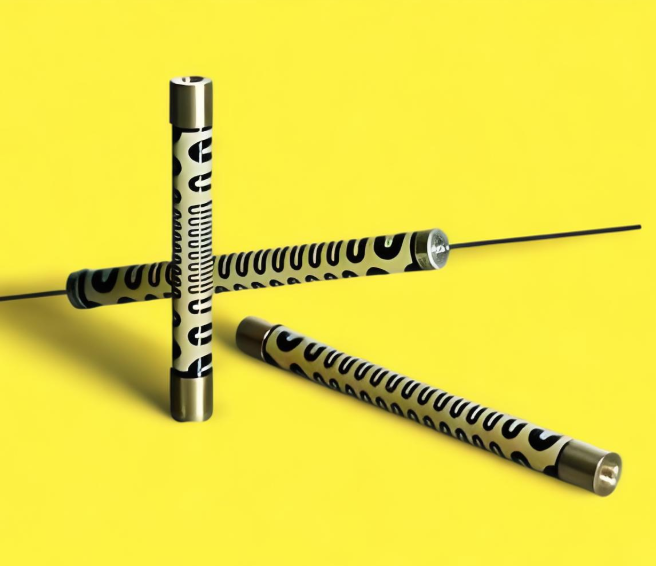

High-Voltage Resistors Surge test up to 325kV (1.2/50µs) under potting surrounding

Product Features

• Operating Voltage: Up to 60 kV.

• Non-Inductive Design: The product features a non-inductive design.

• ROHS Compliant: The product meets ROHS environmental standards.

Technical Specifications

• Resistance Value: 500 Ω to 1 GΩ (other values available upon special request).

• Resistance Tolerance: ±1% to ±10%.

• Temperature Coefficient: ±100 ppm/°C within the range of +25°C to +85°C (can be reduced to ±15 ppm/°C upon detailed inquiry).

• Maximum Working Voltage: 60 kV DC.

• Dielectric Strength: Based on coating, ≤ 10 kV DC.

• Insulation Resistance: 10 GΩ min at 1,000 V DC.

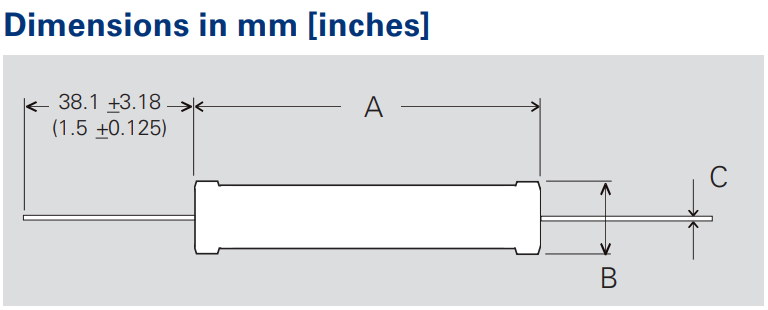

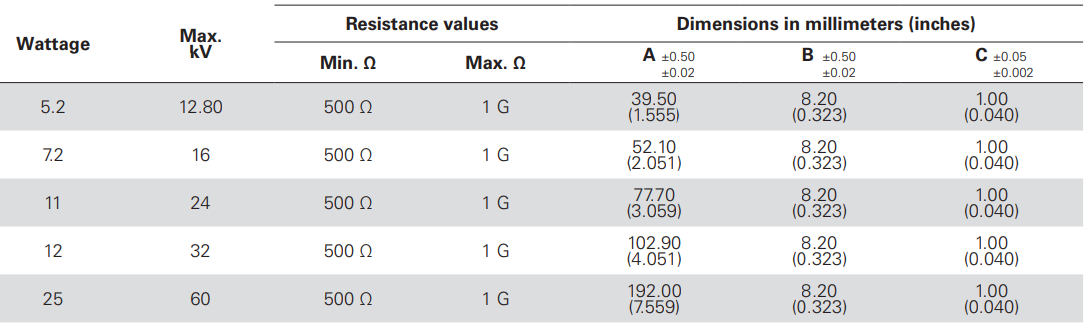

• Power Rating: Refer to the model specifications below.

• Load Life: 1,000 hours at rated power and 70°C, with a maximum ΔR of 0.20%.

• Load Life Stability: 0.20% per 1,000 hours at 70°C.

• Moisture Resistance: According to MIL-Std-202, Method 106, with a maximum ΔR of 0.4%.

• Thermal Shock: According to MIL-Std-202, Method 107, Condition A, with a maximum ΔR of 0.20%.

• Encapsulation: 2-component epoxy coating for oil immersion and wave soldering applications (other coatings available, inquire for details).

• Lead Material: Oxygen-Free High Conductivity (OFHC) copper, tin-plated.

• Other Terminals Available: Screw caps (6/32", M4, custom), and gold-plated leads with a diameter of 0.8 mm are available.

• Weight: Depends on the model number (inquire for details).
