ESD Surge MELF Absorber

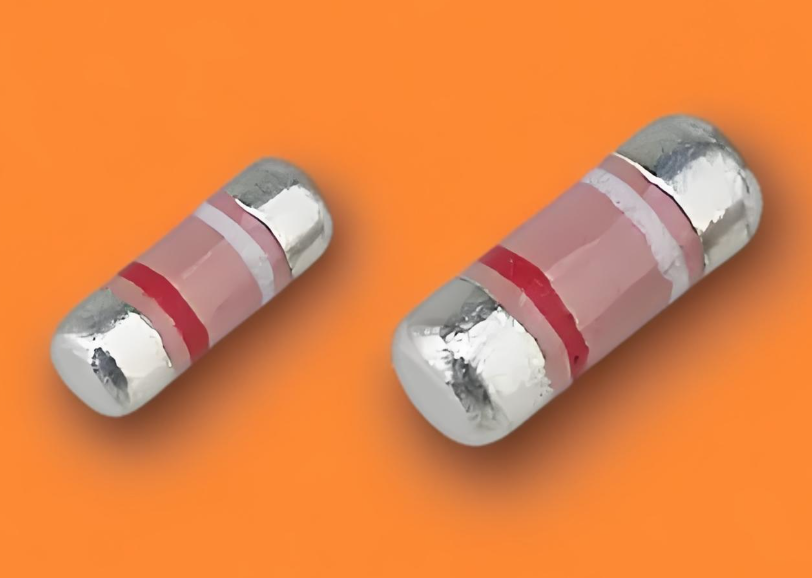

The ESD Surge MELF Absorber is designed with an SMD (surface-mount device) structure that safeguards electronics by initiating sparking across its porous layer whenever a surge exceeds the specified spark-over voltage. This resistor stands out for its exceptional reliability and stability, offering superior heat dissipation compared to chip resistors. Additionally, it boasts a robust mechanical structure capable of enduring vibrations and thermal shocks. Due to these attributes, the ESD Surge MELF Absorber is ideal for applications in telephones, fax machines, and XDSL systems.

TypeBody Length (L, mm)Cap Diameter (D1, mm)Body Diameter (D2, mm)Soldering Spot (B, mm)Net Weight Per 1000 pcs
2043.52 ± 0.151.35 ± 0.1D1 + 0.02/ -0.150.6 Min.17 grams


Type NameColor CodeDC spark - over voltage
204White1300V ± 30%


CharacteristicsLimits
Dielectric Withstanding Voltage, VAC or DC500
Surge Current Capacity60A @20μs (80A @2/10μs)
Operating Temperature Range, °C-55 ~ +155
Insulation Resistance, MΩ (Measured with DC 500V)>100
Capacitance≤ 1pF
Activation time≤ 1ns
