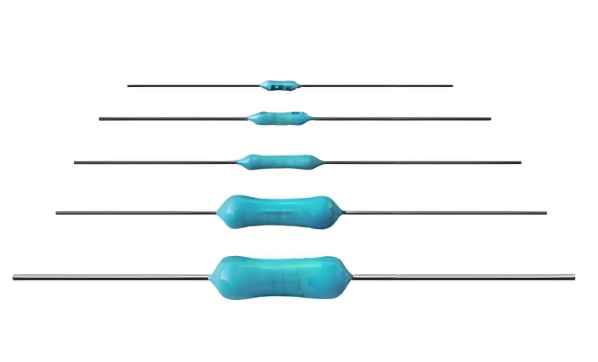

TYRE High - Stability Precision Metal Film Resistors

Characteristics

High stability, high precision, low temperature coefficient of resistance (TCR)
Temperature range: - 65°C - 150°C
Stability: ±0.5%, 125°C, 1000h
Coated style

Application Area

RE - type resistors have a wide resistance - value range, high precision, high stability, small temperature drift, and small size. They are widely used in precision measurement systems, current and voltage comparison standards, and constant - current and constant - voltage circuit components.

Dimensions (mm)

Size	L±0.3	D±0.3	C±2	d±0.05
RE1/8	3.80	1.50	26	0.50
RE1/6	6.20	1.80	36	0.60
RE1/4	9.10	2.10	36	0.60
RE1/2	13.1	4.00	36	0.60
RE3/4	15.5	5.00	36	0.80

Technical Specifications

TYPE	RE1/8	RE1/6	RE1/4	RE1/2	RE3/4
TYPE OF GJB1929 - 1994	RJ52△	RJ53△	RJ54△	RJ55△	RJ56△
Power Rating at 70°C (W)	0.15	0.25	0.50	0.75	1.0
Power Rating at 100°C (W)	0.10	0.15	0.25	0.50	0.75
Power Rating at 125°C (W)	0.05	0.10	0.125	0.25	0.50
Limiting Element Voltage (V)	200	200	250	300	350
Resistance Range (Ω) (Military - standard Certification Range)	10R ~ 796K	10R ~ 2M	10R ~ 2M	10R ~ 3M	10R ~ 3M
Tolerance Range (Military - standard Certification Range)	B (±0.1%), C (±0.25%), D (±0.5%), F (±1.0%)
TC - Range (10⁻⁶/K) (Military - standard Certification Range)	C3(±25), C2(±50), C1(±100)
Resistance Range (Ω) (Available Range)	10R ~ 1M5	0R1 ~ 5M	0R1 ~ 10M	0R1 ~ 5M	0R1 ~ 10M
Tolerance Range (Available Range)	P (±0.02%), W (±0.05%), B (±0.1%), C (±0.25%), D (±0.5%), F (±1.0%)
TC - Range (10⁻⁶/K) (Available Range)	C7(±5), C6(±10), C5(±15), C4(±20), C3(±25), C2(±50), C1(±100)
