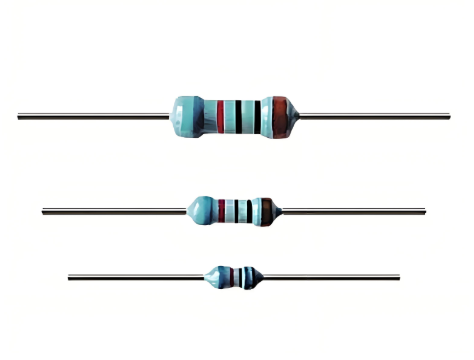

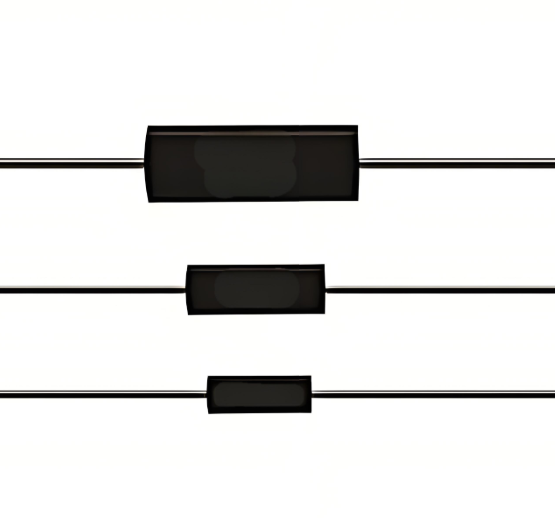

TYRJ23/24/25 Precision Metal Film Resistors

Features

Excellent high - frequency characteristic
Long - term stability
Low noise coefficient
Low TCR
High precision, high stability
Blue or grey flame - retardant coating, colour code marking available, tape - able

Applications

Suitable for electronic instruments, equipment, colour TVs, audio and other household appliances

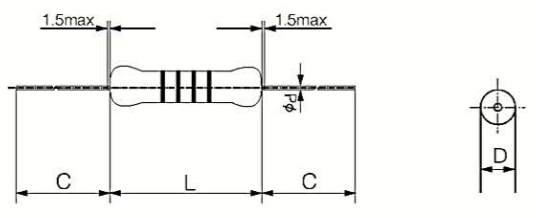

Dimensions (mm)

Size	Lmax	Dmax	d±0.05	C±3
TYRJ23	3.8	2.1	0.5	28.0
TYRJ24	7.0	2.5	0.6	28.0
TYRJ25	10.5	3.9	0.6	28.0

Technical Specifications

Type	Power Rating (W)	Max Working Voltage (V)	Insulate Voltage (V)	Resistance Range (Ω)	TCR(ppm/°C)	Tolerances	Rating.ambient.temp	Operating.ambient.range
TYRJ23	1/6	150	250	10 - 240K	±25	±0.5%	±70°C	-55°C - 155°C
TYRJ24	1/4	250	350	10 - 1M	±50	±1%	±70°C	-55°C - 155°C
TYRJ25	1/2	350	500	10 - 1M	±50	±1%	±70°C	-55°C - 155°C

Performance

Test Item	Specifications	Test Method
Solderability	≥95%	235 ± 5°C, 2 ± 0.5s
Short time overload	ΔR≤ ±(0.25%R + 0.05Ω)	2.5V<sub>R</sub>, 5s
Rapid change of temperature	ΔR≤ ±(0.25%R + 0.05Ω)	-55°C/155°C, 30min 5cycles
Leaching	ΔR≤ ±(0.25%R + 0.05Ω)	350 ± 10°C, 3.5 ± 0.5s
Climatic category	ΔR≤ ±(1%R + 0.1Ω)	125°C, 16h/55°C, RH93 ± 3%, 24h/-55°C, 2h/15 - 35°C, 8.5Kpa, 1h
Endurance at 70°C	ΔR≤ ±(1%R + 0.1Ω)	70 ± 2°C, P<sub>R</sub>1000h
