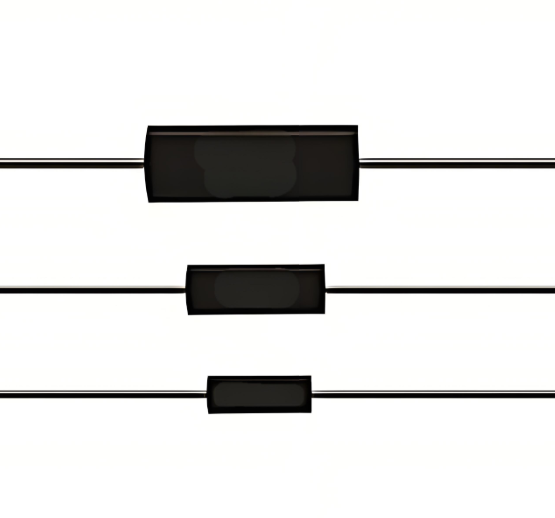

TYRJK(TYRN) High - Reliability Precision Metal Film Resistors

Characteristics

High reliability, high stability, high precision, moisture proof
Conform to GJB244A - 2001
Temp.range: - 65°C - 175°C
Stability: ±0.5%, 125°C, 2000h
Mold style

Application Area

TYRJ - type resistors have excellent characteristics such as wide working temperature range, wide resistance range, good temperature characteristics, good stability and high reliability, and are widely used in important fields such as aviation, aerospace, navigation, communication and automatic control.

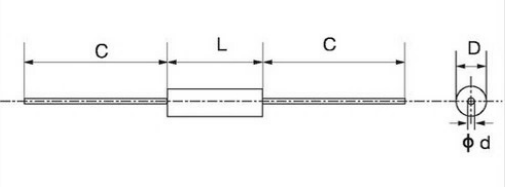

Dimensions (size)

Size	L	D	C	d
TYRJK52 TYRN50	3.9	1.8	26	0.50
TYRJK53 TYRN55	7.0	2.5	35	0.60
TYRJK54 TYRN60	10.0	3.4	35	0.60
TYRJK55 TYRN65	14.8	5.2	35	0.60
TYRJK56 TYRN70	18.3	6.5	35	0.80

Performance

Test Item	Standards	Test Method
Short Time Overload	≤ ±(0.20%R + 0.01Ω)	2.25 - 5 times rated power consumption, maximum voltage not exceeding 2 - times limit voltage, 1h
Temperature shock	≤ ±(0.20%R + 0.01Ω)	- 65°C - 150°C, 5 cycles, 0.5h
Low temp. Operation	≤ ±(0.15%R + 0.01Ω)	- 65°C, 1h, rated voltage not exceeding 200V, 45min
Dielectric Strength	≤ ±(0.15%R + 0.01Ω)	450V, 1min, 100v/s
Resistance to Solder	≤ ±(0.10%R + 0.01Ω)	260°C, 10s
Resistance to moisture	≤ ±(0.40%R + 0.01Ω)	- 10°C - 65°C, RH80 - 98%, 240h
Load life	≤ ±(0.50%R + 0.01Ω)	125°C, Pe, 2000h
Shock	≤ ±(0.20%R + 0.01Ω)	1000m/s², 6ms
Vibration	≤ ±(0.20%R + 0.01Ω)	10 - 2000Hz, 0.75mm, 200m/s²

LINE

WECHAT

SKYPE

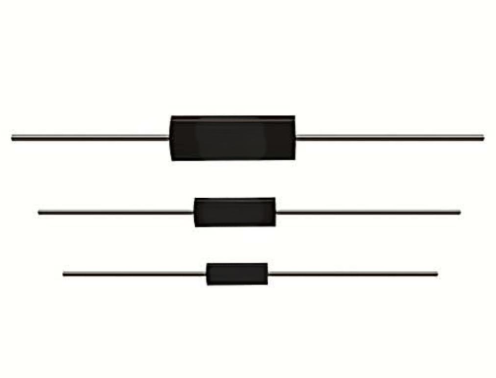

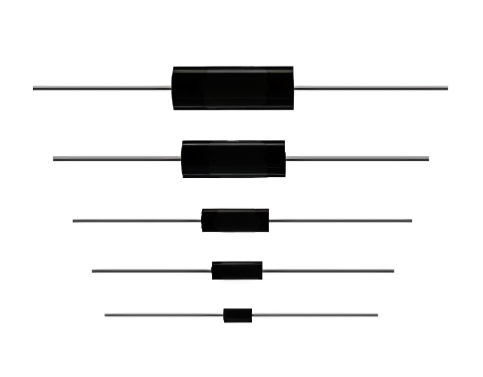

In addition to TYRJK(TYRN) High - Reliability Precision Metal Film Resistors, we also focus on the following resistors:
