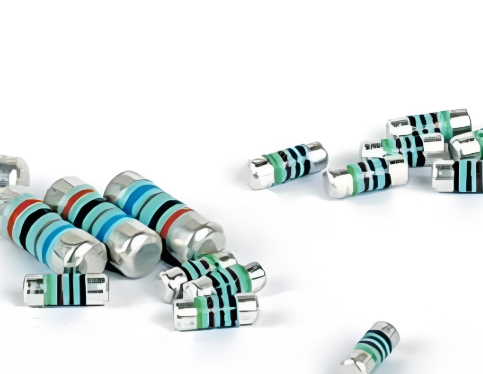

MELF0204/0207 precision metal - film surface - mount resistors

Characteristics

Temperature range: - 65°C - 160°C
Stability: ±1.0% at 70°C for 1000h
Coated style
SMD (Surface - Mount Device)
Small size

Application Area

MELF0204 series resistors adopt a lead - free end - cap structure. The end - cap terminations are tin - plated without lead, conforming to the RoHS standard. They have features such as a small size, excellent environment resistance, and color - ring marking. They can be used with SMT (Surface - Mount Technology), have high precision, high stability, and small temperature drift. They have passed the inspection of the National Metrology Center and are widely used in smart electricity meters, testing equipment, industrial control instruments, and other instruments.

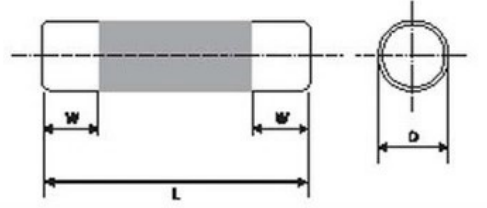

Dimensions (mm)

Type	L±0.3	D±0.3	W±0.1
MELF0204	3.5	1.4	1.0
MELF0204S	3.5	1.4	1.0
MELF0207	5.9	2.2	1.4
MELF0207S	5.9	2.2	1.4

Technical Specifications

Type	MELF0204	MELF0204S	MELF0207	MELF0207S
Power Rating at 70°C (W)	1/8	1/4	1/4	1/2
Limiting Element Voltage (V)	200	250	250	300
Resistance Range (Ω)	10R - 1M	10R - 1M	10R - 2M	10R - 2M
Tolerance Range	B(±0.1%), C(±0.25%), D(±0.5%), F(±1.0%), G(±2.0%), J(±5.0%)
TC - Range (10⁻⁶/K)	C3(±25), C2(±50), C1(±100)

Performance Characteristics

Test Item	Standards	Test Method
Short Time Overload	≤ ±(0.5%R + 0.05Ω)	2.5 - fold rated voltage, maximum voltage not exceeding 2 - fold limiting voltage, 5s
Temperature shock	≤ ±(0.5%R + 0.05Ω)	- 65°C - 160°C, 6 cycles, 0.5h
Low temp. Operation	≤ ±(0.5%R + 0.05Ω)	- 65°C, 1h, rated voltage not exceeding 200V, 45min
Dielectric Strength	≤ ±(0.5%R + 0.05Ω)	450V, 1min, 100v/s
Resistance to Solder	≤ ±(0.5%R + 0.05Ω)	260°C, 10s
Resistance to moisture	≤ ±(1.5%R + 0.05Ω)	- 10°C - 65°C, RH80 - 98%, 240h
Load life	≤ ±(1.0%R + 0.05Ω)	70°C, Pe, 1000h
Shock	≤ ±(0.5%R + 0.05Ω)	980m/s², 6ms
Vibration	≤ ±(0.5%R + 0.05Ω)	10 - 2000Hz, 0.75mm, 150m/s²
