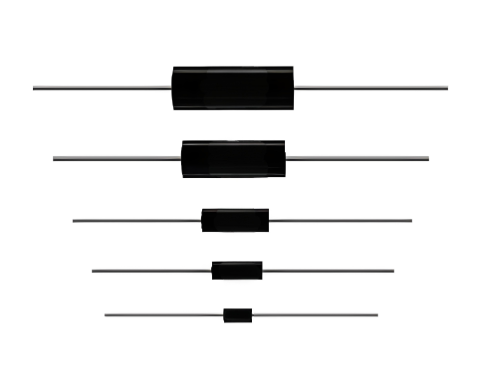

TYEE High - Stability Precision Metal Film Resistors

Characteristics

High - stability, high - precision, moisture - proof
Comply with the national military standard: GJB1929 - 1994
Temperature range: - 65°C - 175°C
Stability: ±0.5%, 125°C, 1000 hours
Encapsulated type

Application Area

TYEE - type products have the characteristics of wide resistance value range, high resistance precision, wide operating temperature range, and high humidity resistance, and are widely used in various precision instruments, automatic control, electronic measurement, precision weighing apparatus, electronic weighing instruments, etc.

Dimensions (size)

	L±0.3	D±0.3	C±2	d±0.05
TYEE1/20	3.9	1.8	26	0.50
TYEE1/10	7.0	2.5	35	0.60

Item	Standards	Test Method
Short Time Overload	≤ ±(0.25%R + 0.05Ω)	2.5 - fold rated voltage, maximum voltage not exceeding 2 - fold limiting voltage, 5s
Temperature shock	≤ ±(0.25%R + 0.05Ω)	- 65°C ~ 150°C, 5 cycles, 0.5h
Low temp. Operation	≤ ±(0.25%R + 0.05Ω)	- 65°C, 1h, rated voltage not exceeding 200V, 45min
Dielectric Strength	≤ ±(0.25%R + 0.05Ω)	450V, 1min, 100v/s
Resistance to Solder	≤ ±(0.10%R + 0.05Ω)	350°C, 3s
Resistance to moisture	≤ ±(0.50%R + 0.05Ω)	- 10°C ~ 65°C, RH80 - 98%, 240h
Load life	≤ ±(0.50%R + 0.05Ω)	125°C, Pe, 1000h
Shock	≤ ±(0.25%R + 0.05Ω)	980m/s², 6ms
Vibration	≤ ±(0.25%R + 0.05Ω)	10 ~ 2000Hz, 0.75mm, 150m/s²

TYPE	EE1/20	EE1/10	EE1/8	EE1/4	EE1/2
TYPE OF GJB1929 - 1994	RJ52△	RJ53△	RJ54	RJ55	RJ56
Power Rating at 70°C (W)	0.067	0.125	0.250	0.500	0.750
Power Rating at 100°C (W)	0.057	0.110	0.173	0.350	0.610
Power Rating at 125°C (W)	0.050	0.100	0.125	0.250	0.500
Limiting Element Voltage (V)	200	200	250	300	350
Resistance Range (Ω) (Military - standard Certification Range)	10 ~ 796K	10R ~ 2M	10 ~ 2M	10R ~ 3M	10R ~ 5M
Tolerance Range (Military - standard Certification Range)	B (±0.1%), C (±0.25%), D (±0.5%), F (±1.0%)
TC - Range (10⁻⁶/K) (Military - standard Certification Range)	C3(±25), C2(±50), C1(±100)
Resistance Range (Ω) (Available Range)	10 ~ 1M5	0R1 ~ 5M	0R1 ~ 10M	0R1 ~ 5M	0R1 ~ 10M
Tolerance Range (Available Range)	P (±0.02%), W (±0.05%), B (±0.1%), C (±0.25%), D (±0.5%), F (±1.0%)
TC - Range (10⁻⁶/K) (Available Range)	C7(±5), C6(±10), C5(±15), C4(±20), C3(±25), C2(±50), C1(±100)
