150W Four-terminal Ultra-long Creepage Distance Structure with French Blue Baseplate, Non-inductive Molded Power Resistor

Special Design

• The specially - designed molded - package structure gives this product an extra - long creepage distance, meeting the standards of VDE0160 and UL94 - V0.

Technical Features

• When the center temperature of the base plate is ≤85°C, the rated power of a single - resistor structure is 150W.

• Four packaging structures, with a maximum of three resistors packaged.

• Four terminals, with options of insert - type terminals or direct - welding forms.

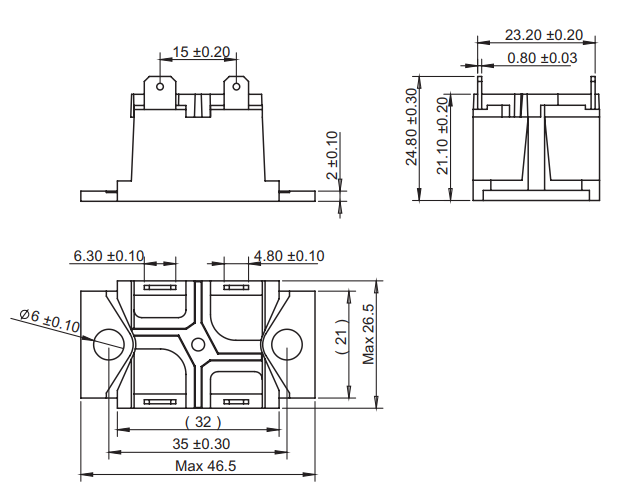

Specifications

1. Resistance Range: 1Ω~1MΩ

2. Accuracy Range: ±1%~±10%

3. Temperature Coefficient: Can achieve up to ±50ppm/°C (25°C~105°C)

4. Rated Power: Rated power is 150W at 85°C, and the maximum operating voltage does not exceed 500VDC (can be up to 1000VDC according to customer requirements).

5. Dielectric Withstand Voltage: 5 kVDC, 3 kVAC, higher requirements can be negotiated for supply.

6. Distributed Capacitance: 45pF

7. Power Durability: Rated power for 1,000 hours, base plate temperature at 85°C, ΔR≤±(1.0%R + 0.001Ω)

8. Moisture Resistance: 56 days/40°C, RH≥95%, ΔR≤±(0.25%R + 0.001Ω)

9. Thermal Shock: MIL - Std - 202, method 107, condition F, ΔR≤±(0.3%R + 0.001Ω)

10. High - Frequency Vibration: MIL - Std - 202, method 204, condition D, ΔR≤±(0.2%R + 0.001Ω)

11. Resistor Installation: M5 screws, maximum torque 1.5Nm.

12. Operating Temperature Range: -55°C~+155°C
