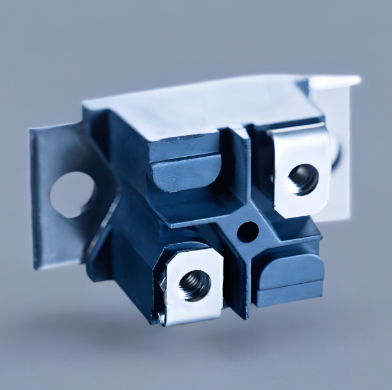

150W Two-terminal Ultra-long Creepage Distance Structure with French Blue Baseplate, Non-inductive Molded Power Resistor

Special Design: The specially - designed molded - package structure gives this product an extra - long creepage distance, meeting the standards of VDE0160 and UL94 - V0.

Technical Features

The rated power is 150W when the center temperature of the base plate is ≤85°C.

Extra - long creepage distance (see the bottom - right explanation).

Two terminals, fixed with M4 screws.

Specifications

Resistance Range: 1Ω~1MΩ

Accuracy: ±1%~±10%

Temperature Coefficient: Can achieve up to ±50ppm/°C (25°C~105°C)

Rated Power: Rated power is 150W at 85°C, and the maximum operating voltage does not exceed 1000VDC (other requirements can be negotiated).

Dielectric Withstand Voltage: 5 KVDC, 3 KVAC, higher requirements can be negotiated for supply.

Distributed Capacitance: 45pF

Insulation Resistance: Minimum 10GΩ

Power Durability: Rated power for 1,000 hours, base plate temperature at 85°C, ΔR≤±(1.0%R + 0.001Ω)

Moisture Resistance: 56 days/40°C, RH≥95%, ΔR≤±(0.25%R + 0.001Ω)

Thermal Shock: MIL - Std - 202, method 107, condition F, ΔR≤±(0.3%R + 0.001Ω)

High - Frequency Vibration: MIL - Std - 202, method 204, condition D, ΔR≤±(0.2%R + 0.001Ω)

Terminal Installation: M4 screws, maximum torque 1.3Nm.

Resistor Installation: M5 screws, maximum torque 1.5Nm.

Operating Temperature Range: -55°C~+155°C
