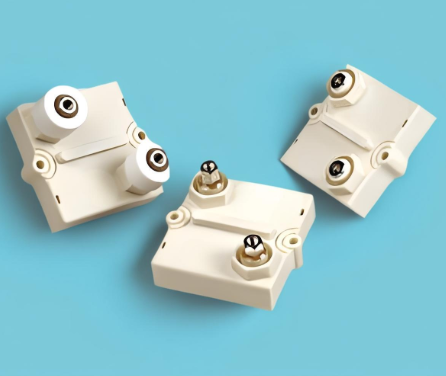

Ultra-High-Power-Resistors up to 3000W

1. Design Purpose

Ultra-High-Power-Resistors up to 3000W are a type of electrical components specifically designed to handle extremely high levels of electrical power, with a maximum power rating reaching up to 3000 watts. They are engineered to withstand and dissipate such large amounts of power while maintaining a specific resistance value. This enables them to play a crucial role in circuits where very high power conditions are present, such as in some heavy-duty industrial applications, large-scale power conversion systems, and specialized electrical equipment that demands significant power handling capabilities.

2. Characteristics

2.1. Exceptional Power Handling Capacity

As the name implies, their standout feature is the ability to manage power levels up to 3000W. This makes them suitable for applications where conventional power resistors would not be able to cope with the high power demands.

2.2. Stable Resistance

Despite the high power and often harsh operating conditions like significant temperature variations and large current flows, these resistors maintain a relatively consistent resistance value. This stability is essential for ensuring the proper functioning of the circuits they are part of, as changes in resistance could lead to unexpected behavior in electrical systems like incorrect voltage drops or current fluctuations.

2.3. Efficient Heat Dissipation

Given the massive amount of power they need to dissipate, ultra-high-power resistors are designed with advanced heat dissipation mechanisms. They usually have features like large heat sinks, special thermal conductive materials, or optimized surface areas to efficiently transfer heat away from the resistor body. This allows them to operate safely under high-temperature environments without getting damaged or experiencing a degradation in performance due to overheating.

2.4. High Durability

Constructed from robust and high-quality materials, these resistors are built to withstand the extreme stress caused by high power operation over an extended period. They are less likely to fail or show signs of wear and tear compared to lower power-rated resistors, ensuring reliable operation in the long run.

3. Applications

3.1. Industrial Heating Systems

In applications such as industrial furnaces, where large amounts of heat need to be generated through electrical means, these ultra-high-power resistors can be used to convert electrical energy into heat energy effectively. They can handle the high power input required to reach and maintain the desired high temperatures.

3.2. Power Grid and Energy Conversion

In power grid substations or large-scale energy conversion facilities like those involved in converting electrical energy from one form to another (e.g., AC to DC for high-voltage direct current transmission), these resistors can be employed to manage power flows, absorb excess energy during certain operations, or provide necessary resistance in specific electrical pathways to ensure stable and safe operation of the overall system.

3.3. Heavy Machinery and Electric Vehicles

In heavy-duty machinery like large construction equipment or in the power systems of electric vehicles with high-power motors, ultra-high-power resistors can be used to regulate current, protect components from overcurrent or overvoltage conditions, and help in the overall control and efficient operation of the electrical systems.

4. Selection Considerations

4.1. Power Rating Precision

It's crucial to accurately match the power rating of the resistor with the actual power requirements of the application. Since the power levels involved are extremely high, even a slight miscalculation could lead to the resistor overheating and failing prematurely.

4.2. Resistance Value and Tolerance

The appropriate resistance value needs to be chosen based on the specific electrical circuit design requirements. Additionally, considering the tolerance of the resistor is important as it determines the acceptable range of variation in the resistance value, which can impact the performance of the circuit.

4.3. Heat Dissipation Capability and Size

The heat dissipation features of the resistor must be evaluated carefully. Along with that, the physical size of the resistor, which is often related to its heat dissipation ability and how it can fit into the available space in the equipment or circuit, also needs to be taken into account.

4.4. Environmental Conditions

Factors like the ambient temperature, humidity, and potential exposure to dust, chemicals, or mechanical vibrations in the operating environment should be considered. Some ultra-high-power resistors may need additional protective measures or have specific environmental compatibility requirements to ensure their long-term reliability and performance.

5. Summary

In summary, ultra-high-power resistors up to 3000W are vital components in electrical systems dealing with extremely high power levels. Their unique characteristics and capabilities make them suitable for a wide range of demanding applications, and careful consideration of various factors during the selection process is necessary to ensure their optimal performance in those applications.
