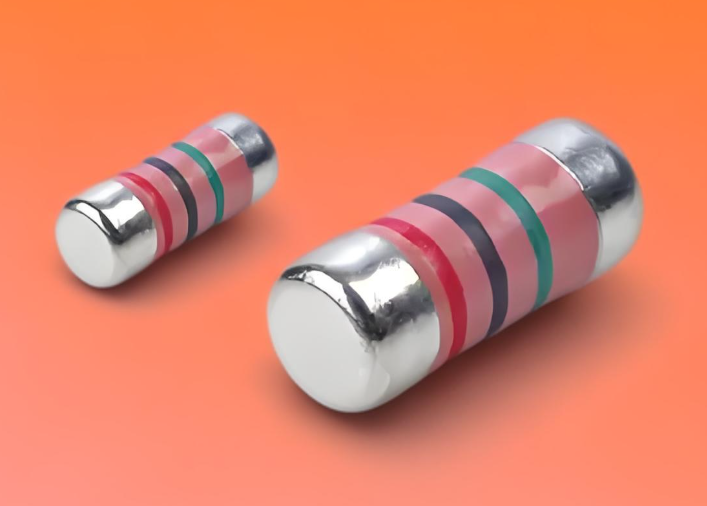

High Voltage MELF Resistor

The High Voltage MELF Resistor stands out with its SMD-enabled structure, allowing for high power delivery in compact, space-saving packages. With a versatile power rating that spans from 0.16W to 3W and a broad resistance range of 100K ohms to 68M ohms, it meets the diverse needs of numerous applications.

Designed for demanding environments, this resistor is capable of handling working voltages much higher than those of general-purpose resistors, making it a perfect fit for high-voltage applications. Additionally, its heat dissipation capabilities surpass those of chip resistors, ensuring that it maintains optimal performance even under high-power conditions.

Moreover, the High Voltage MELF Resistor boasts a sturdy mechanical structure that can withstand vibration and thermal shock, providing enhanced durability and reliability in harsh environments. This makes it an excellent choice for applications where resilience and long-term stability are crucial.

Type	Body Length (L, mm)	Cap Diameter (D1, mm)	Body Diameter (D2, mm)	Soldering Spot (B, mm)	Net Weight Per 1000 pcs
1/6W	3.52 ± 0.15	1.35 ± 0.1	D1 + 0.02/ -0.15	0.6 Min.	17 grams
1/4W	5.90 ± 0.20	2.20 ± 0.1	D1 + 0.02/ -0.2	1.0 Min.	66 grams
1/2W	8.50 ± 0.50	3.00 ± 0.2	D1 + 0.05/ -0.35	1.3 Min.	186 grams
1W	10.50 ± 0.50	4.00 ± 0.5	D1 + 0.05/ -0.45	1.6 Min.	446 grams
2W	12.60 ± 0.60	4.60 ± 0.5	D1 + 0.05/ -0.50	1.8 Min.	750 grams
3W	14.60 ± 0.60	5.10 ± 0.5	D1 + 0.05/ -0.50	2.0 Min.	1000 grams

Power Rating (at 70°C)	Maximum Working Voltage	Maximum Overload Voltage	Minimum Resistance	Maximum Resistance	Resistance Tolerance	Available Resistance Values
1/6W	600V	1,250V DC (900V RMS)	56KΩ	22MΩ	±1%~±5%	E-24/E-96
1/4W	1,250V DC (900V RMS)	2,400V DC (1,800V RMS)	91KΩ	24MΩ	±1%~±5%	E-24/E-96
1/2W	2,800V DC (2,000V RMS)	5,600V DC (4,000V RMS)	100KΩ	33MΩ	±1%~±5%	E-24/E-96
1W	4,200V DC (3,000V RMS)	8,400V DC (6,000V RMS)	100KΩ	68MΩ	±1%~±5%	E-24/E-96
2W	6,300V DC (4,500V RMS)	11,200V DC (8,000V RMS)	100KΩ	68MΩ	±1%~±5%	E-24/E-96
3W	8,400V DC (6,000V RMS)	14,000V DC (10,000V RMS)	100KΩ	68MΩ	±1%~±5%	E-24/E-96

Characteristics	Limits
Temperature Coefficient, PPM / °C	±200 ~ ±3000
Operating Temperature Range, °C	-55 ~ +155
Insulation Resistance, MΩ	>10⁴
Failure Rate in Time, pcs / 10⁹ device hours	<5
Tin Whisker (JESD201 Temperature Cycling & High Temp. / Humidity Storage), μm	<5

LINE

WECHAT

SKYPE

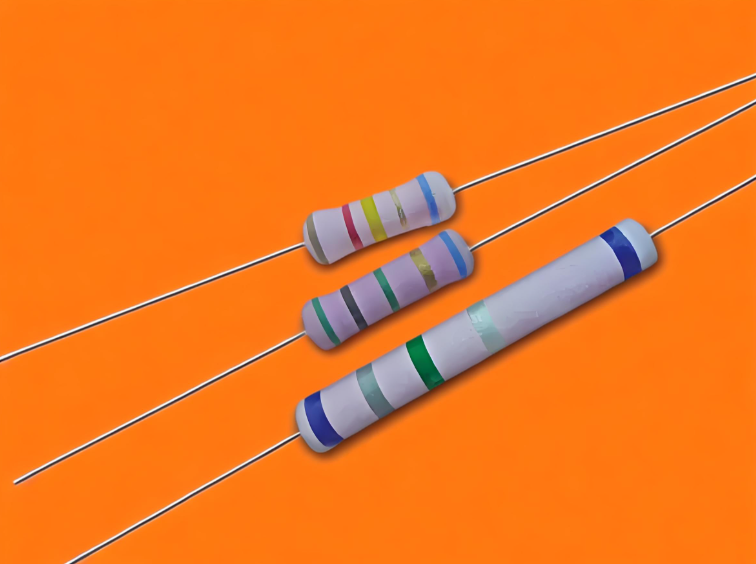

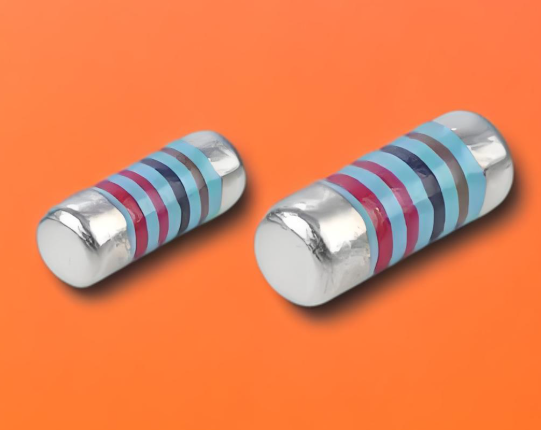

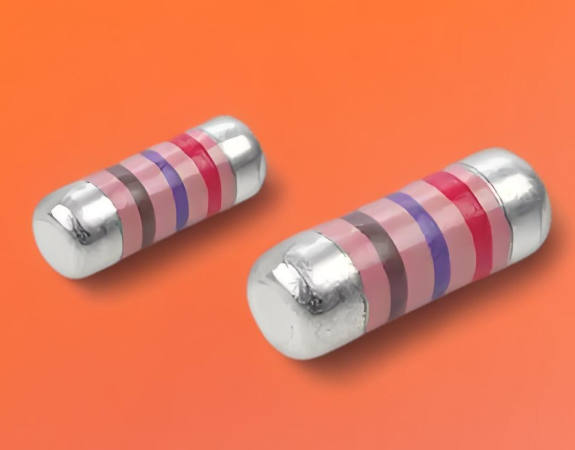

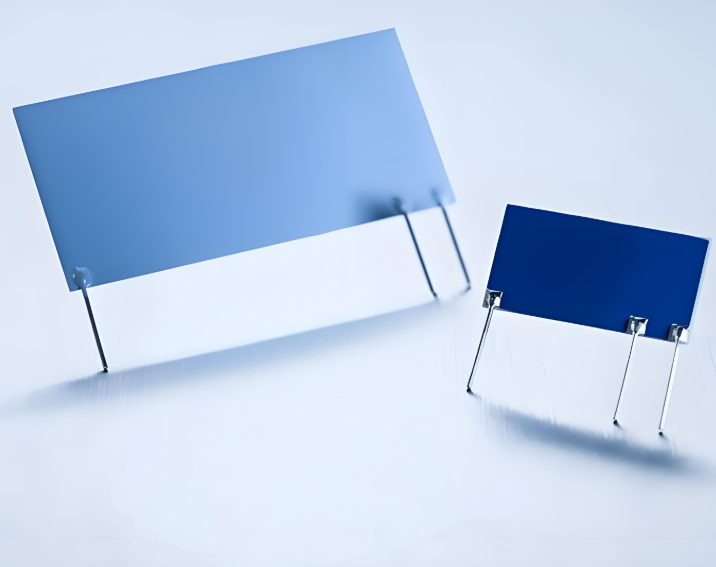

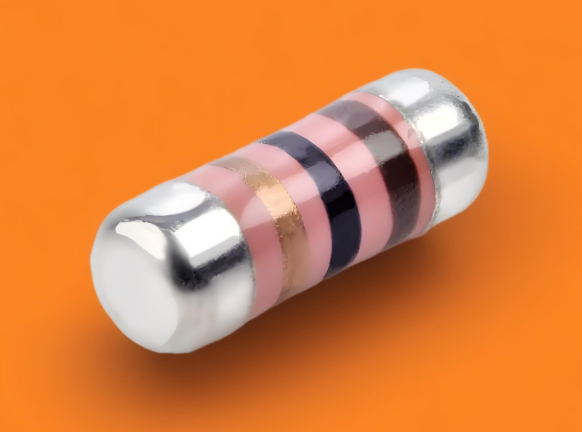

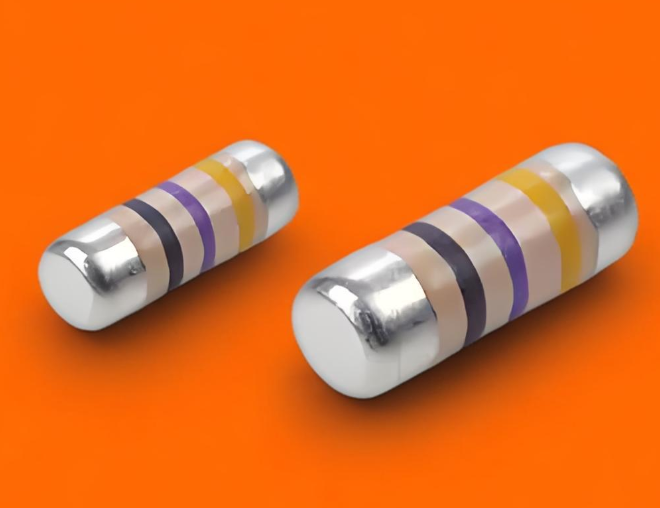

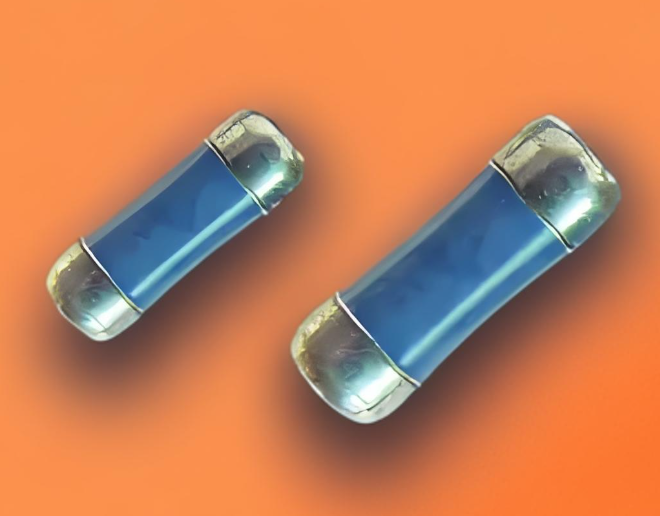

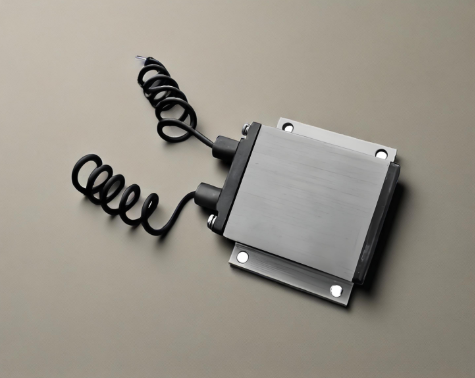

In addition to High Voltage MELF Resistor, we also focus on the following resistors:
