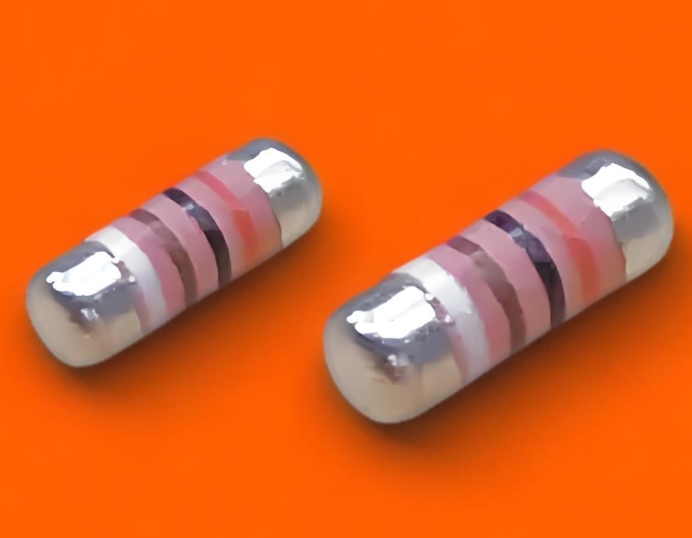

Pulse Load High Voltage MELF Resister

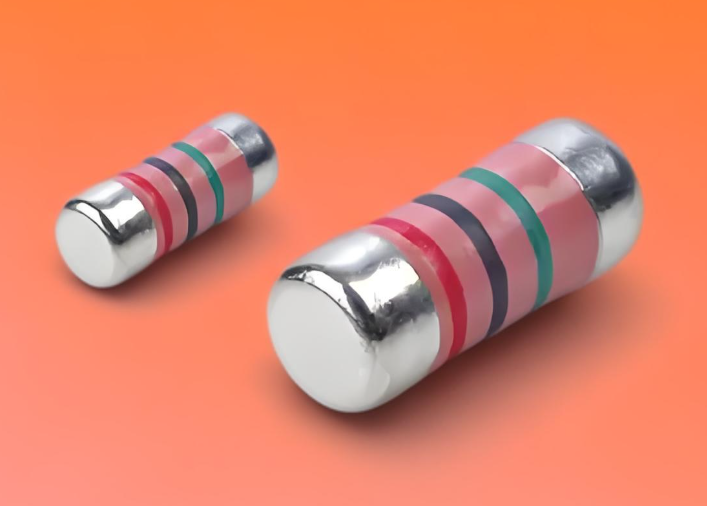

The pulse load high-voltage MELF resistor features a rated power range of 0.4W to 1W and a resistance span from 300K ohms to 39M ohms, with tolerances of ±1%, ±2%, and ±5%. Thanks to its MELF package of 0204/0207, it boasts an SMD-compatible structure. Its proprietary thin film can handle much higher operating voltages than general-purpose resistors, as it incorporates surge protection functionality coated onto a cylindrical ceramic rod and encapsulated as a MELF resistor. The pulse load high-voltage MELF resistor offers superior heat dissipation compared to chip resistors.

Type	Body Length (L, mm)	Cap Diameter (D1, mm)	Body Diameter (D2, mm)	Soldering Spot (B, mm)	Net Weight Per 1000 pcs
0.4W	3.52 ± 0.15	1.35 ± 0.1	D1+0.02/ -0.15	0.6 Min.	17 grams
1W	5.90 ± 0.20	2.20 ± 0.1	D1+0.02/ -0.15	1.0 Min.	66 grams

Power Rating At 70°C	Maximum Working Voltage	Maximum Overload Voltage	Minimum Resistance	Maximum Resistance	Resistance Tolerance	Available Resistance Values
0.4W	600V	1,200V	300KΩ	30MΩ	±1%~±5%	E-96/E-24
1W	1,000V	2,000V	300KΩ	39MΩ	±1%~±5%	E-96/E-24

Dielectric Withstanding Voltage, VAC or DC: 300
Temperature Coefficient, PPM / °C: ±50, ±100
Operating Temperature Range, °C: -55 ~ +155
Insulation Resistance, MΩ: >10⁴
Failure Rate in Time, pcs / 10⁹ device hours: <1
Tin Whisker (JESD201 Temperature Cycling & High Temp. / Humidity Storage), μm: <5

Note: Not applicable to all resistance values. Please check with us regarding the PPM of specific resistance values.
