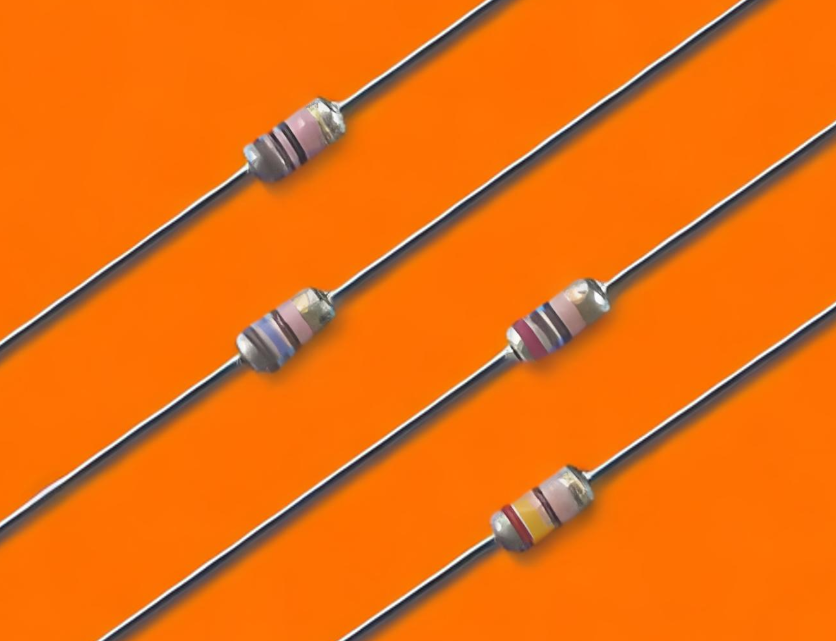

Ignition Fixed Resistor

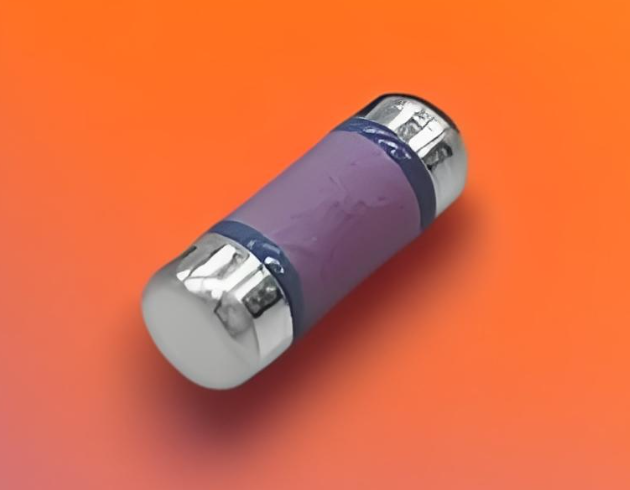

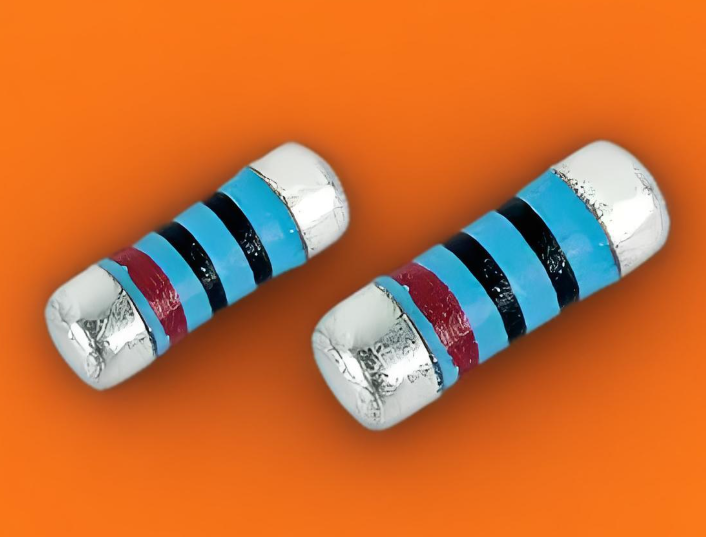

The Ignition Noise Suppression Resistor is a ceramic film resistor featuring an SMD (Surface Mounted Device) structure. It boasts a wide range of power ratings, from 0.5 Watts to 3 Watts, and resistance values between 1K Ohm and 10K Ohm, catering to the needs of various high-voltage ignition systems. Compared to chip resistors, the Metal Electrode Leadless Face (MELF) package offers superior heat dissipation performance and a more robust mechanical structure that can withstand intense vibration and thermal shock. This resistor is specifically designed for high-voltage spark ignition systems in vehicles such as cars, effectively suppressing noise generated during the ignition process and enhancing the stability and reliability of the ignition system.

Type	Body Length (L, mm)	Cap Diameter (D, mm)	Net Weight Per 1000 pcs (ref.)
0.5W	10.7 ± 0.5	4.0 ± 0.5	390 grams
1W	16.0 ± 0.5	4.5 ± 0.5	400 grams
2W	18.3 ± 0.5	4.5 ± 0.5	700 grams

Power Rating (at 40°C)	Maximum Working Voltage*	Maximum Surge Load	Minimum Resistance	Maximum Resistance	Resistance Tolerance	Available Resistance Values
0.5W	√(PxR)	25kV/10ns	1kΩ	15kΩ	±10%~±20%	E - 6/E - 12
1W	√(PxR)	35kV/10ns	1kΩ	15kΩ	±10%~±20%	E - 6/E - 12
2W	√(PxR)	50kV/20ns	1kΩ	15kΩ	±10%~±20%	E - 6/E - 12

Characteristics	Limits
Temperature Coefficient, PPM / °C*	-3000 (typical)
Operating Temperature Range, °C	-55 ~ +200
Insulation Resistance, MΩ	>10⁴
Failure Rate in Time, pcs / 10⁹ device hours	<1

Not applicable to all resistance values. Please check with us regarding the PPM of specific resistance value(s).
