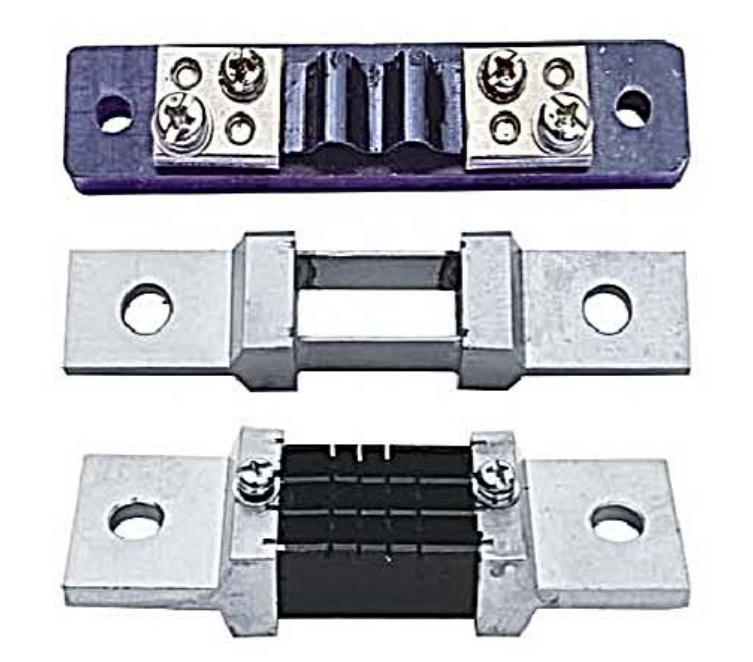

FL-T Fixed Fixed Value Shunt

Application: The interchangeable shunts are used to multiply the measuring range of current of measuring instruments.

Basic specifications:

Accuracy class: 0.5 for 2 - 4000A; 1 for 5000 - 10000A
Ambient conditions: Temperature: - 40 - + 60°C; relative humidity ≤ 95% (at 35°C)
Capacity to withstand mechanical force: It is capable of withstanding the transport bumping at an acceleration of 70/s² and a shock frequency of 80 - 120 times/min for an hour.
Over - rating capacity: 120% of the rated current for 2hr.
Voltage drop: 75mV, 50mV, 60mV, 100mV
Heat generation when loaded: Not more than 80°C after the temperature rise gets steady; not more than 120°C at a rated current of over 50A.

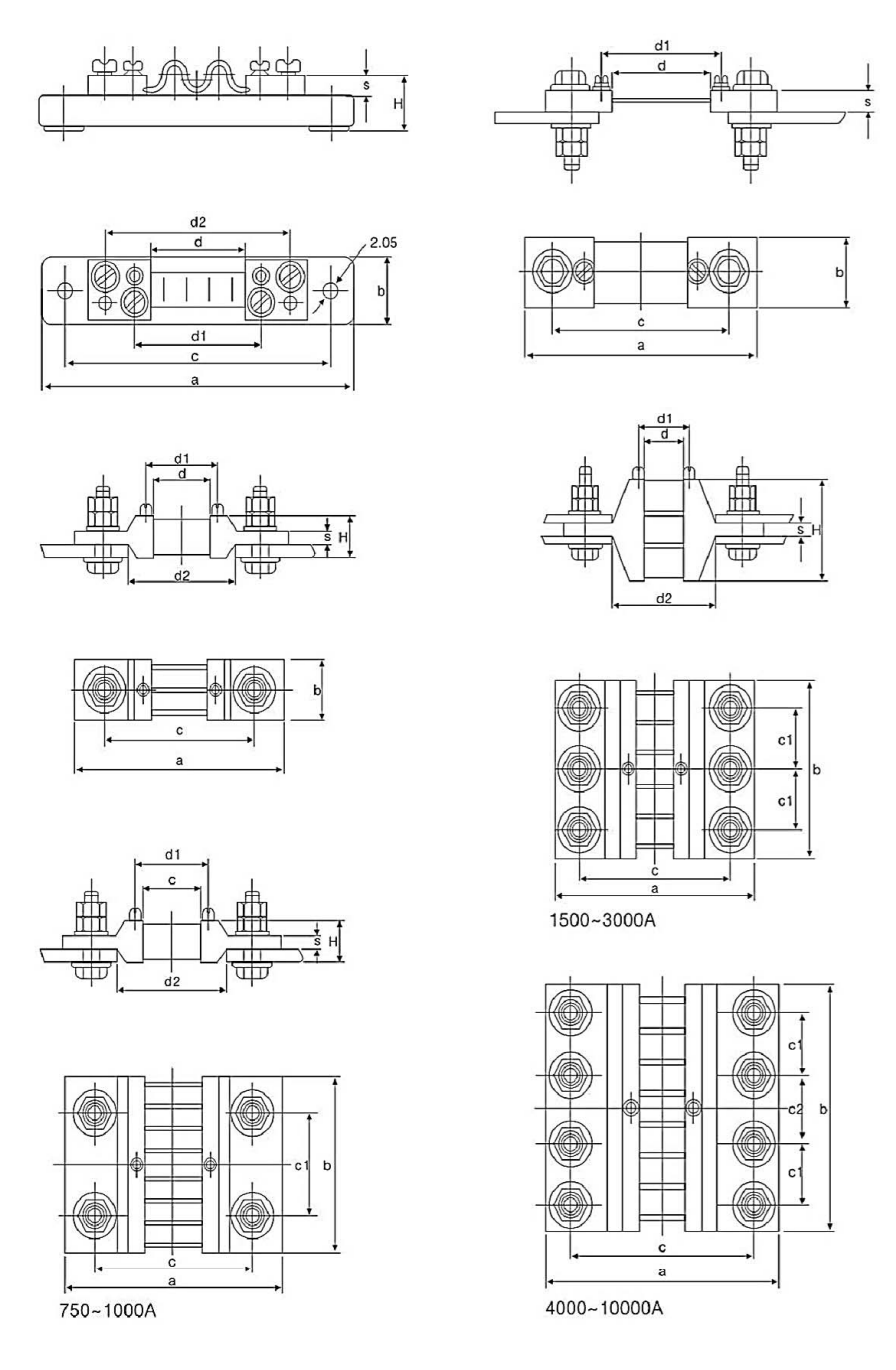

Dimensions (mm):

Rated Current (A)	a	c	b	C1	C2	H	S	d1	d2	Current - terminal Screw (mm) One	Potential - terminal Screw (mm) One
5, 10, 15, 20, 30, 50	120	100	20	-	15	5	30	42	60	M5×6 - 2	M4×6 - 2
75, 100	104	85	22	-	10	40	53	-	-	M8×35 - 2	-
150, 200	116	-	-	-	-	-	30	39	54	-	-
250, 300	126	-	26	-	-	-	-	-	-	-	-
400	-	-	38	-	-	-	-	-	-	-	-
500	-	100	45	22	6	-	-	49	64	M10×35 - 2	-
600	-	-	62	-	-	-	-	-	-	-	-
750	-	-	76	-	-	-	-	-	-	-	-
1000	-	-	-	-	-	-	-	-	-	-	-
1500, 2000	190	160	95	50	-	40	-	-	-	M12×60 - 4	M5×6 - 2
2500	-	-	110	-	-	-	-	84	-	M12×60 - 6	-
3000	-	-	145	-	-	-	-	-	-	-	-
4000	-	195	2 - 50	55	-	-	-	52	-	M16×80 - 8	-
5000	284	-	-	-	-	-	-	-	-	-	-
6000	220	210	80	-	150	18	-	88	-	M16×80 - 12	-
7500	290	320	3 - 50	2 - 60	-	-	-	-	-	-	-
10000	-	400	-	-	-	-	-	-	-	-	-
