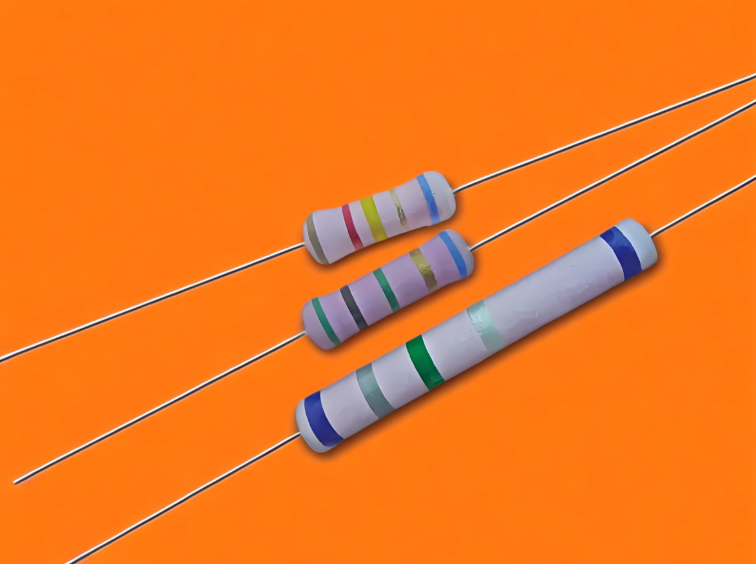

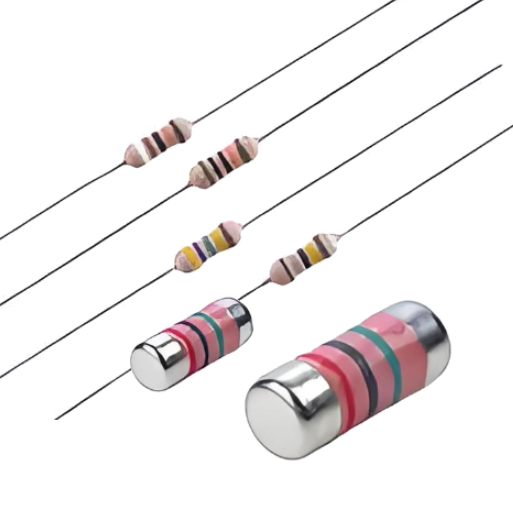

High Voltage Fixed Resistor

The High Voltage Resistor incorporates a specialized conductive film capable of enduring extremely high voltages. It boasts a power rating that varies between 0.25W and 3W, along with a resistance range spanning from 100K ohms to 68M ohms. Its maximum working voltage significantly surpasses that of standard resistors, positioning it ideally for applications like power supplies and high voltage detection. Furthermore, this resistor has been certified to comply with safety standards including VDE0860, IEC 60065 clause 14.2a, and UL 1676 from the year 2004.

Type	Body Length (L, mm)	Body Diameter (D, mm)	Lead Wire Length (H, mm)	Lead Wire Diameter (d, mm)	Net Weight Per 1000 Pcs
1/4W	6.00 ± 1.0	2.6 ± 0.3	26 ± 3.0	0.55 ± 0.03	300 Grams
1/2W	9.00 ± 1.0	3.2 ± 0.2	28 ± 3.0	0.60 ± 0.03	340 Grams
1W	15.5 ± 1.0	5.5 ± 0.5	30 ± 3.0	0.80 ± 0.03	1200 Grams
2W	19.0 ± 1.0	6.0 ± 0.5	30 ± 3.0	0.80 ± 0.03	1620 Grams
3W	24.0 ± 1.0	8.0 ± 0.5	30 ± 3.0	0.80 ± 0.03	3100 Grams

Power Rating (at 70°C)	Maximum Working Voltage	Maximum Overload Voltage	Minimum Resistance	Maximum Resistance	Resistance Tolerance	Available Resistance Values
1/4W	1.6kV DC (1150V RMS)	3kV DC (2kV RMS)	91KΩ	24MΩ	±5%	E-24
1/2W	3.5kV DC (2.5kV RMS)	7kV DC (5kV RMS)	100KΩ	33MΩ	±1%	E-96
1W	10kV DC (7kV RMS)	20kV DC (14kV RMS)	100KΩ	68MΩ	±5%	E-24
2W	11kV DC (8kV RMS)	20kV DC (15kV RMS)	100KΩ	100MΩ	±1%	E-96
3W	12kV DC (8.5kV RMS)	20kV DC (15kV RMS)	100KΩ	100MΩ	±5%	E-24

Characteristics	Limits
Temperature Coefficient, PPM / °C	±200 ~ ±4750
Operating Temperature Range, °C	-55 ~ +155
Insulation Resistance, MΩ	>10⁴
