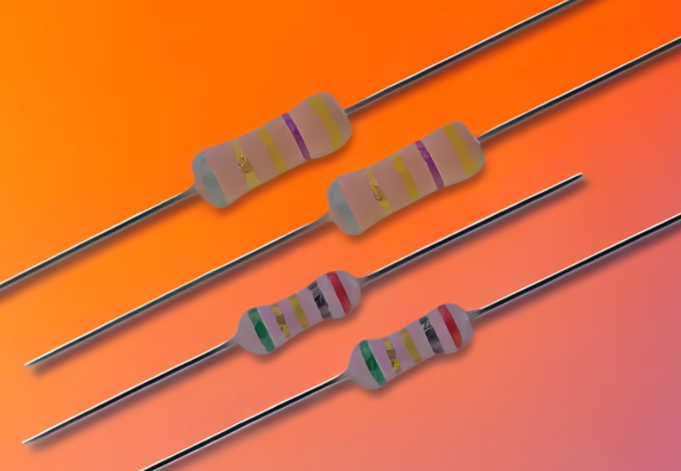

Small size, high power through-hole Enhanced Film Fixed Resistor

The power through-hole resistor boasts a power range from 0.5W to 5W and a resistance range from 1Ω to 1MΩ. It features small size and high power, with superior surge withstand capability compared to ordinary power resistors. Compliant with RoHS standards and lead-free requirements, it is widely used in power supplies, communications, healthcare, and lighting.

TYPE	Body Length (L, mm)	Body Diameter (D, mm)	Lead Wire Length (H, mm)	Lead Wire Diameter (d, mm)	Net Weight Per 1000 Pcs
1/2W	6.50 ± 1.0	2.4 ± 0.2	26 ± 3.0	0.55 ± 0.03	220 Grams
1W	6.50 ± 1.0	2.4 ± 0.2	26 ± 3.0	0.60 ± 0.03	220 Grams
1W	9.00 ± 1.0	3.2 ± 0.2	28 ± 3.0	0.60 ± 0.03	340 Grams
2W	11.0 ± 1.0	4.0 ± 0.5	28 ± 3.0	0.70 ± 0.03	500 Grams
3W	15.5 ± 1.0	5.5 ± 0.5	30 ± 3.0	0.80 ± 0.03	1200 Grams
4W	19.0 ± 1.0	6.0 ± 0.5	30 ± 3.0	0.80 ± 0.03	1600 Grams
5W	19.0 ± 1.0	8.0 ± 0.5	30 ± 3.0	0.80 ± 0.03	3100 Grams

Power Rating (at 70°C)	Maximum Working Voltage	Maximum Overload Voltage	Minimum Resistance	Maximum Resistance	Resistance Tolerance	Available Resistance Values
1/2W	500V	700V	1Ω	1MΩ	±1%, ±2%, ±5%	E-96/E-48/E-24
1W	500V	800V	1Ω	1MΩ	±1%, ±2%, ±5%	E-96/E-48/E-24
1W	600V	900V	1Ω	1MΩ	±2%, ±5%	E-24/E-48
2W	750V	1000V	1Ω	1MΩ	±2%, ±5%	E-24/E-48
3W	800V	1200V	1Ω	560KΩ	±2%, ±5%	E-24/E-48
4W	800V	1200V	1Ω	180KΩ	±2%, ±5%	E-24/E-48
5W	800V	1200V	1Ω	180KΩ	±2%, ±5%	E-24/E-48

Characteristics	Limits
Dielectric Withstanding Voltage, VAC or DC	500
Temperature Coefficient, PPM / °C*	±50, ±100, ±200, ±300, ±500
Operating Temperature Range, °C	-55 ~ +200
Insulation Resistance, MΩ	10⁴

Not applicable to all resistance values. Please check with us regarding the PPM of specific resistance value(s).
