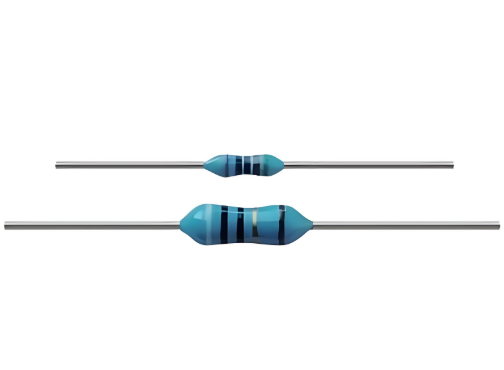

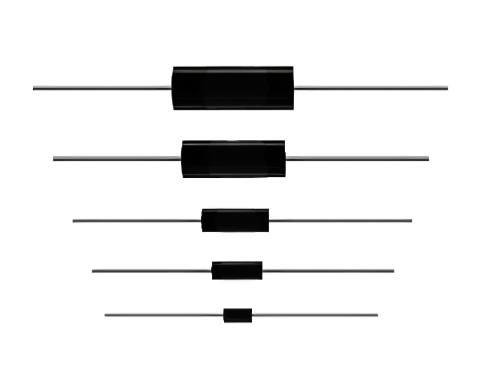

TYMC High - Stability Metal Film Resistors

Characteristics

Coated style
High stability: ±1.0%, 70°C, 1000h

Applications

TYMC - series resistors have an axial - leaded structure, are coated with insulating paint, and are marked with color rings. They feature small size, high precision, small temperature coefficient, and stable resistance value. Moreover, they have a high cost - performance ratio and are widely used in industrial control instruments.

Dimensions (mm)

Size	L±0.3	D±0.3	C±2	d±0.05
TYMC0204	4.20	1.5	27	0.50
TYMC0207	7.0	2.4	26	0.60

Technical Specifications

Type	Power Rating at 70°C (W)	Max Working Voltage (V)	Resistance Range (Ω)	Absolute Tolerance	TCR (10⁻⁶/K)
TYMC0204	1/6	200	20 - 1MΩ	B(±0.1%), C(±0.25%), D(±0.5%), F(±1.0%), G(±2.0%), J(±5.0%)	C3(±25), C2(±50), C1(±100)
TYMC0207	1/4	250	10 - 2MΩ

Performance

Test Item	Standards	Test Method
Short Time Overload	≤ ±(0.5%R + 0.05Ω)	2.5 - fold rated voltage, maximum voltage not exceeding 2 - fold limiting voltage, 5s
Temperature shock	≤ ±(0.5%R + 0.05Ω)	- 65°C - 150°C, 5 cycles, 0.5h
Low temp. Operation	≤ ±(0.5%R + 0.05Ω)	- 65°C, 1h, rated voltage not exceeding 200V, 45min
Dielectric Strength	≤ ±(0.5%R + 0.05Ω)	450V, 1min, 100v/s
Resistance to Solder	≤ ±(0.5%R + 0.05Ω)	350°C, 3s
Resistance to moisture	≤ ±(1.5%R + 0.05Ω)	- 10°C - 65°C, RH80 - 98%, 240h
Load life	≤ ±(1.0%R + 0.05Ω)	70°C, Pe, 1000h
Shock	≤ ±(0.5%R + 0.05Ω)	980m/s², 6ms
Vibration	≤ ±(0.5%R + 0.05Ω)	10 - 2000Hz, 0.75mm, 150m/s²

Electrical data - Tolerance, TCR & Resistance range

Type	TCR (10⁻⁶/K)	Resistance Range (±0.1%)	Resistance Range (±0.25%)	Resistance Range (±0.5%)	Resistance Range (±1.0%)	Resistance Range (±2.0%)	Resistance Range (±5.0%)
TYMC0204	25	20R - 1MΩ	20R - 1MΩ	20R - 1MΩ	20R - 1MΩ	20R - 1MΩ	20R - 1MΩ
	50	20R - 1MΩ	20R - 1MΩ	20R - 1MΩ	20R - 1MΩ	20R - 1MΩ	20R - 1MΩ
	100	20R - 1MΩ	20R - 1MΩ	20R - 1MΩ	20R - 1MΩ	20R - 1MΩ	20R - 1MΩ
TYMC0207	25	10R - 2MΩ	10R - 2MΩ	10R - 2MΩ	10R - 2MΩ	10R - 2MΩ	10R - 2MΩ
	50	10R - 2MΩ	10R - 2MΩ	10R - 2MΩ	10R - 2MΩ	10R - 2MΩ	10R - 2MΩ
	100	10R - 2MΩ	10R - 2MΩ	10R - 2MΩ	10R - 2MΩ	10R - 2MΩ	10R - 2MΩ
