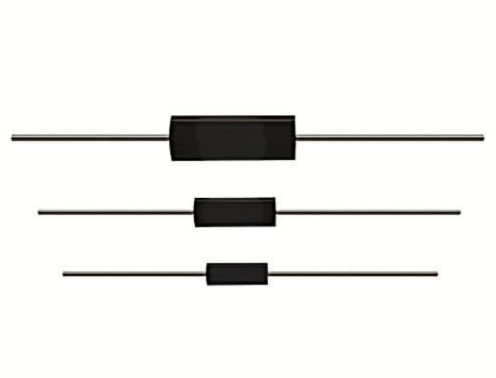

TYUAR High - Reliability Metal Film Resistors

Features

High precision
Low TCR
Moisture proof
Mold style

Applications

Meters and instruments
Electronic weighing apparatus

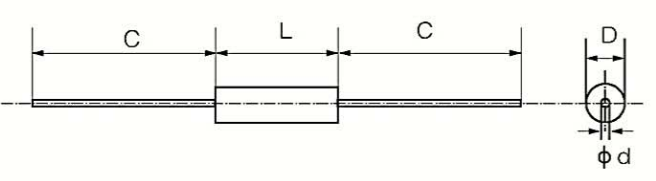

Size	L	D	C	d
TYUAR1/10	7.0	2.5	35	0.63
TYUAR1/8	10.0	3.4	35	0.63
TYUAR1/4	14.8	5.2	35	0.63

Technical Specifications

Type	Power Rating at 70°C (W)	Max Working Voltage (V)	Resistance Range	Tolerance Range	TCR (ppm/°C)
TYUAR1/10	0.100	100	500R - 1MΩ	P(±0.02%), W(±0.05%), B(±0.1%)	C7(±5), C6(±10), C5(±15), C4(±20), C3(±25)
TYUAR1/8	0.125	150	500R - 1MΩ	P(±0.02%), W(±0.05%), B(±0.1%)	C7(±5), C6(±10), C5(±15), C4(±20), C3(±25)
TYUAR1/4	0.250	200	500R - 1MΩ	P(±0.02%), W(±0.05%), B(±0.1%)	C7(±5), C6(±10), C5(±15), C4(±20), C3(±25)

Performance

Test Item	Specifications	Test Method
Short time overload	≤ ±(0.1%R + 0.01Ω)	2.5V<sub>R</sub>, 5s
Thermal shock	≤ ±(0.1%R + 0.01Ω)	-55°C/125°C, 5 cycles
Dielectric strength	≤ ±(0.1%R + 0.01Ω)	V<sub>AC</sub>, 1min ± 5s
Leaching	≤ ±(0.1%R + 0.01Ω)	260°C, 10s
Load life	≤ ±(0.2%R + 0.05Ω)	70°C, P<sub>R</sub>, 1000h
Vibration	≤ ±(0.4%R + 0.01Ω)	10 - 500Hz, 0.75mm, 98m/s²
