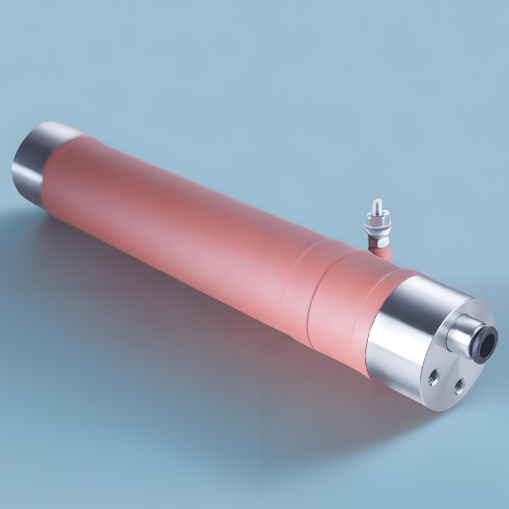

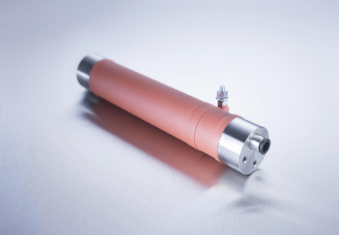

1700W cylindrical water - cooled high - power resistor.

Technical Characteristics

Cooling Method: The resistors utilize direct water cooling (distilled water or distilled water mixed with ethylene glycol), offering superior heat dissipation compared to traditional indirect cooling mechanisms.

Rated Power: The maximum rated power can reach 1700W.

Resistor Installation: The resistors are installed and fixed using M4 nuts, featuring a wide range of resistance values, high precision, low temperature coefficient, high dielectric voltage strength, and can also be used in voltage dividers.

Specifications

Resistance Range: 0.5Ω ~ 10MΩ

Resistance Accuracy: ±5% ~ ±10%

Temperature Coefficient Range: ±100ppm/°C (for resistances ≤ 1Ω); ±250ppm/°C (for resistances > 1Ω)

Inductance: 80 ~ 100nH

Insulation Voltage (Contact 1 to Isolation Contact):

1400W - S: 3 KVDC
1400W/1400W - L: 10 KVDC

Cooling Medium: Distilled water or distilled water mixed with ethylene glycol

Connector: Φ6mm tube (can be modified according to customer requirements)

Maximum Water Pressure: 10 bar

Connector Material: Nickel-Chromium

Technical Parameters

Model	Rated Power / W	Maximum Operating Voltage KVDC	L	L1	L2
1400W - S	500	5	117	100	5
1400W	1000	7	195	178	15
1400W - L	1700	10	337	320	15

Remarks: Maximum power can be achieved when the water cooling medium temperature is less than 50°C and the flow rate is greater than 7 liters per minute.
