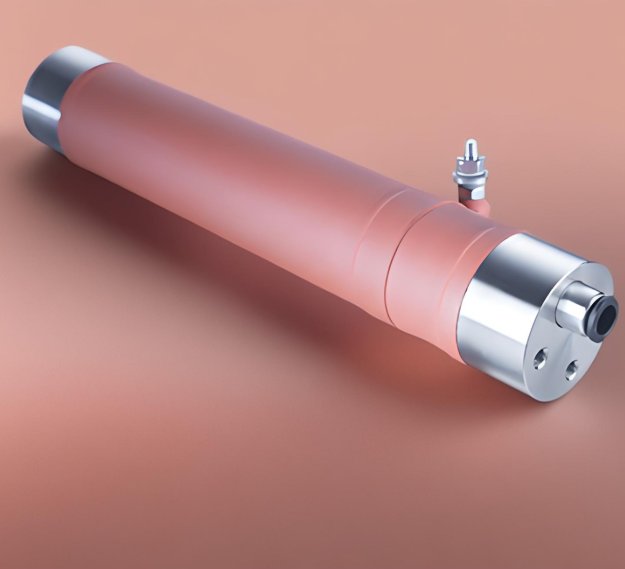

High-Power Water-Cooled Resistors High-Power Water-Cooled Single Resistors and Voltage Dividers up to 1700W

I. Product Overview

This resistor is specifically designed for high-power applications, utilizing direct water cooling to make it suitable for extremely high continuous power loads. The series boasts features such as easy M4 installation, a wide ohm range, precise tolerances, temperature coefficient values, high dielectric strength, and is also suitable for use in voltage dividers.

II. Product Features

• Resistance Value: 0.5 Ω ≤ 10 MΩ.

• Resistance Tolerance: ±5% to ±10% standard.

• Temperature Coefficient:

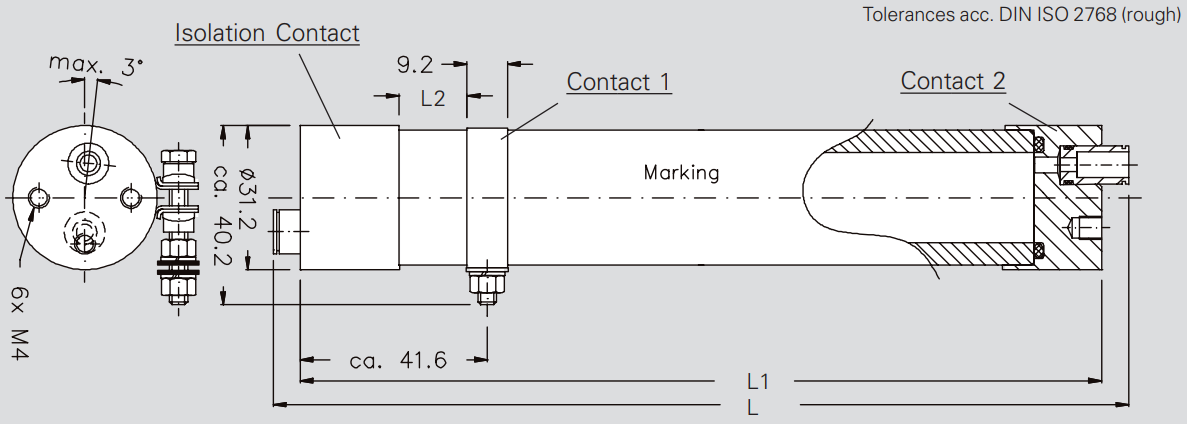

• 10 kV DC between contact 1 and isolated contact for 1000W and 1700W models.

• 3 kV DC for 500W models.

• Connecting Type of Cooling Medium: 6 mm tube (other connections available upon special request).

• Max. Cooling Medium Pressure: 10 bar.

• Contact Material: CrNi (stainless steel).

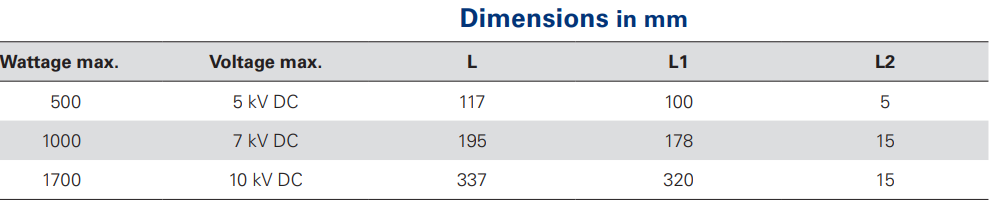

• Weight: Depends on the model number (details upon inquiry).
