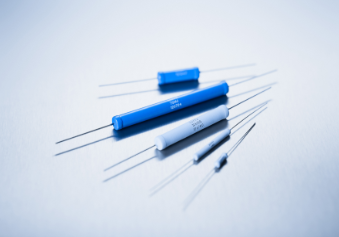

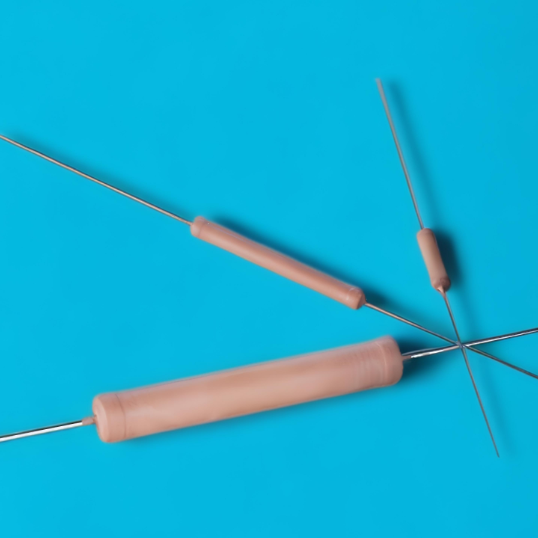

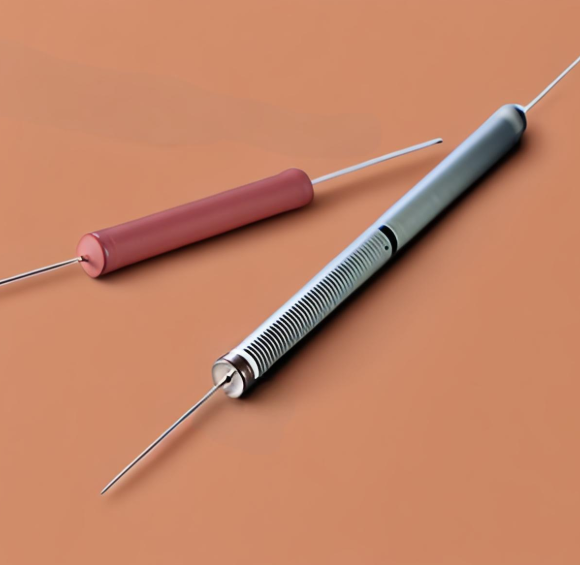

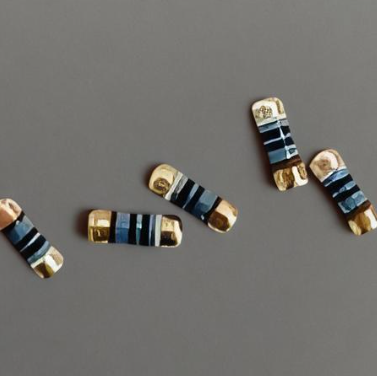

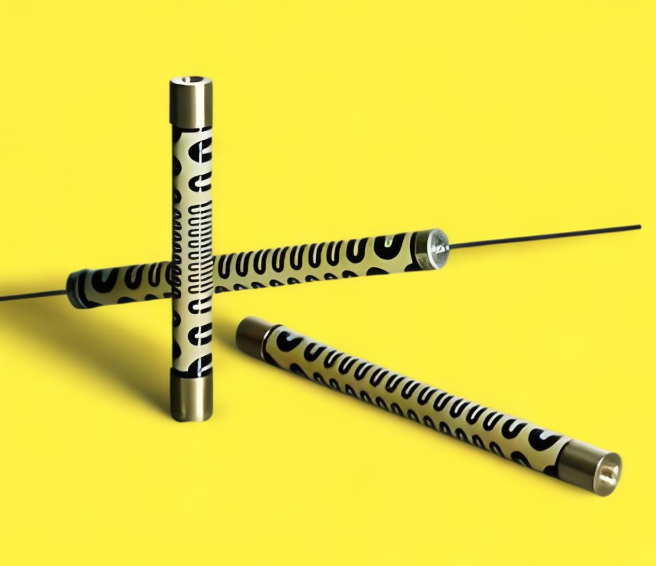

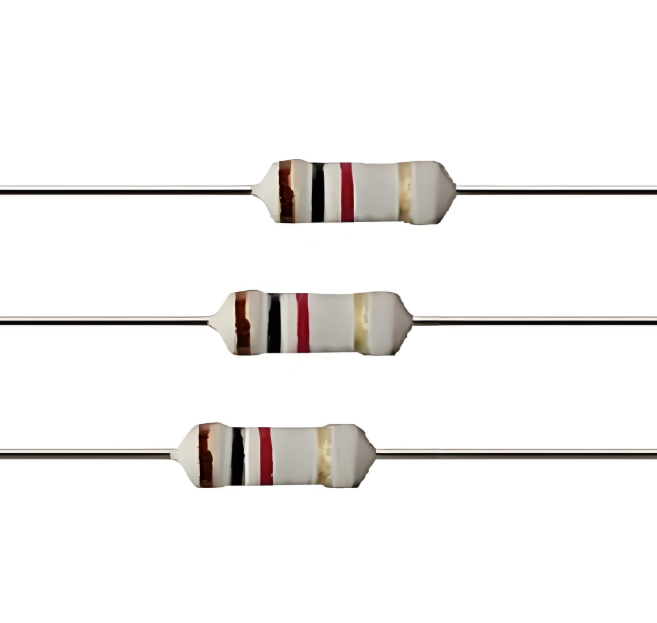

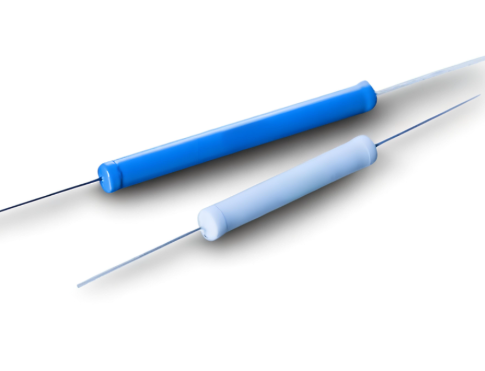

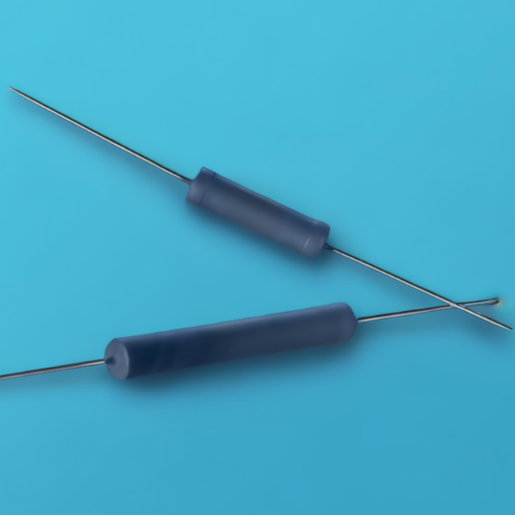

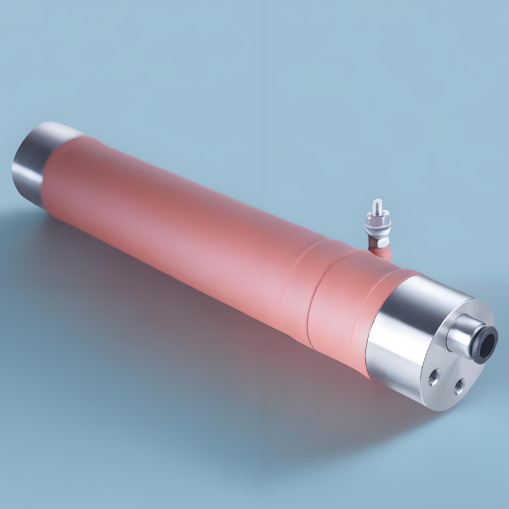

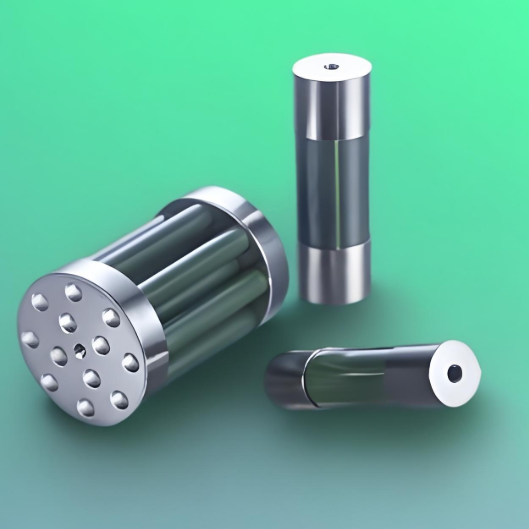

High Voltage Cylindrical Resistors

High Voltage Cylindrical Resistors are a specific type of resistors that are designed to handle high - voltage applications and have a cylindrical shape. They are electrical components used to control the flow of electric current in a circuit while withstanding significant voltage levels. The cylindrical form factor provides certain mechanical and electrical advantages, such as ease of installation in various setups and efficient heat dissipation along the cylindrical surface.

1. Construction and Materials

• Resistive Element: The core of these resistors is the resistive element, which is usually made of materials with high resistivity such as metal oxides (like nichrome), carbon composites, or wire - wound materials. The choice of material depends on factors such as the required resistance value, power - handling capacity, and voltage tolerance. For example, wire - wound resistors are often used when a precise resistance value and high - power handling are needed. The wire used in wire - wound resistors can be alloys like manganin or constantan, which have stable resistance over a wide range of temperatures and voltages.

• Insulation: Given their high - voltage application, excellent insulation is crucial. The resistors are typically encapsulated with insulating materials such as ceramic, epoxy resins, or a combination of both. Ceramic provides high - temperature stability and good electrical insulation properties. Epoxy resins can offer additional mechanical strength and protection against environmental factors like moisture and dust. The insulation layer not only protects the user from electrical shock but also prevents current leakage between the resistive element and the external environment or other components in the circuit.

• Terminals: Cylindrical resistors have terminals at both ends to connect to the circuit. These terminals are usually made of metal (such as copper or brass) and are designed to provide a reliable electrical connection. They are often plated with materials like tin or gold to prevent oxidation and ensure good conductivity over time.

2. Electrical Characteristics

• High - Voltage Tolerance: High Voltage Cylindrical Resistors are engineered to withstand voltages that can range from several kilovolts to hundreds of kilovolts, depending on the specific design and rating. This high - voltage tolerance allows them to be used in applications such as power transmission and distribution systems, high - voltage testing equipment, and X - ray machines.

• Resistance Value and Tolerance: They have a specific resistance value, which can vary widely depending on the application requirements. The resistance value is measured in ohms (Ω) and can range from a few ohms to several mega - ohms. Additionally, like all resistors, they have a tolerance rating that indicates the allowable deviation from the specified resistance value. For example, a resistor with a 10% tolerance means that the actual resistance value can be within 10% of the stated value.

• Power - Handling Capacity: These resistors also have a power - handling capacity, which is the amount of electrical power they can dissipate without overheating or getting damaged. It is measured in watts (W) and is determined by factors such as the physical size of the resistor, the materials used, and the design of the heat - dissipation mechanism.

3. Applications

• Power Transmission and Distribution: In power grids, high - voltage cylindrical resistors are used in voltage - dividing circuits, surge - protection devices, and as bleeder resistors. For example, in a high - voltage substation, they can help to measure the voltage across a high - voltage line by creating a voltage divider circuit. As bleeder resistors, they can discharge stored electrical energy in capacitors or other energy - storing components to ensure safety during maintenance or in case of a power outage.

• Industrial High - Voltage Equipment: They are used in industrial high - voltage machinery such as high - voltage motors, generators, and welding equipment. In high - voltage motors, they can be part of the starting circuit to limit the inrush current. In welding equipment, they can help to control the welding current and voltage to ensure a stable welding arc.

• Electronics Testing and Measurement: High - voltage cylindrical resistors are essential components in high - voltage test equipment such as high - voltage probes, oscilloscopes with high - voltage input capabilities, and insulation resistance testers. They help to provide accurate voltage and current measurements and protect the measuring instruments from damage due to over - voltage.

4. Advantages and Considerations

• Advantages

• Mechanical Stability: The cylindrical shape provides good mechanical stability, making them less likely to be damaged by mechanical vibrations or impacts.

• Heat Dissipation: The cylindrical geometry allows for efficient heat dissipation. The surface area of the cylinder can be used to dissipate heat more effectively than some other shapes, which is crucial for handling high - power applications.

• Versatility: They come in a wide range of resistance values, voltage ratings, and power - handling capacities, making them suitable for a variety of high - voltage applications.

• Considerations

• Size and Space Requirements: Due to their cylindrical shape and often relatively large size (especially for high - power and high - voltage ratings), they may require more space in a circuit or equipment enclosure.

• Cost: High - voltage cylindrical resistors with high - voltage and high - power capabilities can be more expensive than lower - voltage or lower - power resistors due to the use of specialized materials and manufacturing processes.
