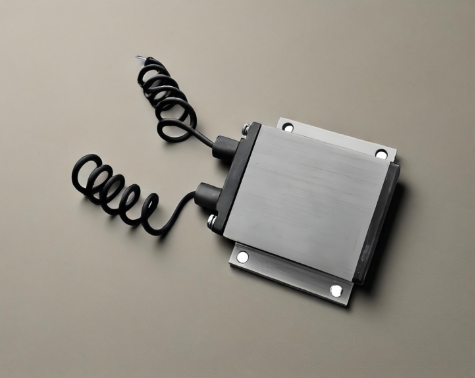

RXLG - T High voltage withstand power aluminum alloy resistor

Characteristics	Specifications	Test Methods
Short - term overload	△R ≤ ±(2%R + 0.05Ω)	√5PR for 5s
Withstanding Voltage	No mechanical damage, No breakdown flying arc	6000Vac, 1mA, 60s ± 5s
Insulation resistance	≥1GΩ	Measuring Voltage: 500 ± 50V
TCR	±260(10⁻⁶/K)	GB/T 5729 - 2003 Article 4.8
Reduce Power Loss	When the ambient temperature rises from 25°C to 250°C, the allowable load of the resistor is reduced from 100% of the rated power to 0%	-
long term life	△R ≤ ±(5%R + 0.1Ω)	1000h, 1.5h energized, 0.5h de - energized
surface temperature rise	≤210°C	GB/T 5729 - 2003 Article 4.14 rated power to achieve thermal equilibrium
