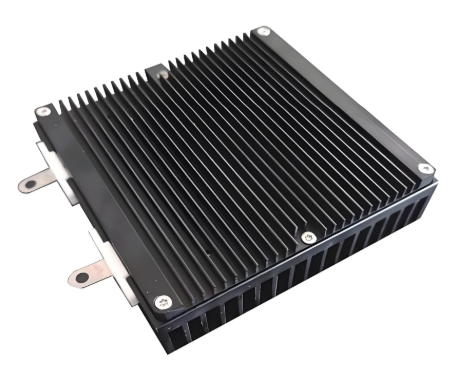

RGFL Power type air cooled module resistor

Features

Small size, high power
Small change rate of resistance value in hot state. The resistor adopts alloy foil material and has a low - temperature coefficient.
Good heat dissipation. The resistor shell is for aluminum - shell heat dissipation, suitable for air - cooled environments.
Strong corrosion resistance. The shell is made of 6063 - T0 aluminum, with an anodized surface and optional color.
Module connection: Adjust the power demand by adding or subtracting resistor modules.

Technical Specifications

Parameter	Unit	Value
Rated Power	/	2kW
Standard Resistance	Ω	0 - 100Ω
Weight	g	≤600
Insulation resistance	MΩ	DC500V, >10MΩ
Withstanding Voltage	VAC	1500
Surface temperature rise	K	375 (wind pressure > 500Pa, air volume > 260CFM)
High Temperature Environment	/	200°C/48h
Vibration, sine wave, 10 - 500Hz, peak	G	10

Product application

The product can be used in new energy vehicles, new energy buses, converter equipment, military field, test load field, etc. Matched with DC fans, the product is more than half the volume of traditional products.

LINE

WECHAT

SKYPE

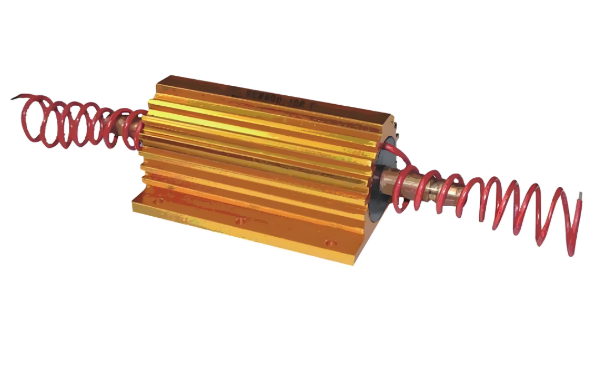

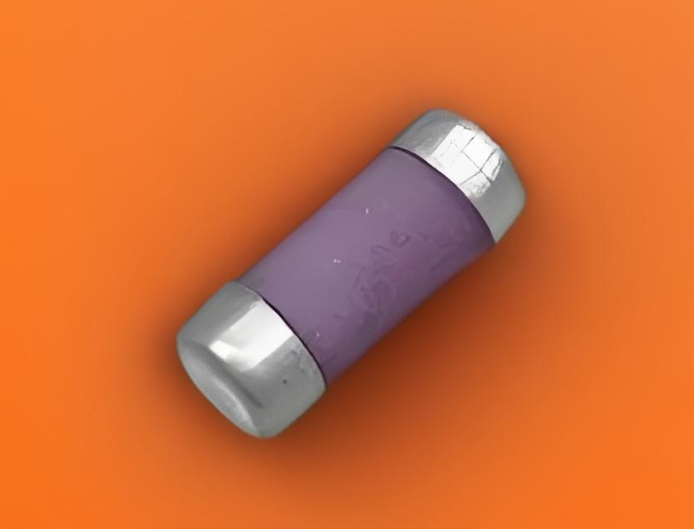

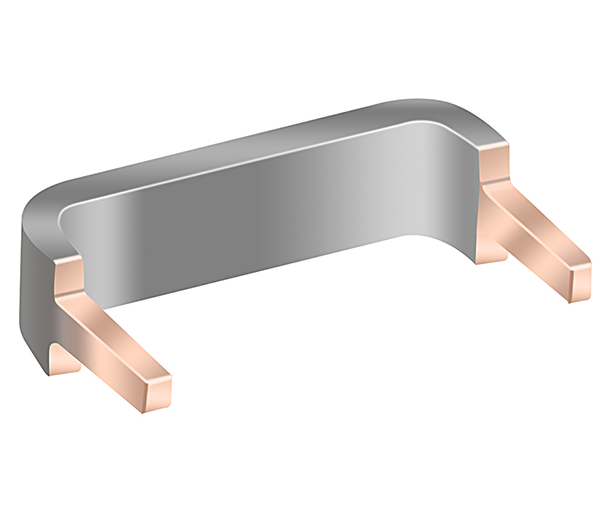

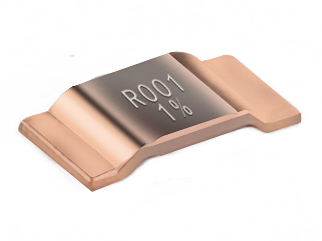

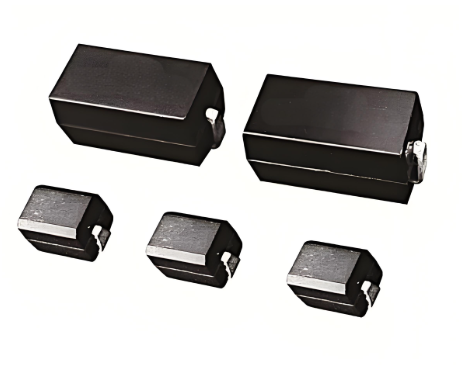

In addition to RGFL Power type air cooled module resistor, we also focus on the following resistors:
