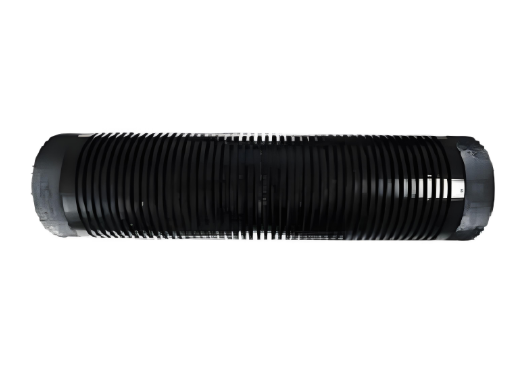

RXLG - A (RXG) high power aluminum alloy resistor

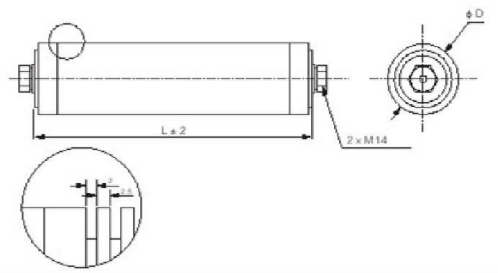

Dimensions (mm)

Type	Dimensions(mm)
	L	D
RXLG - A(RXG) 200	165	51
RXLG - A(RXG) 300	165	66
RXLG - A(RXG) 400	270	51
RXLG - A(RXG) 600	270	66
RXLG - A(RXG) 800	270	85

Performance

Type	Power (W)	Resistance range	Power rush (W)	Dielectric strength (V)	Insulation resistance (MΩ)
RXLG - A(RXG) 200	200W	2R7 - 33KΩ	300W	6000	≥1000
RXLG - A(RXG) 300	300W	2R7 - 33KΩ	400W	6000	≥1000
RXLG - A(RXG) 400	400W	2R7 - 47KΩ	600W	6000	≥1000
RXLG - A(RXG) 600	600W	2R7 - 47KΩ	800W	8000	≥1000
RXLG - A(RXG) 800	800W	2R7 - 51KΩ	1000W	8000	≥1000

Performance

Characteristics	Specifications	Test Methods
Dielectric strength	No electric breakdown or arcover	40 - 60Hz AC, leakage current 0.5mA, P<sub>n</sub>, Time: 1min ± 5s
Short time overload	No invisible damage, clear mark △R≤ ±(2%R + 0.05Ω)	3P<sub>n</sub>, 5S
Vibration	No clear mechanical damage △R≤ ±(1%R + 0.05Ω)	10 - 500Hz, 0.75mm, 98m/s², 3h
Bump	No clear mechanical damage △R≤ ±(1%R + 0.05Ω)	245m/s², 40 - 80 times/min, 2000 times
Thermal shock	No invisible damage, clear mark △R≤ ±(2%R + 0.05Ω)	P<sub>n</sub>, 30mins, - 40°C, 15mins
Load life	△R≤ ±(5%R + 0.05Ω)	P<sub>n</sub>, 1000h, 1.5h on, 0.5h off
